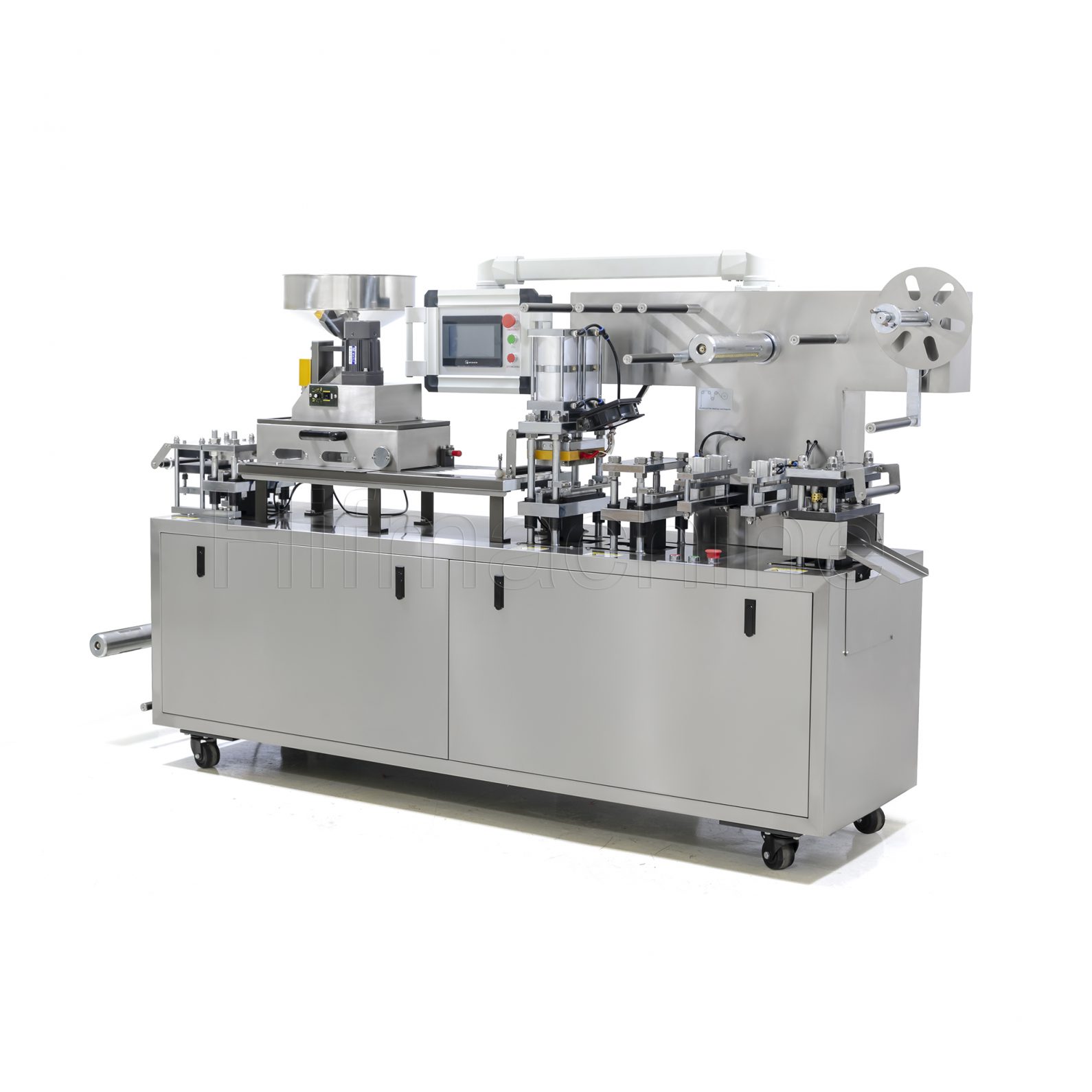

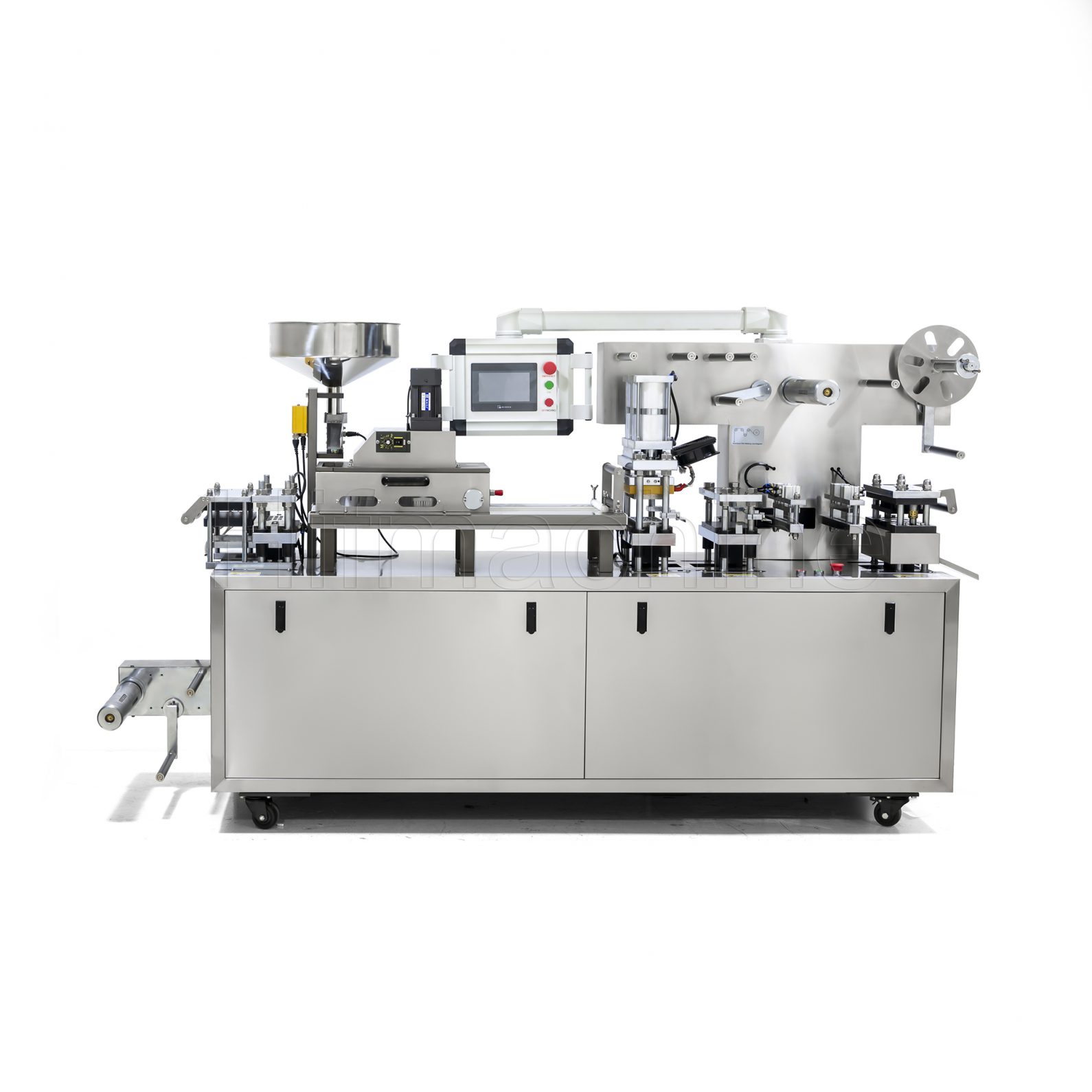

Blister Packing Machine DPP-140

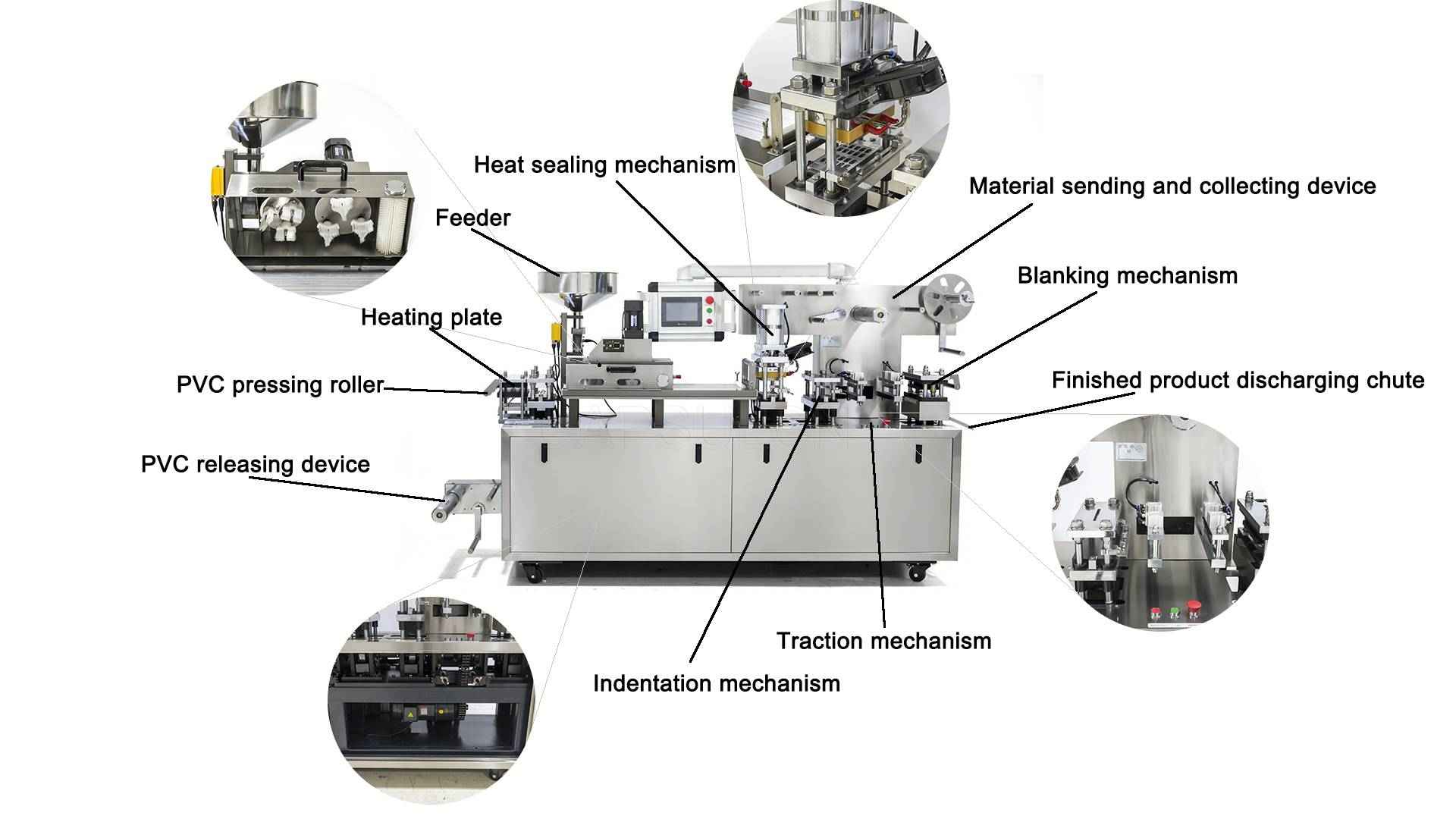

DPP-140 is a flat-type aluminum-plastic blister packaging machine that integrates PVC feeding, heating and forming, PTP feeding, sealing, batch number printing, creasing line making, etc. It is suitable for packaging a variety of medicines such as capsules, tablets, sugar-coated tablets, honey pills, injections and ampoules.

Blister Packing Machine DPP-140

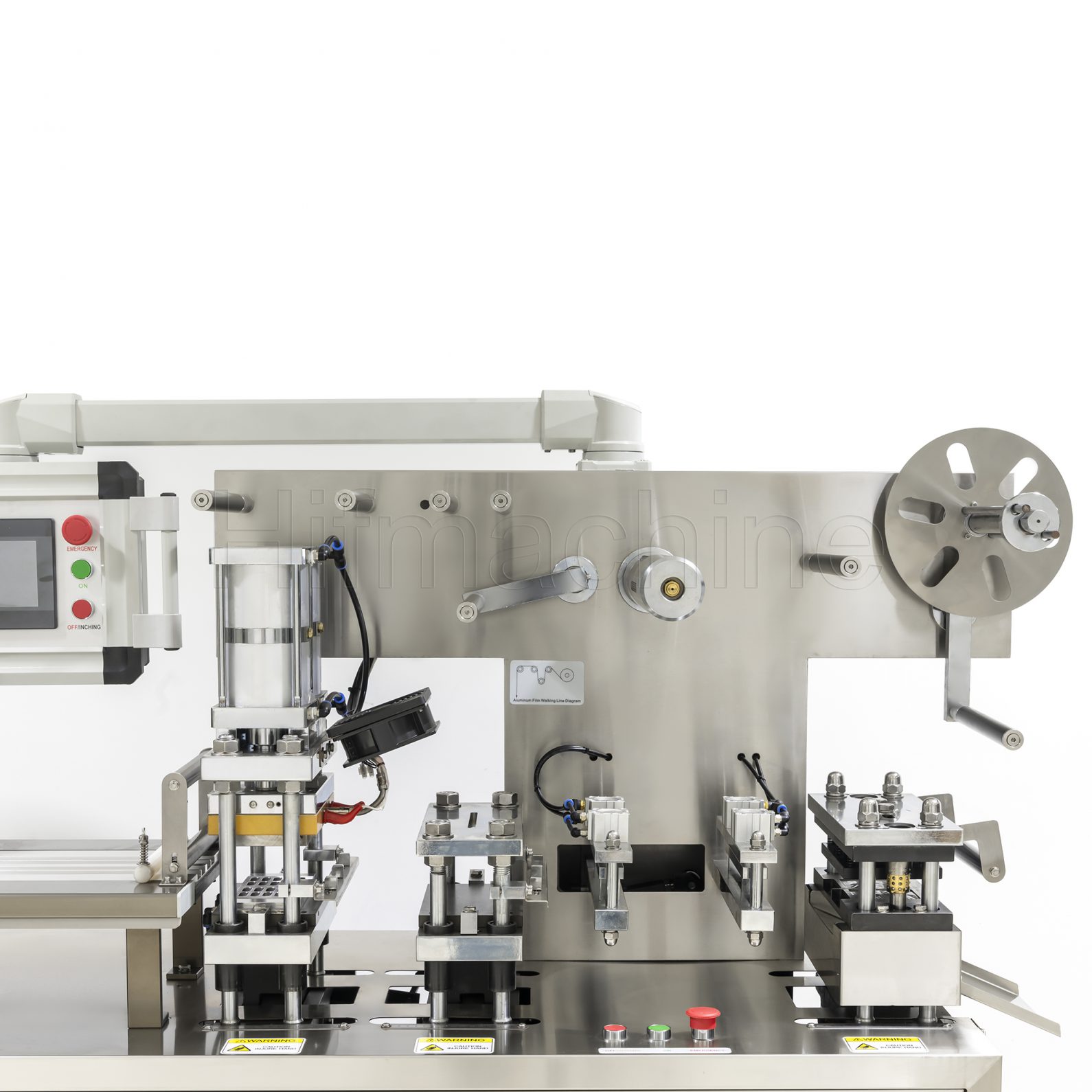

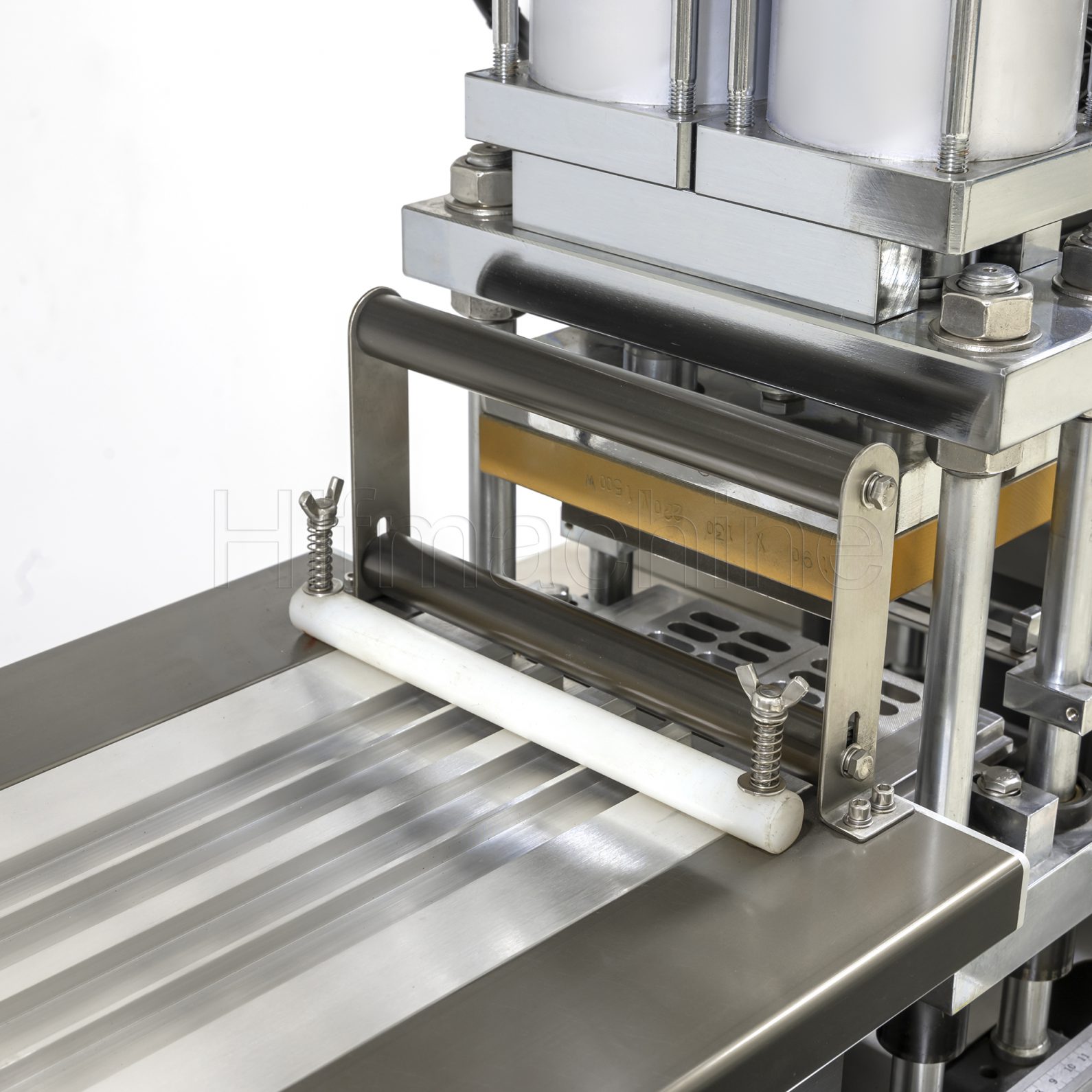

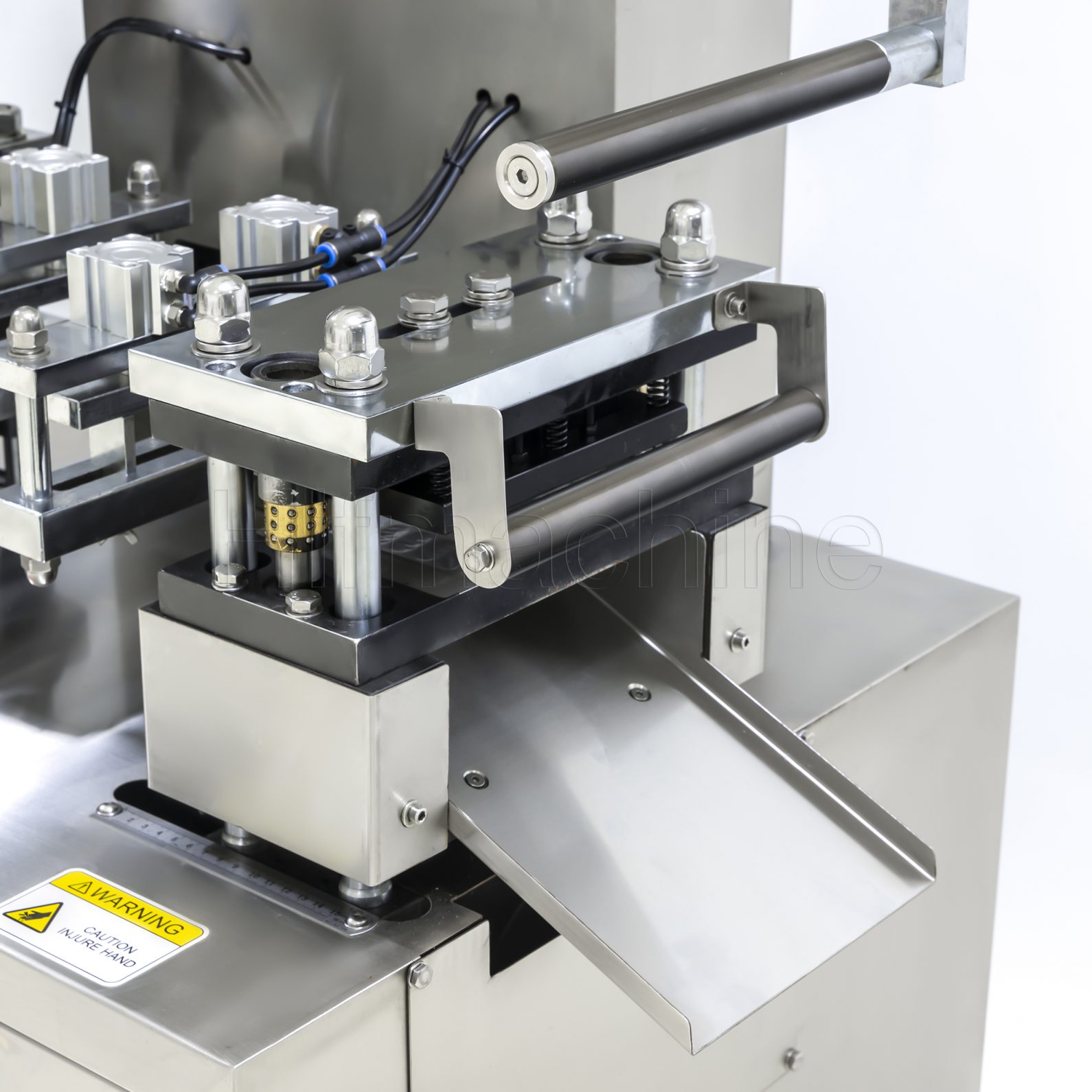

The DPP-140 aluminum-plastic blister packaging machine uses a flat heating plate for heating, and heats the PVC sheet to about 105°C through positive pressure to form the desired shape. The equipment can complete a series of actions such as heat sealing, batch number printing, creasing line pressing, automatic conveying, slicing and cutting, and automatic shutdown alarm. It is equipped with a variable frequency stepless speed regulation function, and the punching frequency can reach 10~55 times/minute. Using a spiral rod drive device, the packaging size of various sheets can be adjusted at will on the machine base rail as needed. The pneumatic roller traction device is controlled by PLC, with a simple structure and accurate operation, and the traction stroke can be adjusted within the range of 10 to 500 mm.

Request for Quote

Feature：

  • The flat heating method is adopted to ensure uniform heating of PVC materials.
  • The variable frequency stepless speed regulation can meet the needs of different production speeds.
  • The screw drive device supports flexible adjustment of packaging size.
  • The pneumatic roller traction system is precisely controlled by PLC to improve efficiency and accuracy.

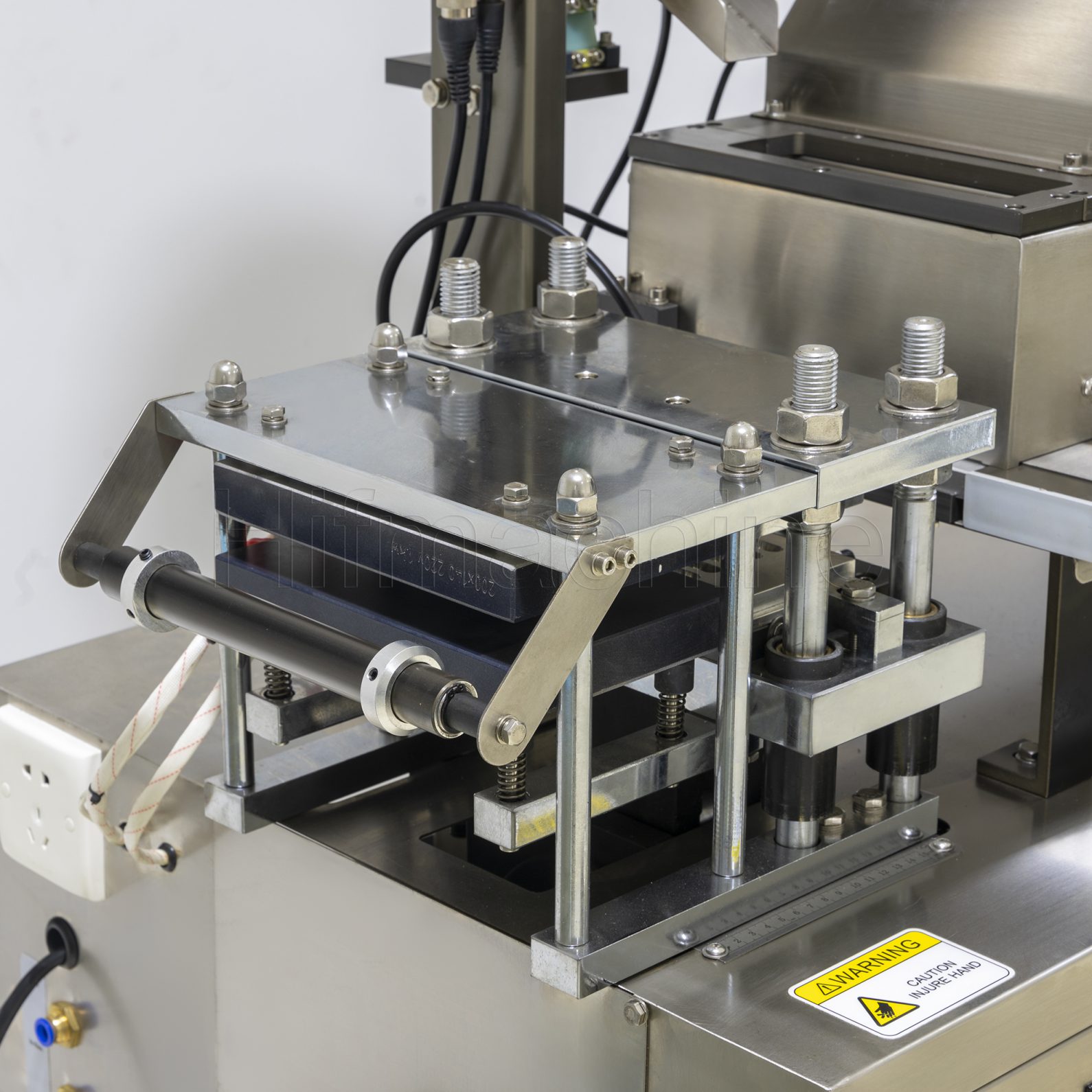

  • The positive pressure forming, heat sealing and creasing molds are easy to replace and reliably positioned.
  • The filling rate exceeds 99.5% when equipped with a universal feeder, and an optional dust suction interface can be installed to reduce dust during the feeding process.
  • The equipment is compact and light, which is easy to transport and maintain.

Simple Display：

Model DPP-140
Cutting frequency 10-50 times/min
Capacity 7200strip/h

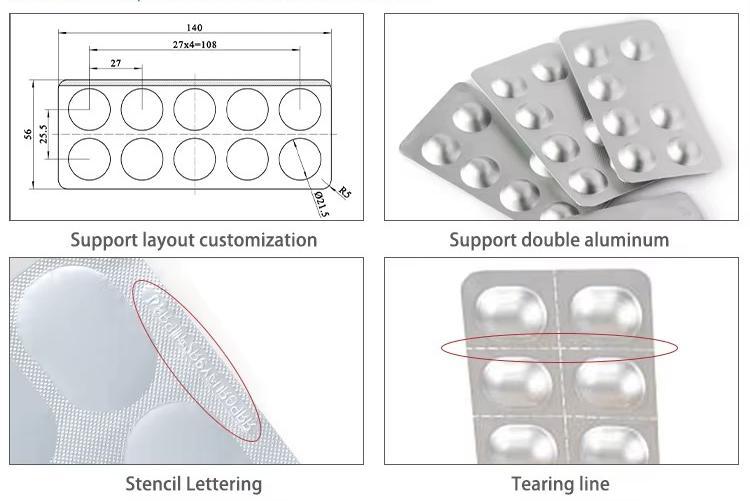

Max shaping areas and depth 140x120x28mm
Air pressure 0.4-0.6MPa
Power supply 380V/220V 50Hz
Main motor power 1.1kW
PVC hard pieces 0.15-0.5*140mm
PTP aluminum foil 0.02-0.035*140mm
Dialysis paper 50-100g*140mm
Mould cooling tap water or back water
Machine dimensions 2050mm×526mm×1320mm
Net weight 960kg
