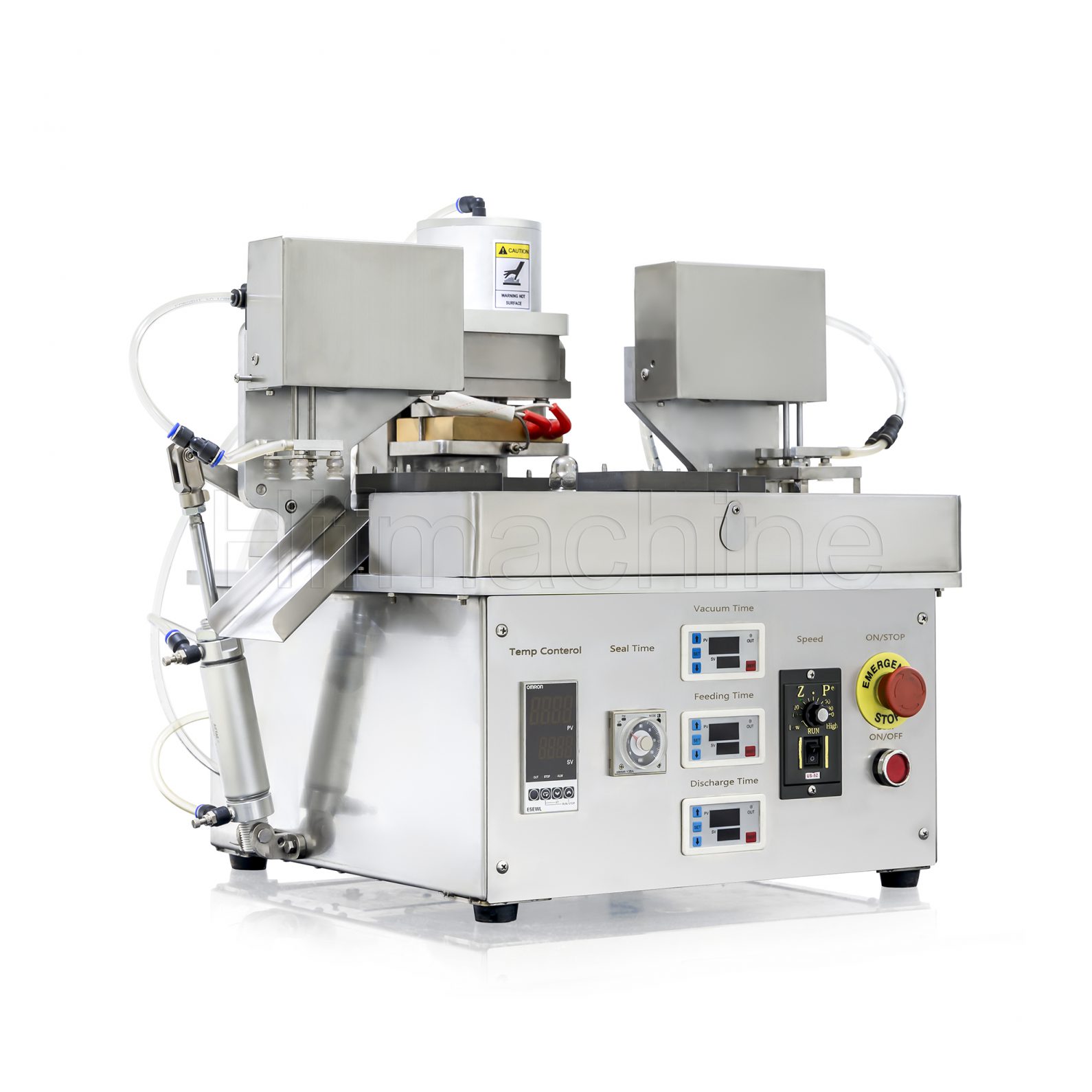

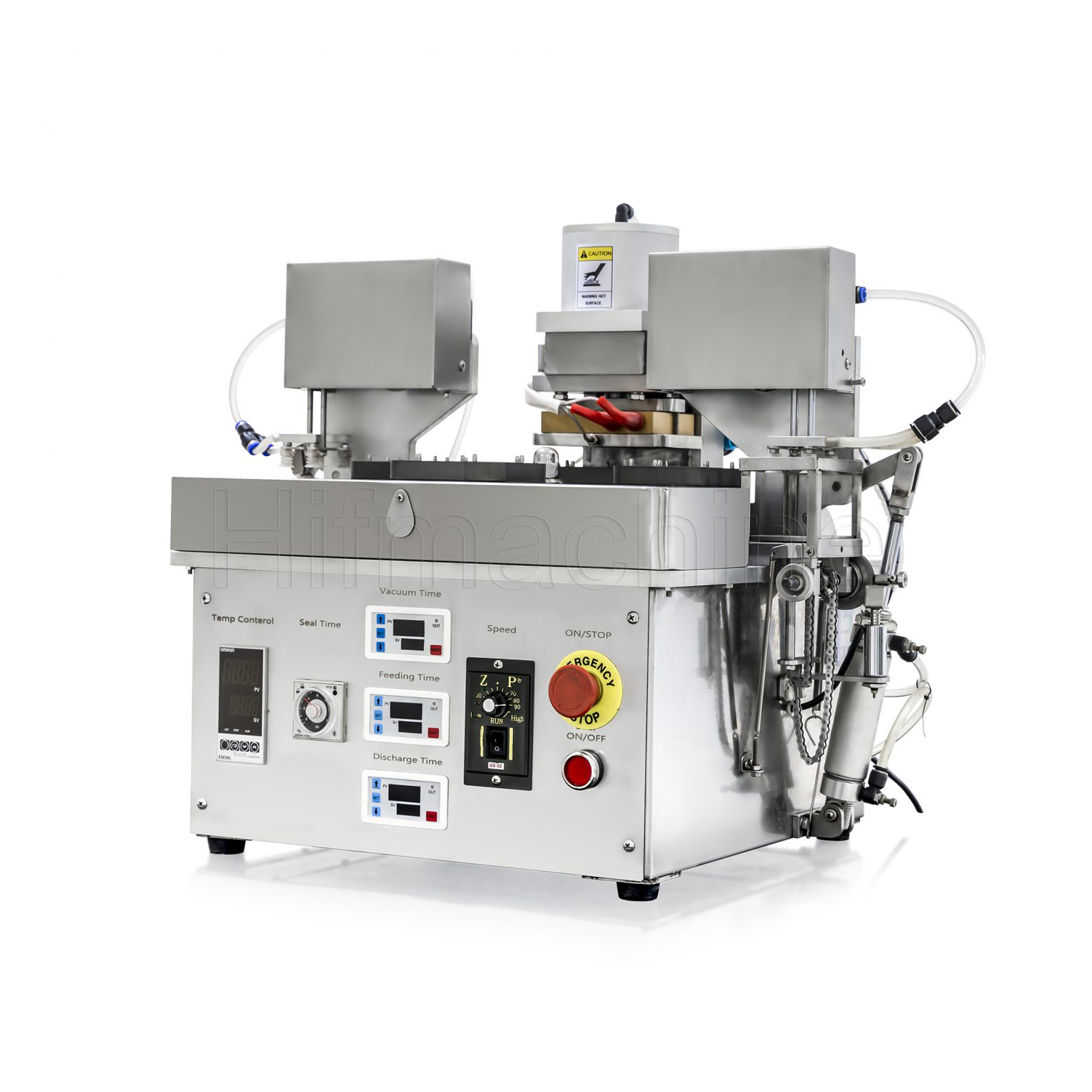

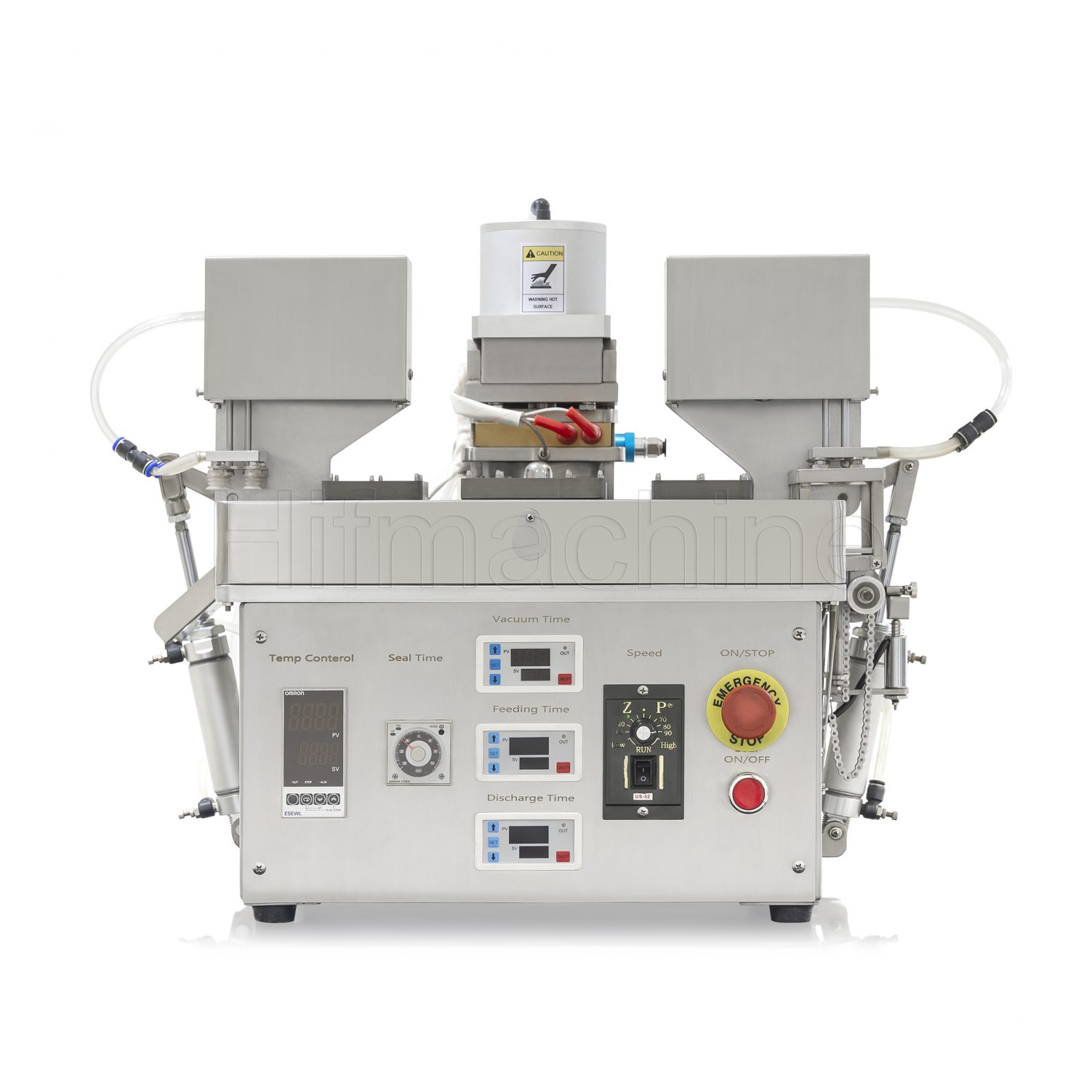

Rotary Blister Pneumatic Sealing Machine SCD-600
Rotary Blister Pneumatic Sealing Machine SCD-600

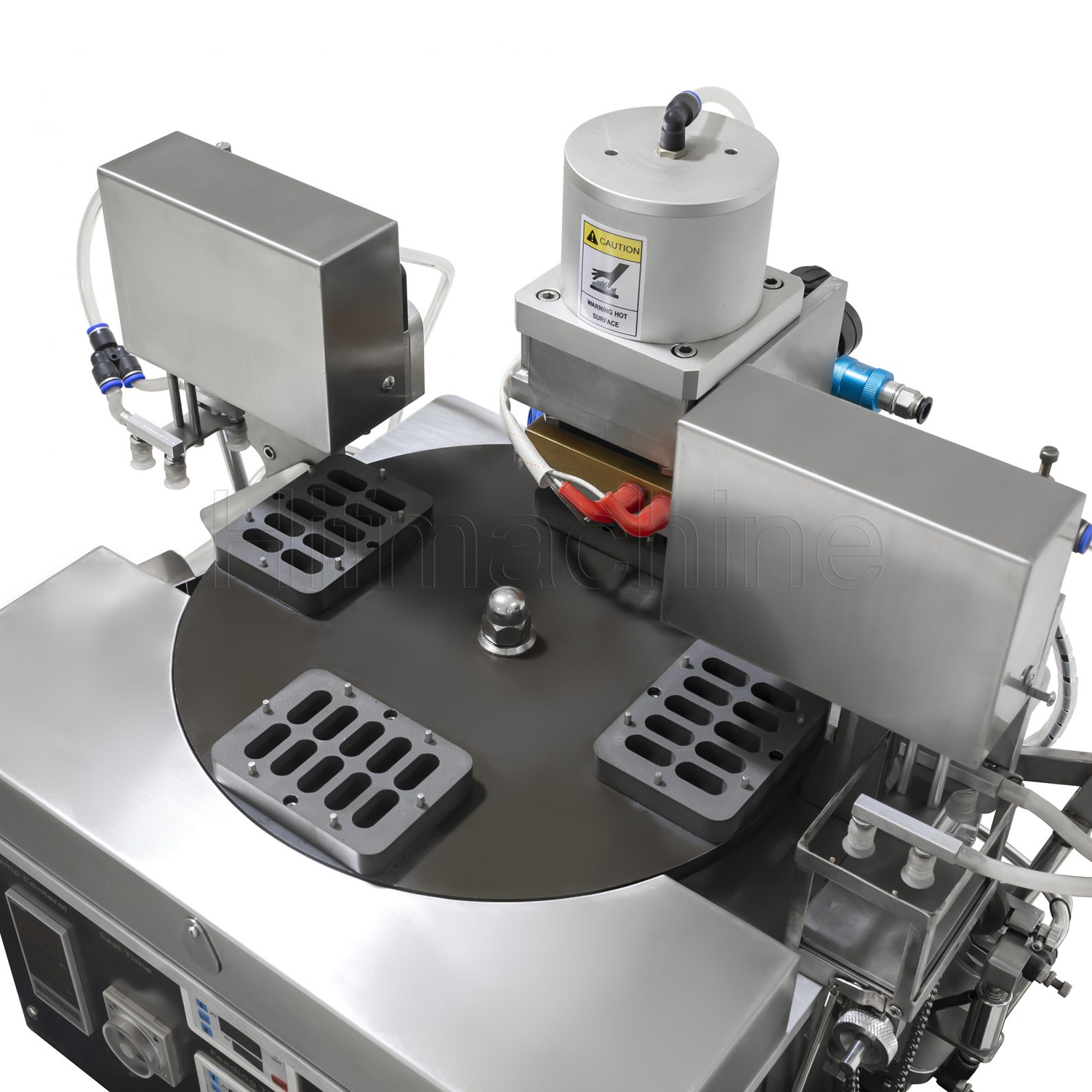

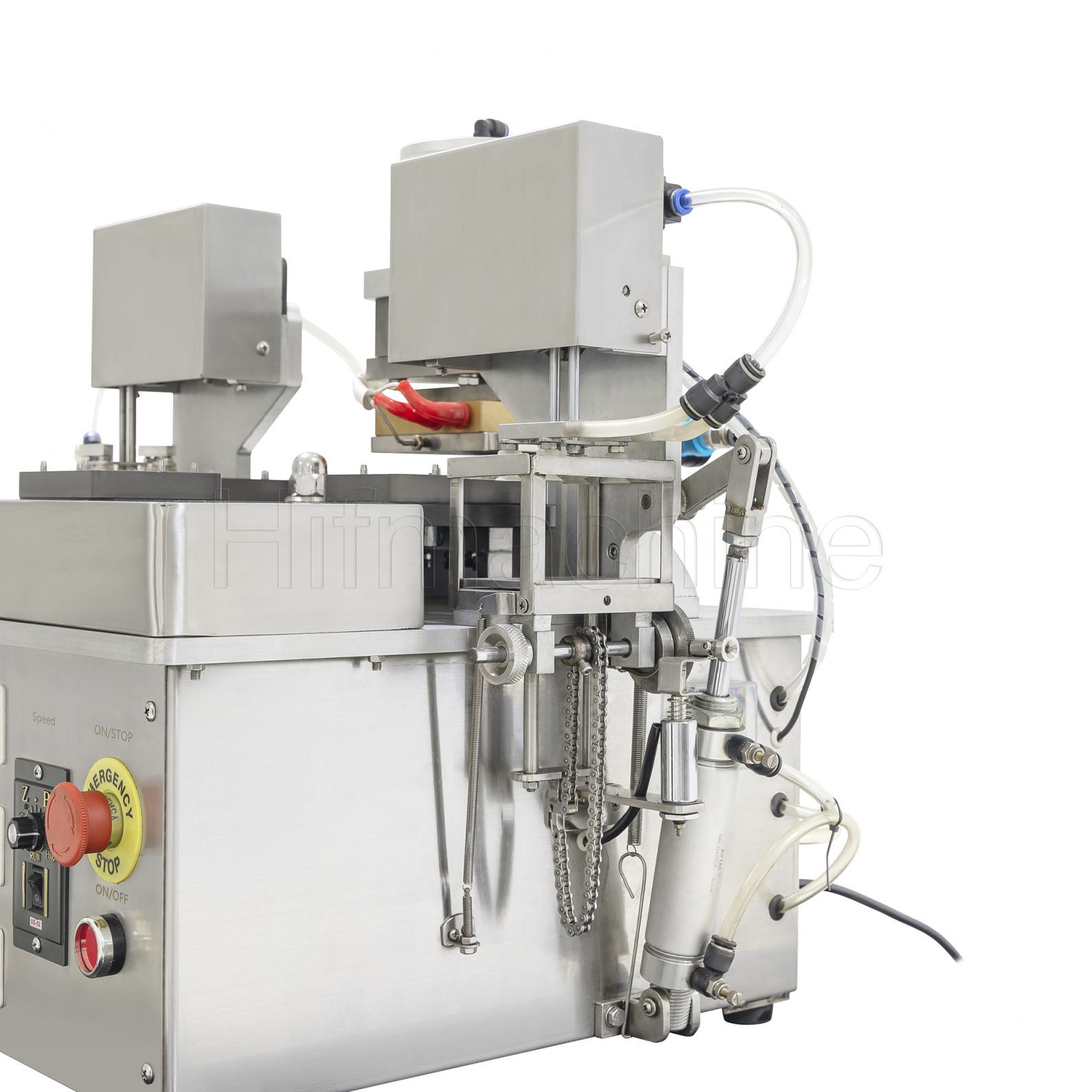

The rotary pneumatic sealing machine SCD-600 is designed with a rotating disk structure and is equipped with a reduction motor and a swing arm to complete the work steps required at each workstation. It mainly includes four actions: manual filling of blister, aluminum foil transfer, pneumatic heat sealing and instantaneous air blowing and discharge. The machine has a simple and elegant appearance and is easy to operate, making it suitable for small businesses. Its key features include a clear and concise operating interface, an intelligent temperature controller for precise temperature control, and a compact size for easy movement, made of lightweight lead alloy material.
Features
- Clear and concise interface for easy operation by customers.
- Precise temperature control using an intelligent temperature controller.
- Compact size for easy mobility, made of lightweight lead alloy material.
Rmark
- Please verify the voltage requirement stated in the machine manual.
- After using the machine, make sure to turn off the power switch and unplug the power plug.
- Use a grounded socket and ensure reliable grounding.
- Do not allow water or flammable liquids to enter the machine.
- Do not reach your hand into the machine during operation to avoid burns or injuries.
- If any abnormality is observed during operation, immediately stop using the machine and have it inspected and repaired by a professional technician.
| Model | SCD-600 |
|---|---|
| Power supply | AC 110~220V 50/60Hz |
| Heat Sealing Temperature | 100-120°C |
| Air Pressure | 0.6-0.8MPa |
| Displacement | 0.12m³/min |
| Heat Sealing Time | 4-5 seconds |
| Air Pressure Caliber | φ10mm |
| Power | 300W + 25W |
| Net Weight | 50kg |
