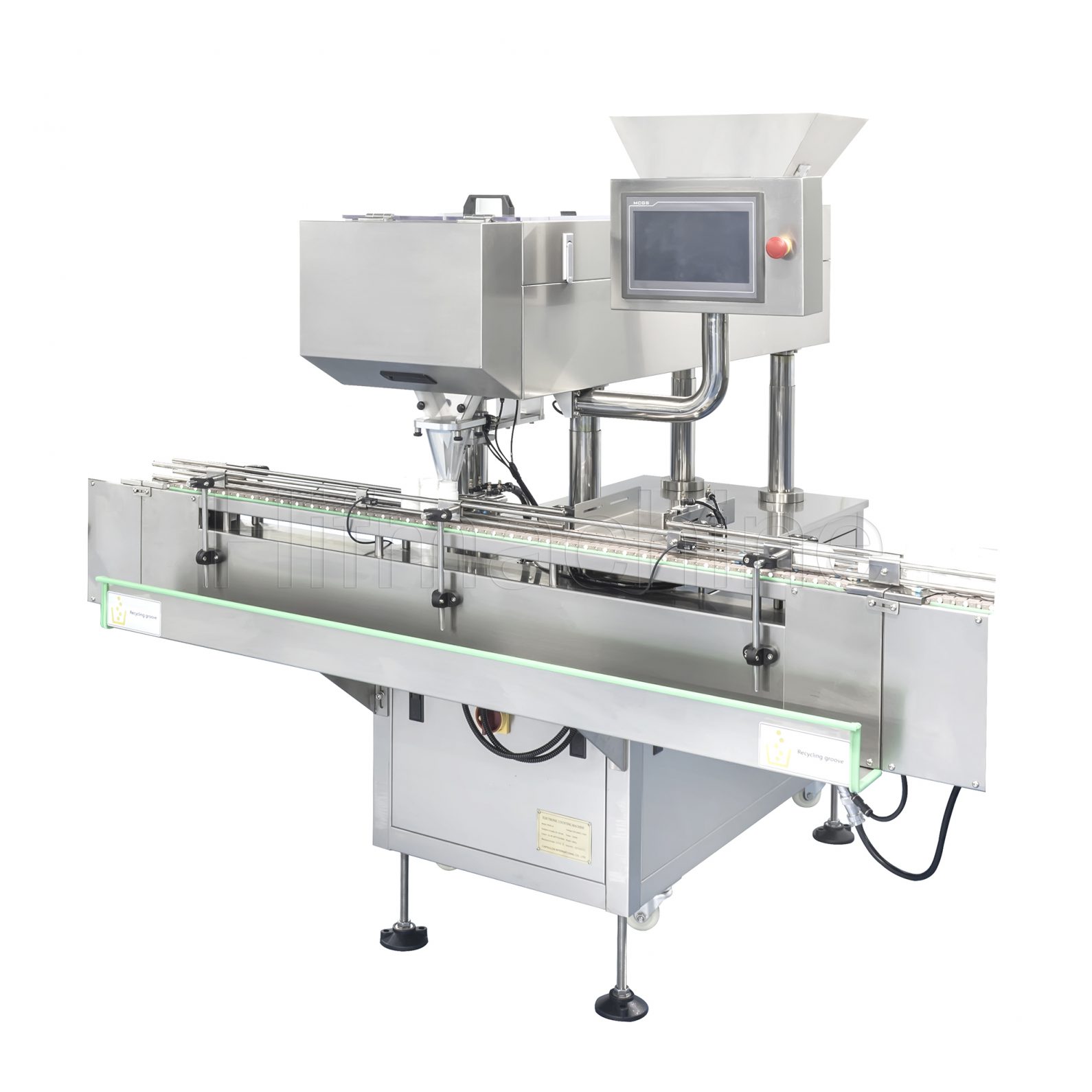

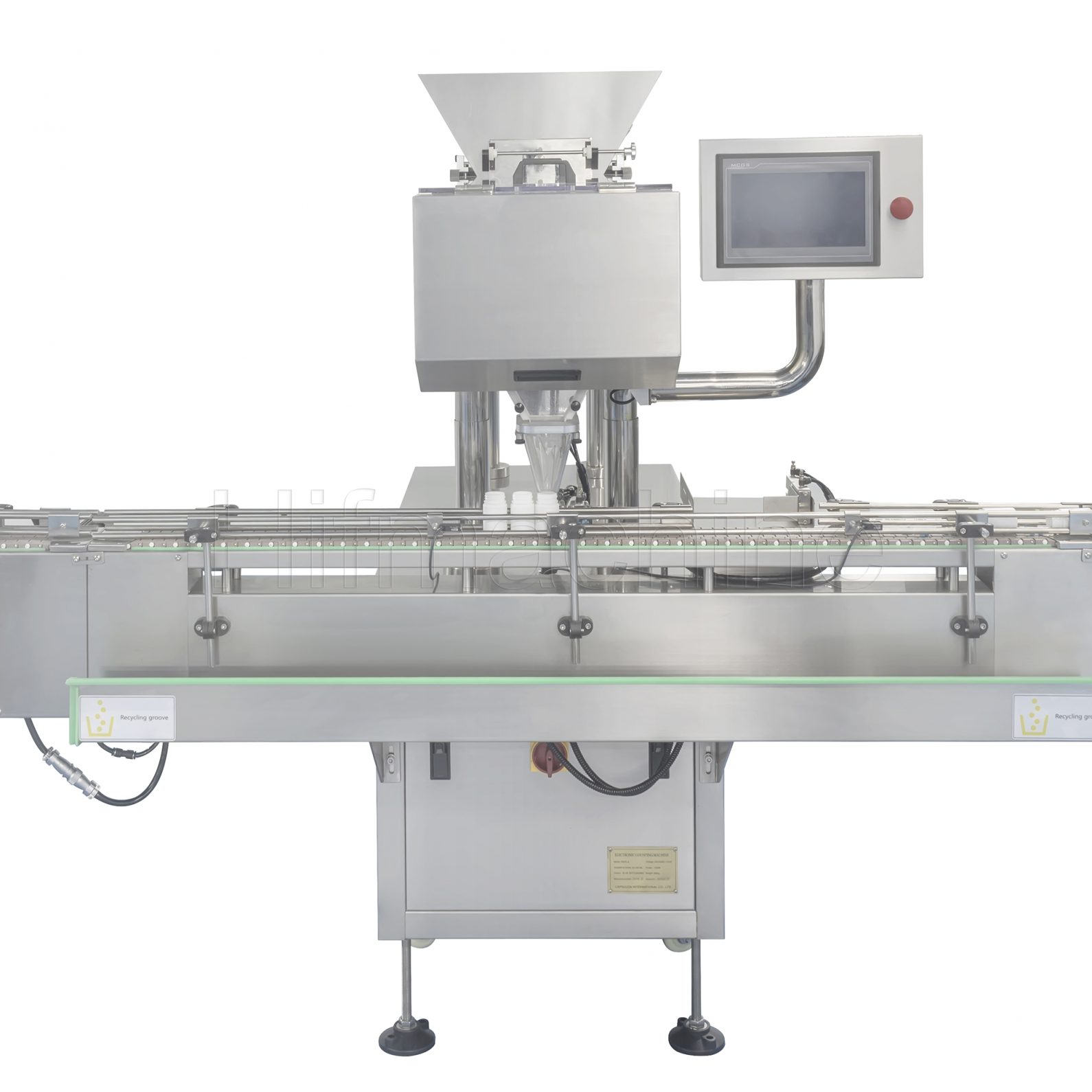

Advanced Multiple Channels Tablet And Capsule Counting Machine
Advanced Multiple Channels Tablet And Capsule Counting Machine
This machine is a intelligent automatic counting and filling machine, which is widely applied for capsule counting for big scale production in hospital, pharmaceutical factory etc.
The machine can count & fill different shapes or size of products accurately like soft gel capsules, hard capsules, tablets, sugar coating, and film coating tablets, pills, herb medicine or similar products into containers or vials.

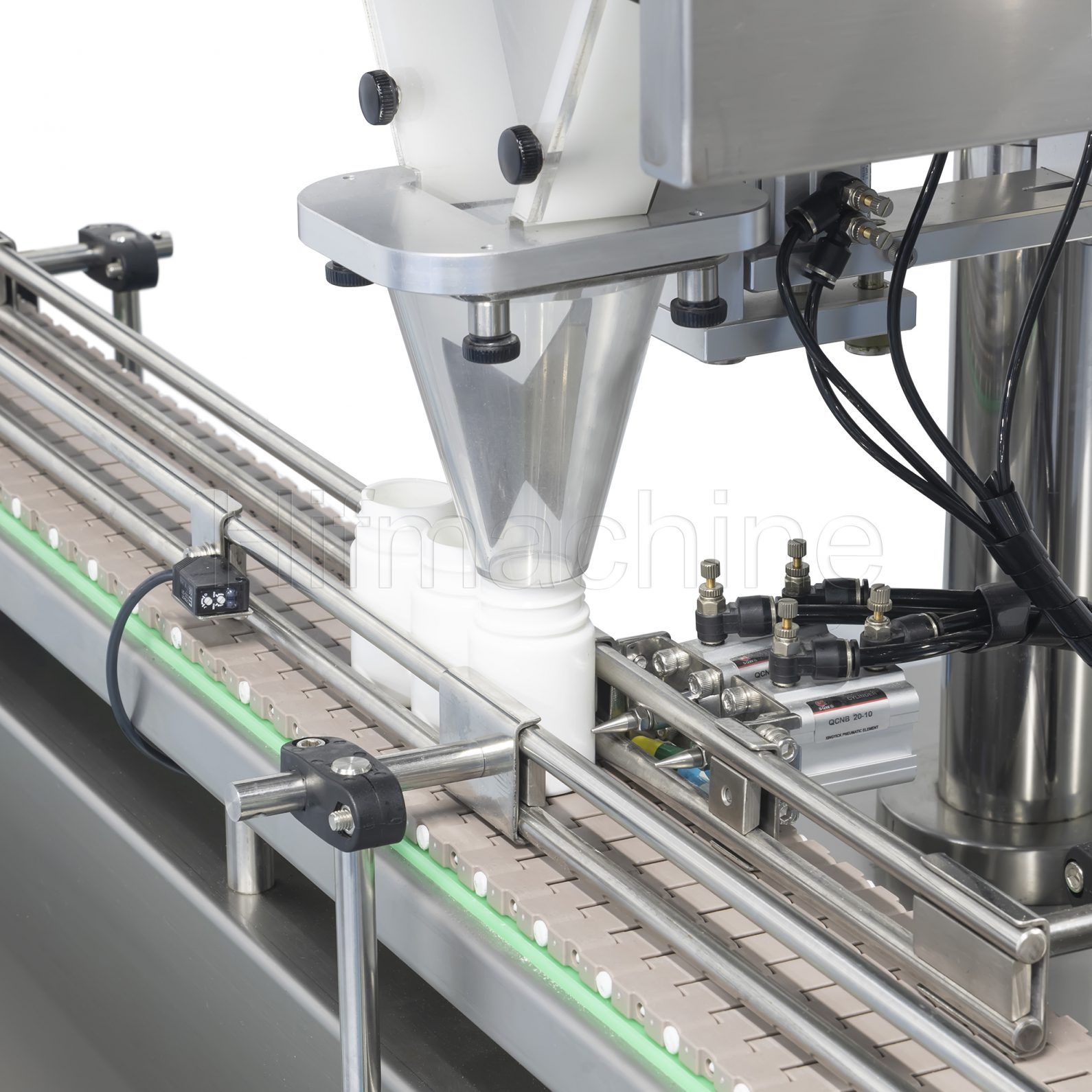

High speed PLC system controls the whole process including counting, filling and monitoring. The machine counts precisely, quickly. Put bottle by conveyer belt and fill automatically, high differentiate rate, fast responding speed.
Some accessory equipments can be connected like feeding turntable, capping machine and Labeling machine and so on.
Main features:

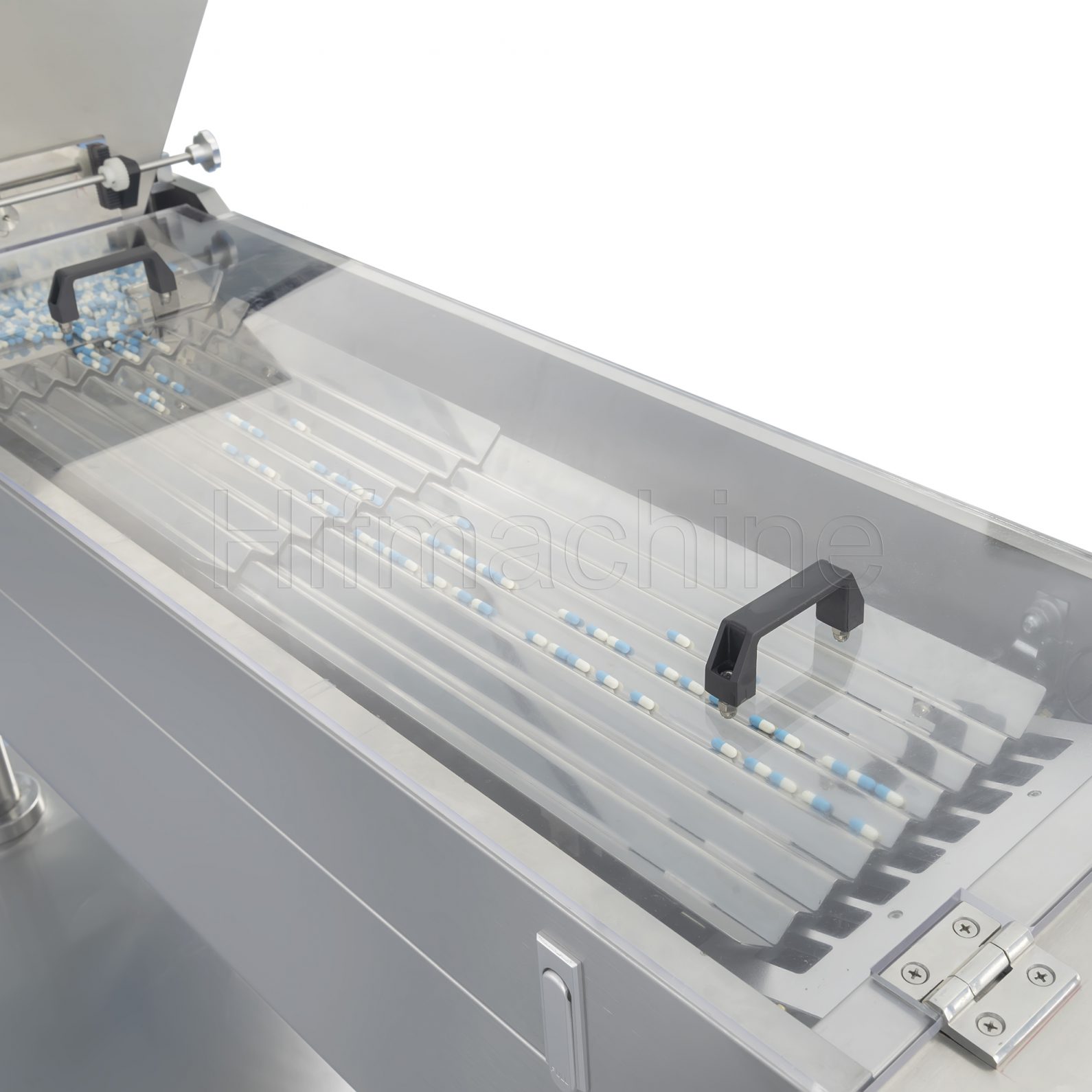

- Three-stage vibrators：With 8-channel vibration, materials are distributed more evenly.
- Reliable operation：It runs stably and smoothly with low noise.
- High dust resistance：It adopts unique anti-dust photoelectric sensor.
- Accurate counting：Due to photoelectric sensor detection and imported large PLC counting, bottle-filling error meets the international standard.
- Optional function：If special components are added, it can possess functions such as rejecting unqualified capsules or tablets and photoelectric detection alarming for lack of bottles or bottles being blocked.
- Simple operation：With intelligent design, various operating parameters can be set in advance, including at most 15 sets in memory.
- Easy maintenance：The operator only requires simple training as the disassemble, cleaning and replacement of parts are easy to carry out without the need of tools.

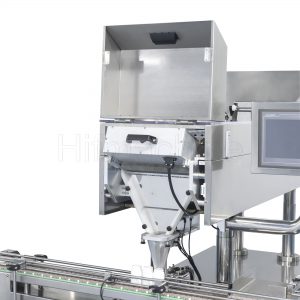

- Sealed and dustproof：It is equipped with a dust box to reduce dust pollution.
- The platform height can be adjusted according to the bottle height.
- The machine is equipped with a power supply voltage stabilizing system, so it can still work normally in areas with unstable power supply.
| Model | PBDS-8 | PBDS-12 | PBDS-16 | PBDS-24 |
|---|---|---|---|---|
| Production capacity | 10~50 bottles/ min | 20~55 bottles/ min | 60-100 bottles/ min | 80-150 bottles/ min |
| Container size | Dia.:20~100mm Height:50-100mm |
Dia.:20~100mm Height:40~200mm |
Dia.:20~100mm Height:40~220mm |
Dia.:20~100mm Height:40~220mm |
| Size of capsule/tablet | Caps: #00-#4 Tablets:Ф5.5-22mm |
Caps: #00-#4 Tablets:Ф5.5-22mm |
Caps: #00-#4 Tablets:Ф5.5-22mm |
Caps: #00-#4 Tablets:Ф5.5-22mm |
| Main power | 0.4kW | 1.5kW | 1.5kW | 1.7kW |
| Power supply | 110V 60Hz / 220V 50Hz | 110V 60Hz / 220V 50Hz | 110V 60Hz / 220V 50Hz | 110V 60Hz / 220V 50Hz |
| Weight | 450kg | 480kg | 780kg | 850kg |
| Overall dimensions | 1600x1500x1600mm | 1600x1500x1600mm | 2600x1600x1600mm | 4200x1800x1600mm |
