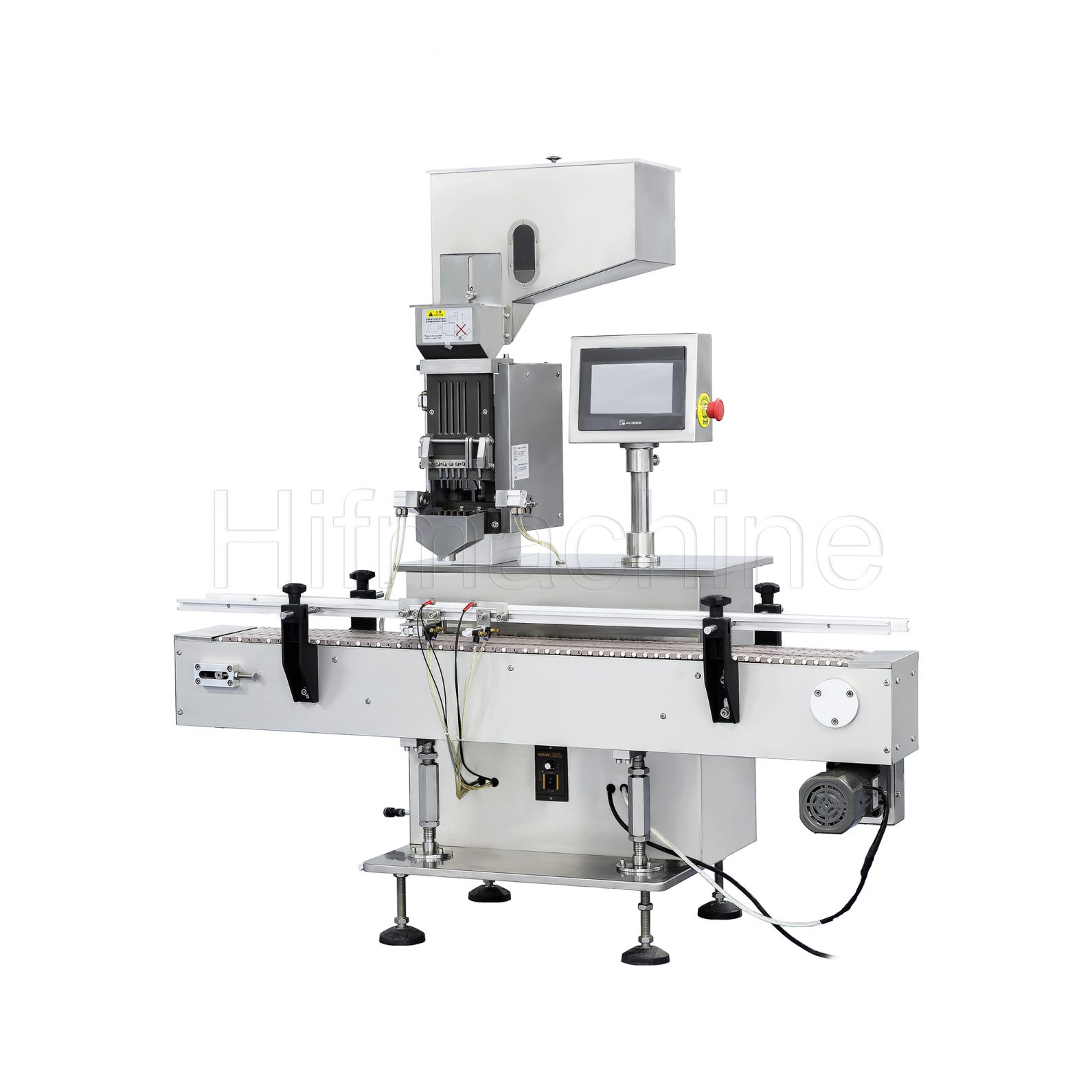

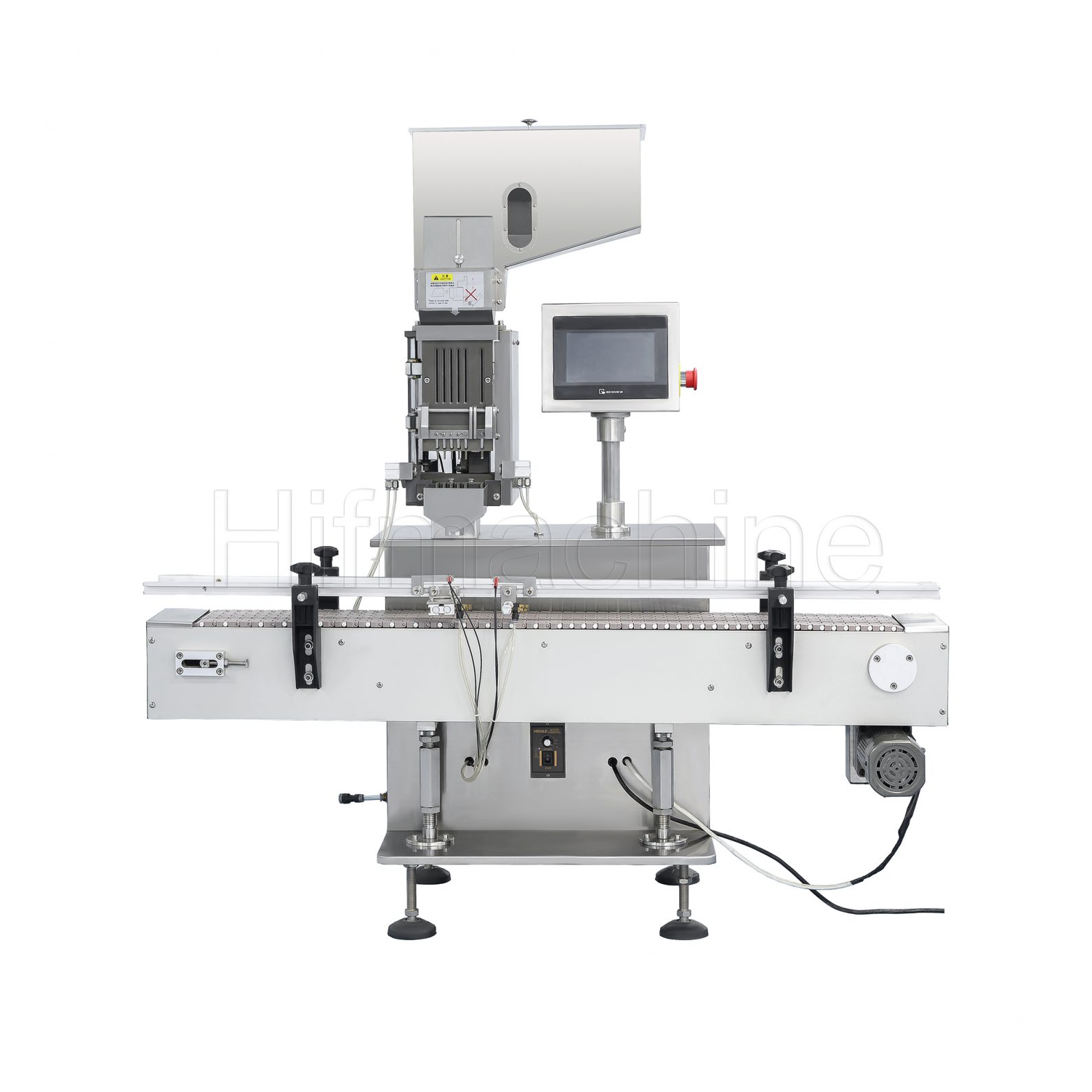

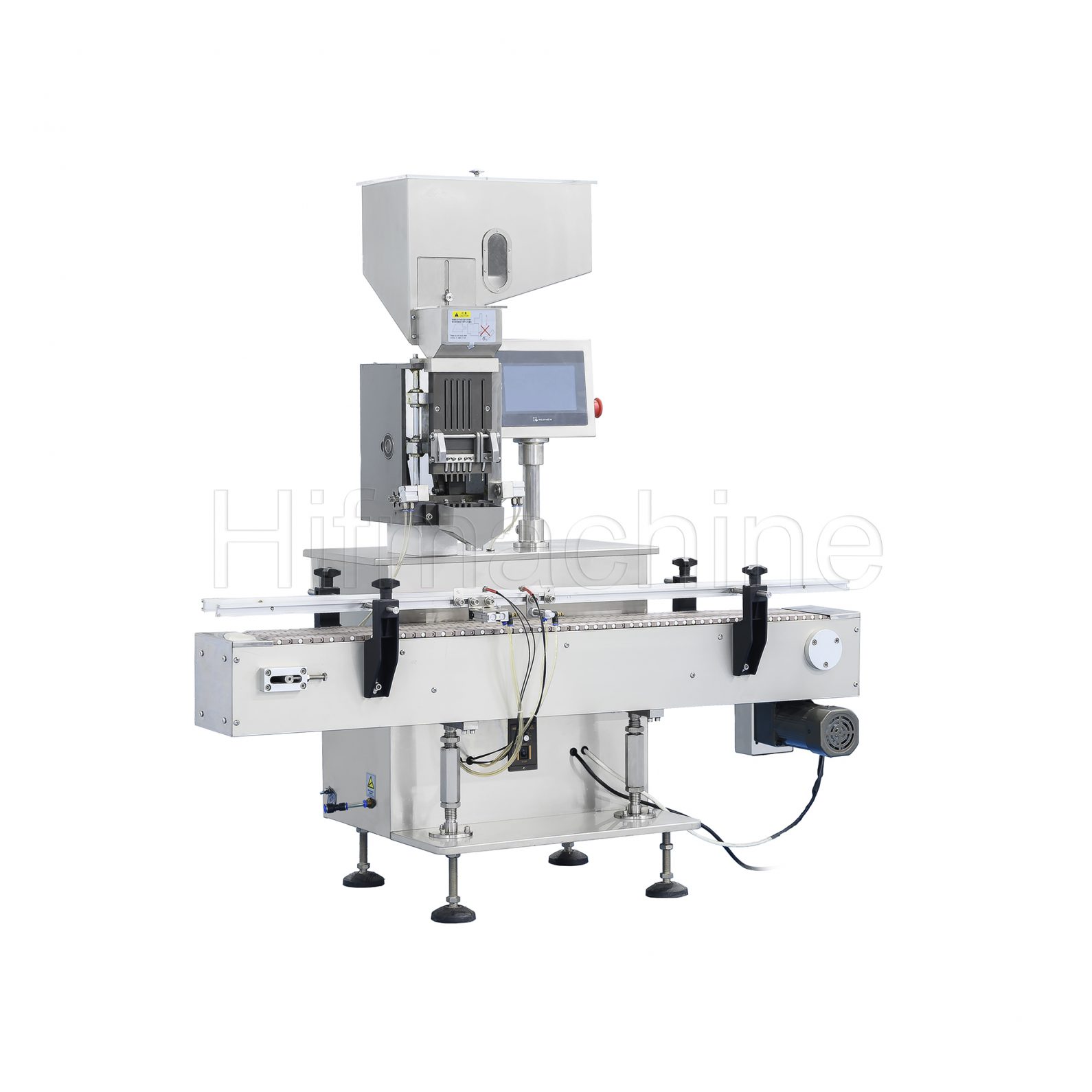

Fully Automatic Capsules Counting and Bottling Machine ZJS-A
Fully Automatic Capsules Counting and Bottling Machine ZJS-A
Fully automatic capsules counting and bottling machine ZJS-A is a intelligent automatic capsule counting and bottling machine, which is widely applied for capsule counting for small scale production in hospital, small pharmaceutical factory etc.
High speed PLC system controls the whole process including counting, filling and monitoring. The machine counts precisely, quickly. Put bottle by conveyer belt and fill automatically, high differentiate rate, fast responding speed.
Some accessory equipments can be connected like feeding turntable, capping machine and Labeling machine and so on.
Remarks

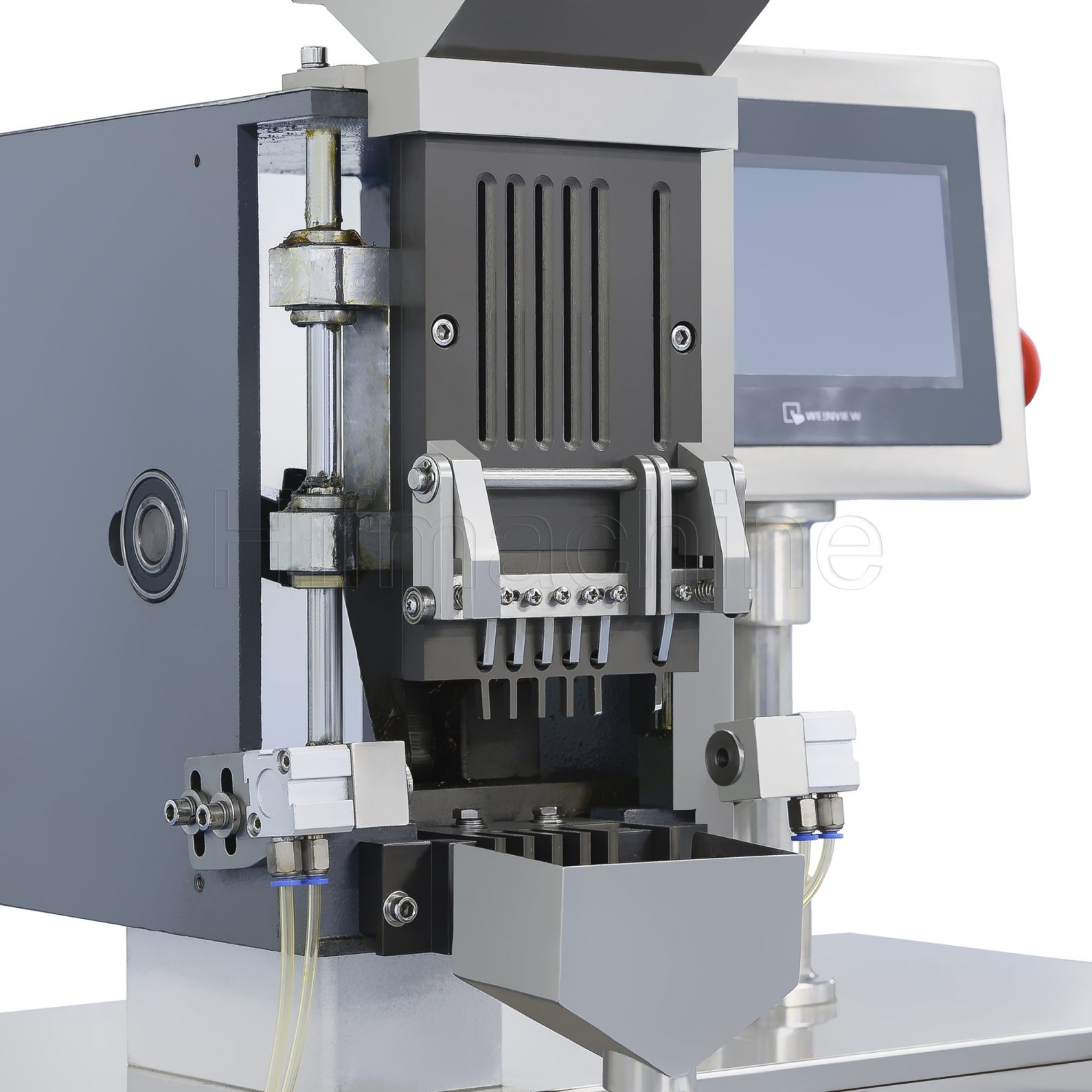

- Proprietary technology of compensated type counting with vertical track, counting precision: 100%
- Bottles are carried by conveyer belt, preserve some interfaces for connecting some accessory equipments like feeding turntable, capping machine and labeling machine and so on.

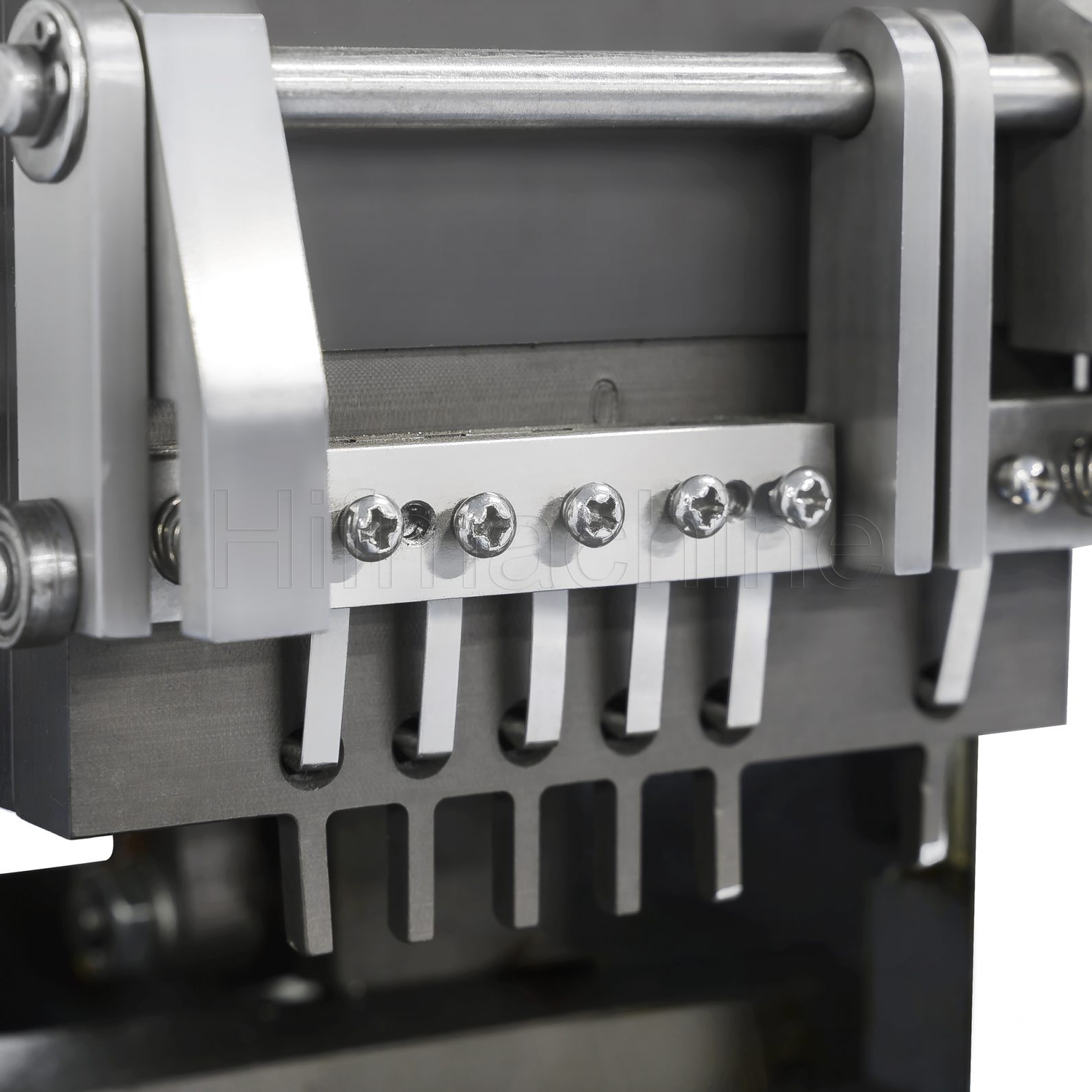

- Mould changing adopts new setup planning with straight pin, so mould changing and adjusting is only take 5 minutes.
- Working stable and low noise.
- Stainless frame and all parts connect with capsule are made of stainless steel 316, meet the GMP standard
| Model | ZJS-A |
|---|---|
| Mould Changing Time | 5 min |
| Capacity | 20,000-40,000bottles/h |
| Counting Accuracy | 100% |
| Suitable Capsule Size | 000#、00L#、00#、0L#、0#、1#、2#、3#、4# 、5# |
| Max. Bottle Diameter | 130mm |
| Power Supply | 110V 60Hz / 220V 50Hz |
| Weight | 200kg |
| Overall Dimensions | 1300x600x1400mm |
| Dimensions | 1650x800x1750mm |
