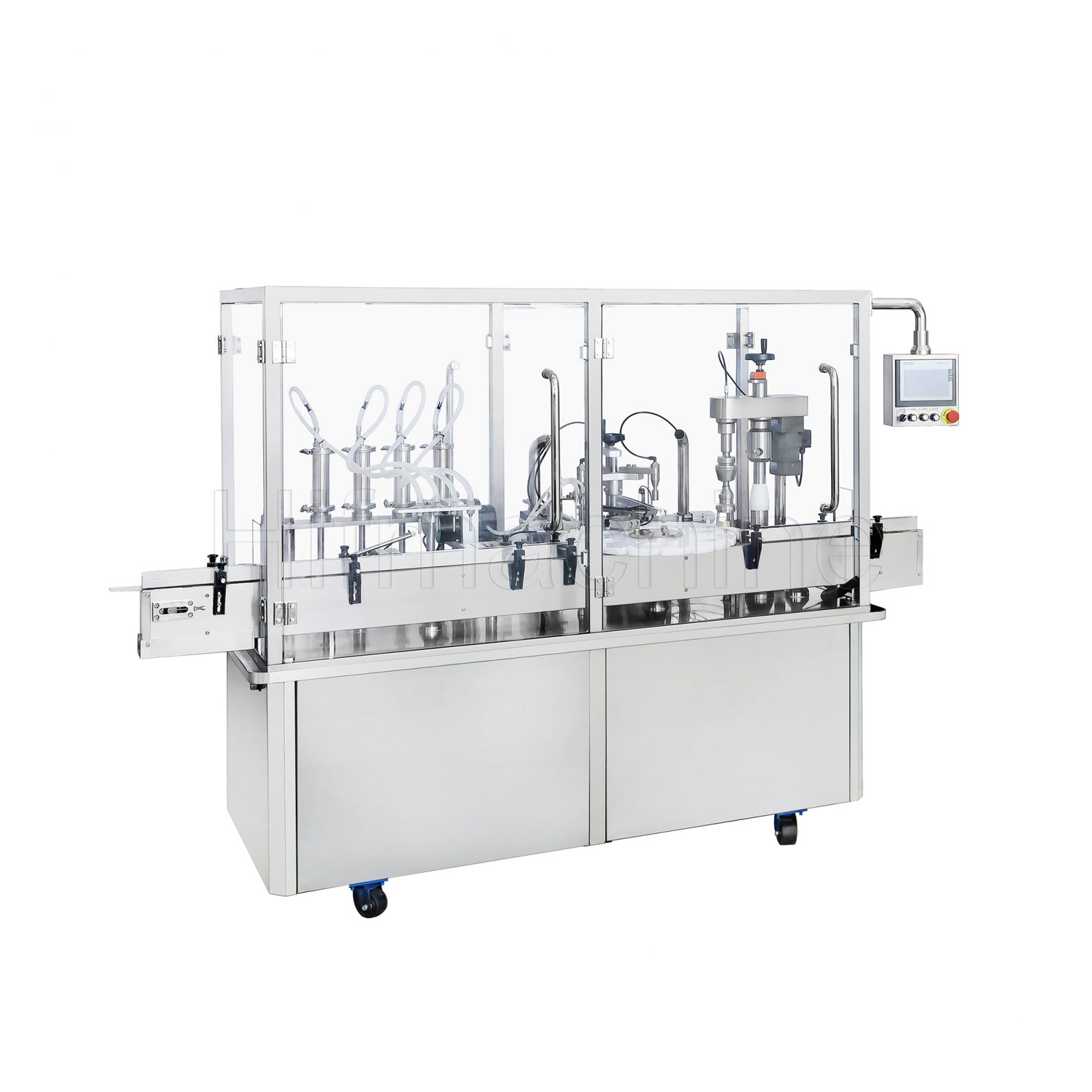

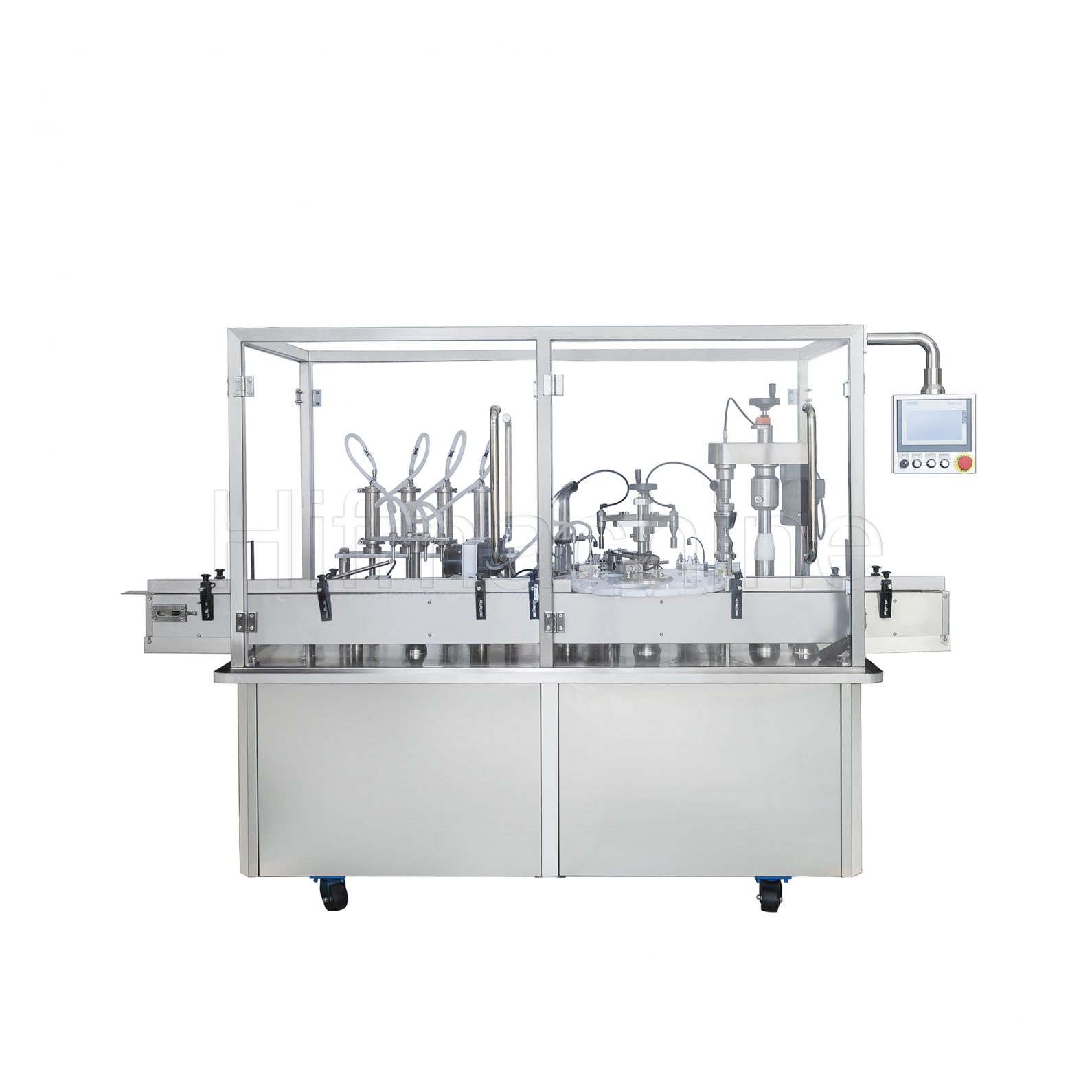

Automatic Dropper Bottle Filling & Cap Screwing Machine C4DY-2
Automatic Dropper Bottle Filling & Cap Screwing Machine C4DY-2
This type of Dropper Bottle Filling& Cap Screwing Machine is suitable for filling bottles with various moderate doese. It has two kinds of filling——linear four-head piston pump filling and double-head peristaltic pump filling. The machine finishes the cap-placing and cap-screwing with bottles in fixed position in the disc. The structure of the machine is compact and rational, and it can easily coordinate with other equipment to form a production line. The metering pump and filling head contacting with liquid are made of SAE 316L stainless steel. Please equip the air storage tank (200-300L) with the machine by yourself so that the air pressure can be stable and the stability of the pneumatic components in the machine can be in the best working condition. The machine has been equipped with a protective cover consisting of PC board and 304 stainless steel frame.

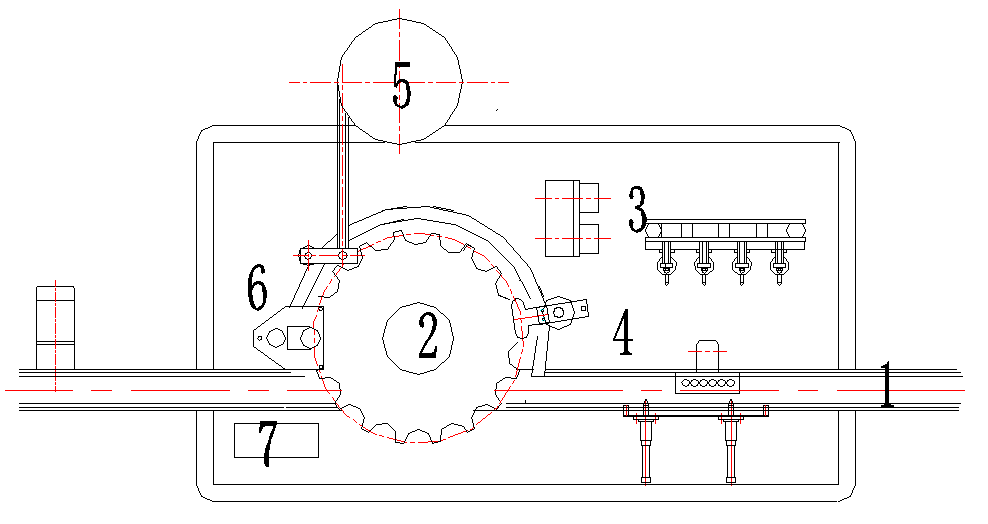

Main Parts
1.conveyor belt

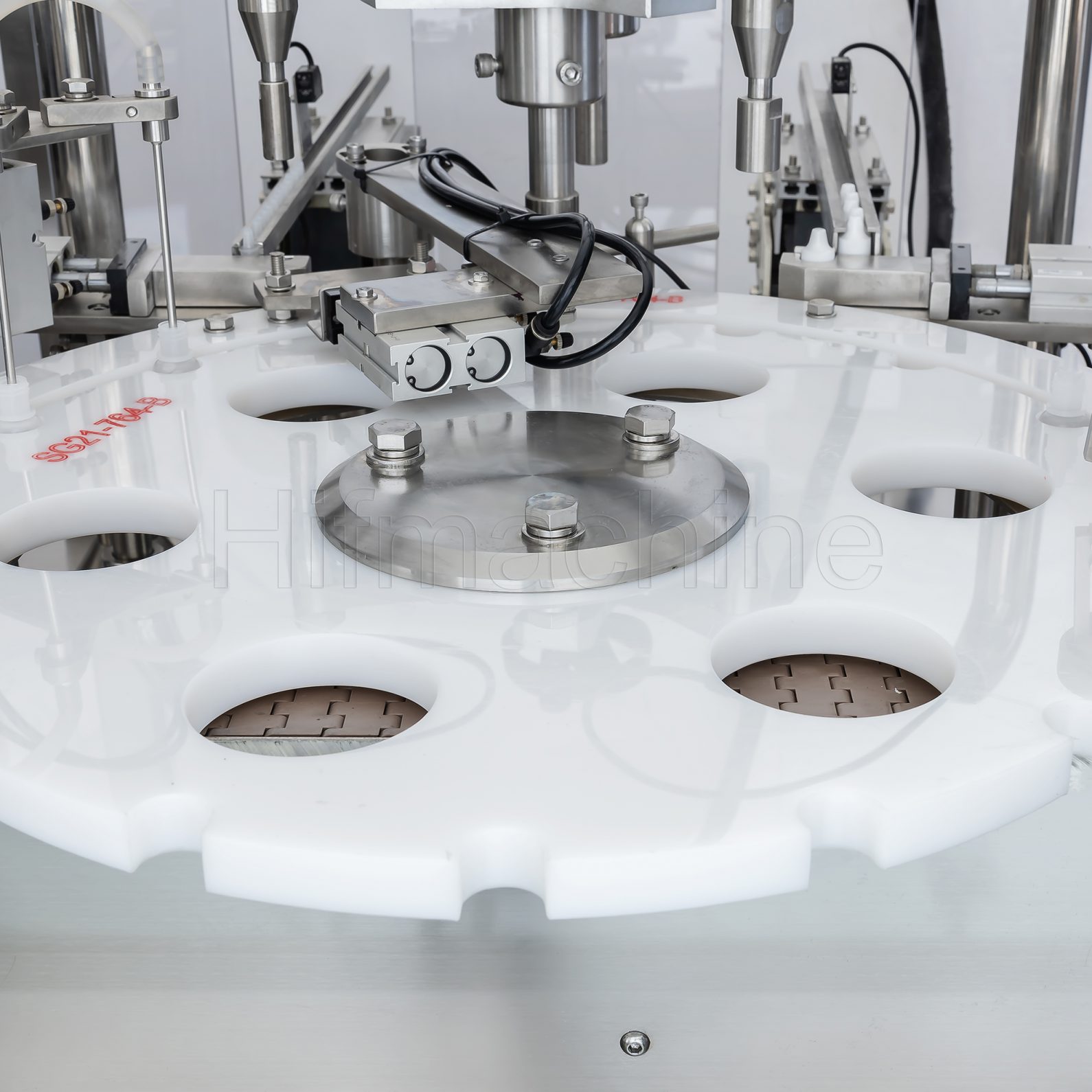

2.main rotary turntable

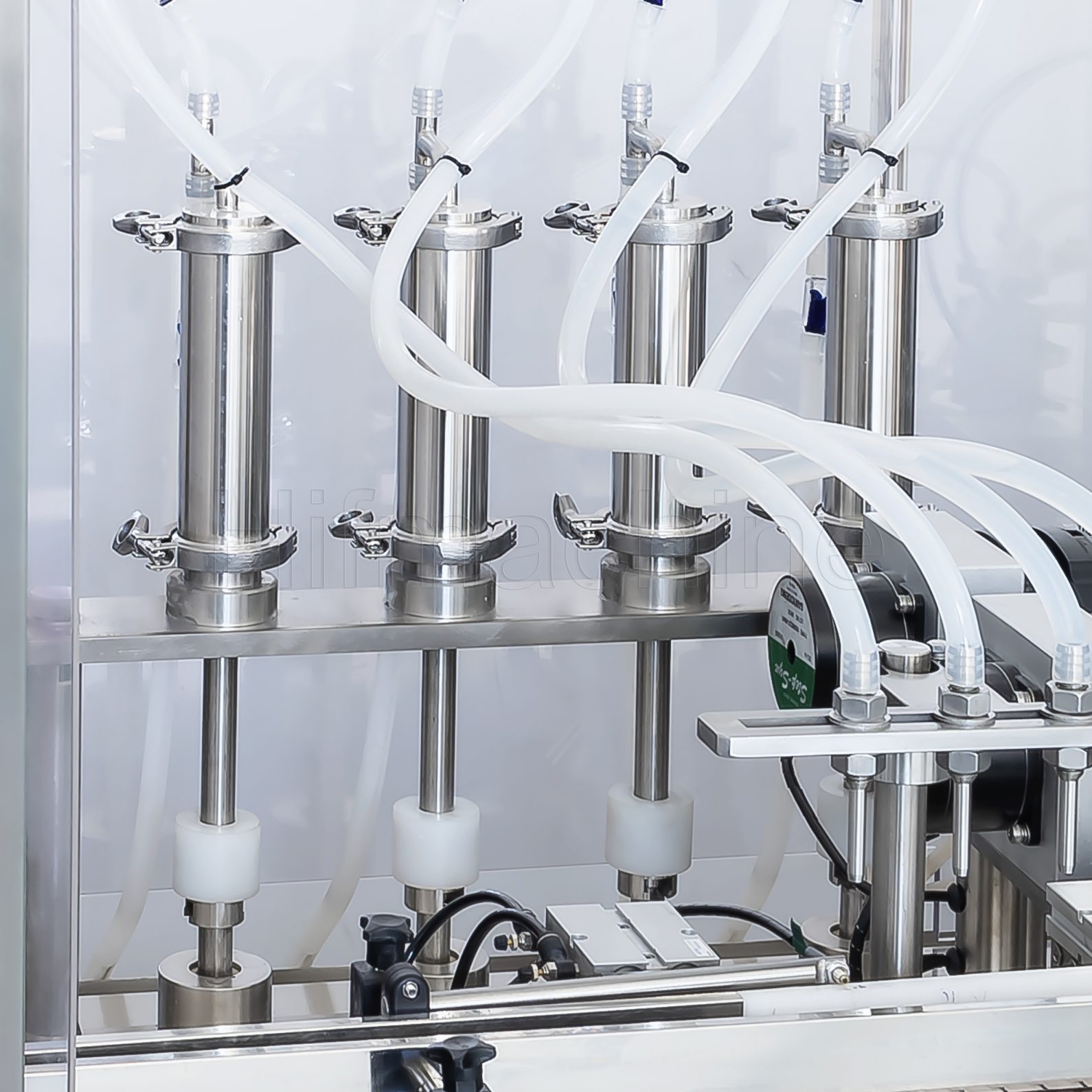

3.filling pump unit
4.filling head and bottle controlling cylinder

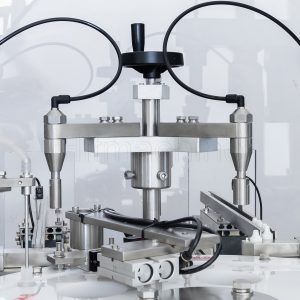

5.cap conveying and pressing mechanism

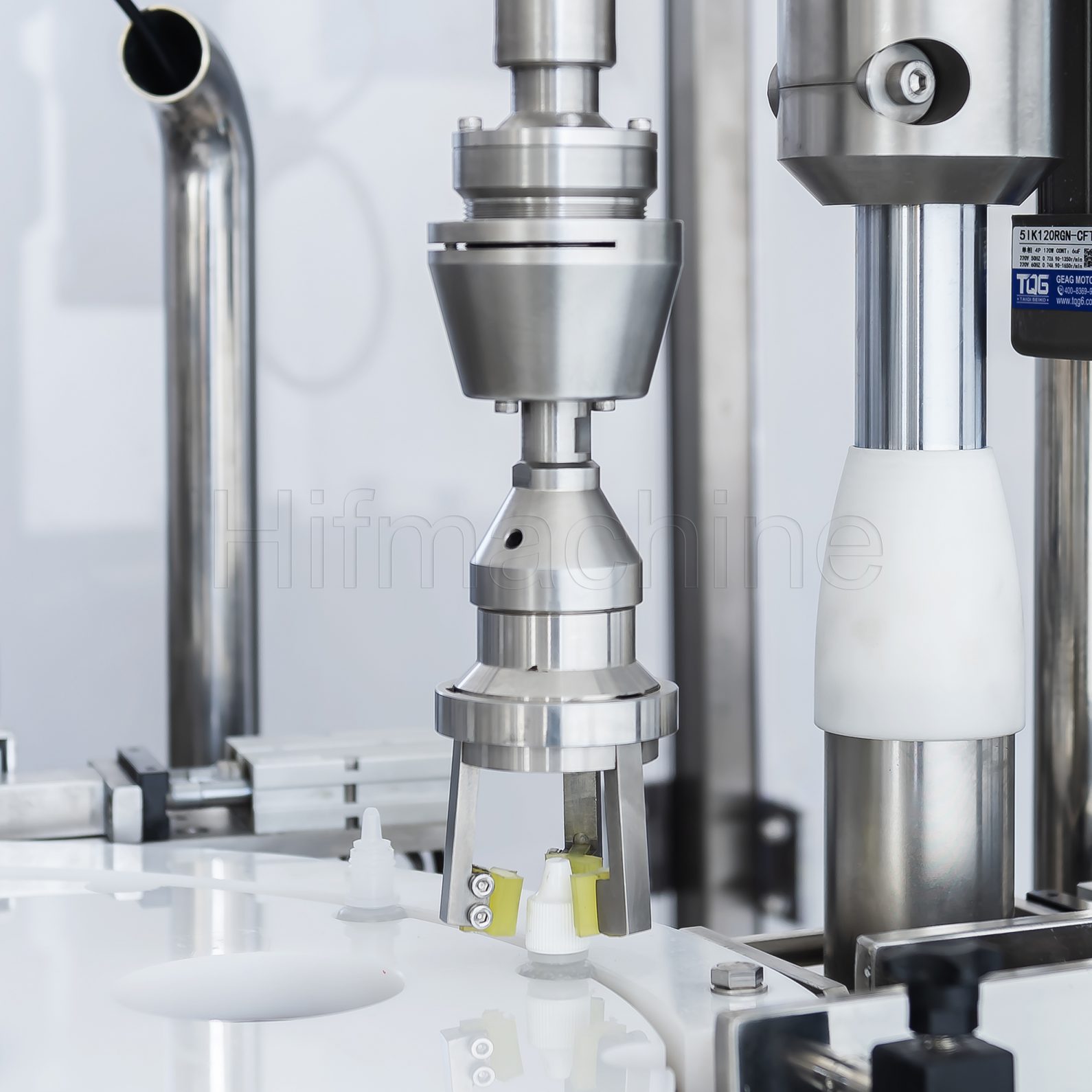

6.cap screwing mechanism
7.electrical operation pane
| Model | C4DY-2 |
|---|---|
| Production capacity | 30 bottles/min(four-head filling) |
| Air Pressure | 0.5-0.8MPa |
| Air volume | 13-15 m³/h |
| Power Supply | 220V 50Hz |
| Total Power | 3kW |
| Dimensions | 2400 * 1650 * 1700 mm |
| Weight | 950kg |
