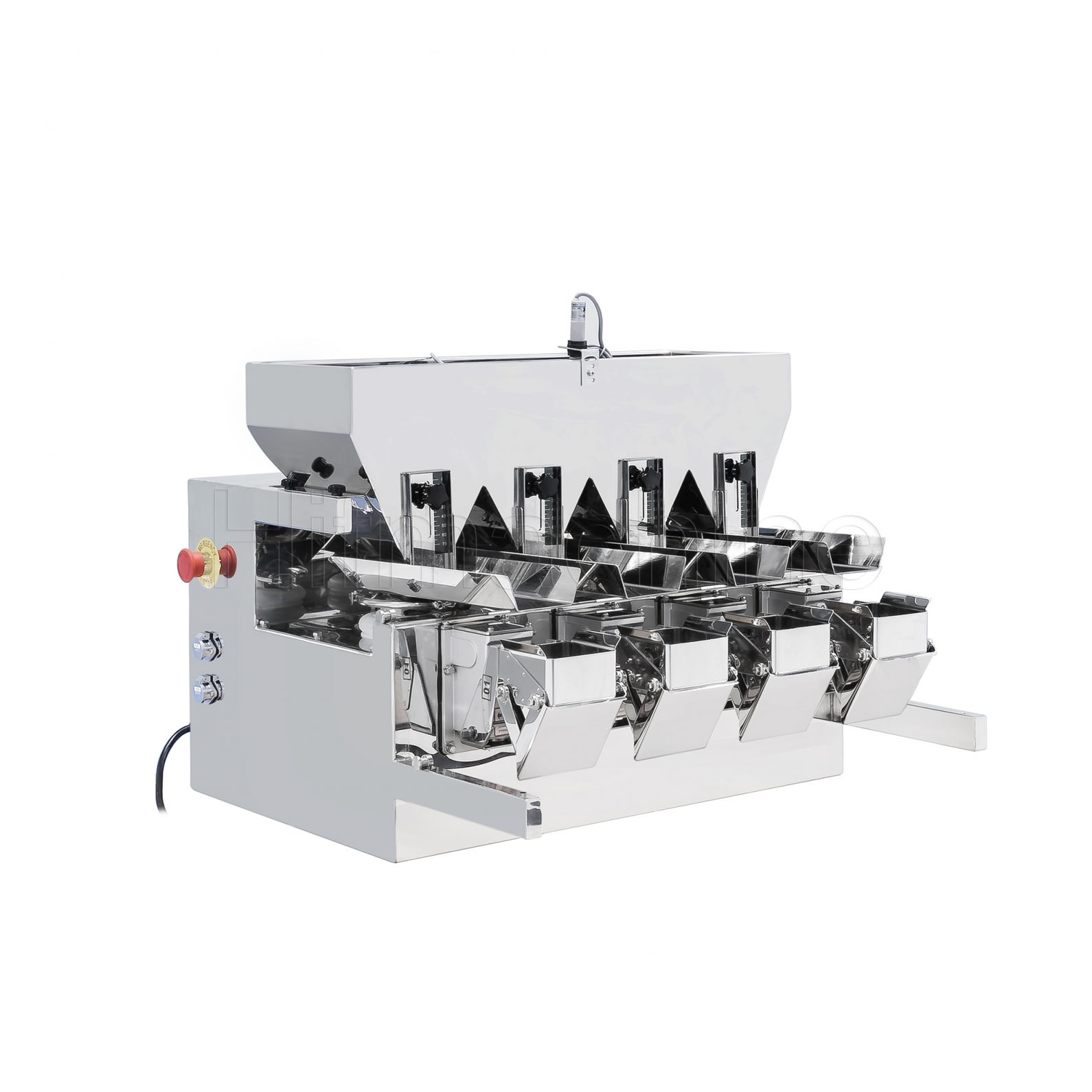

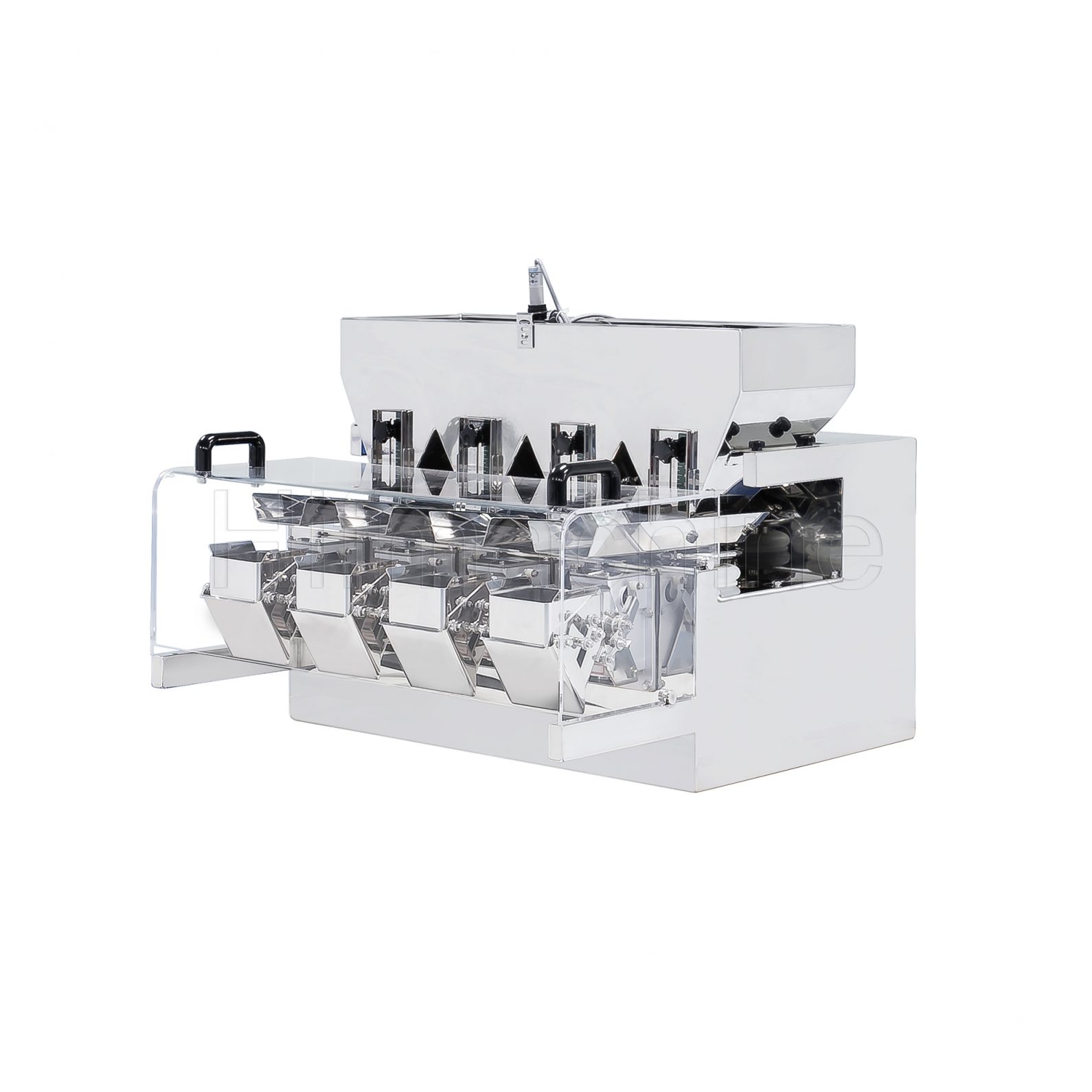

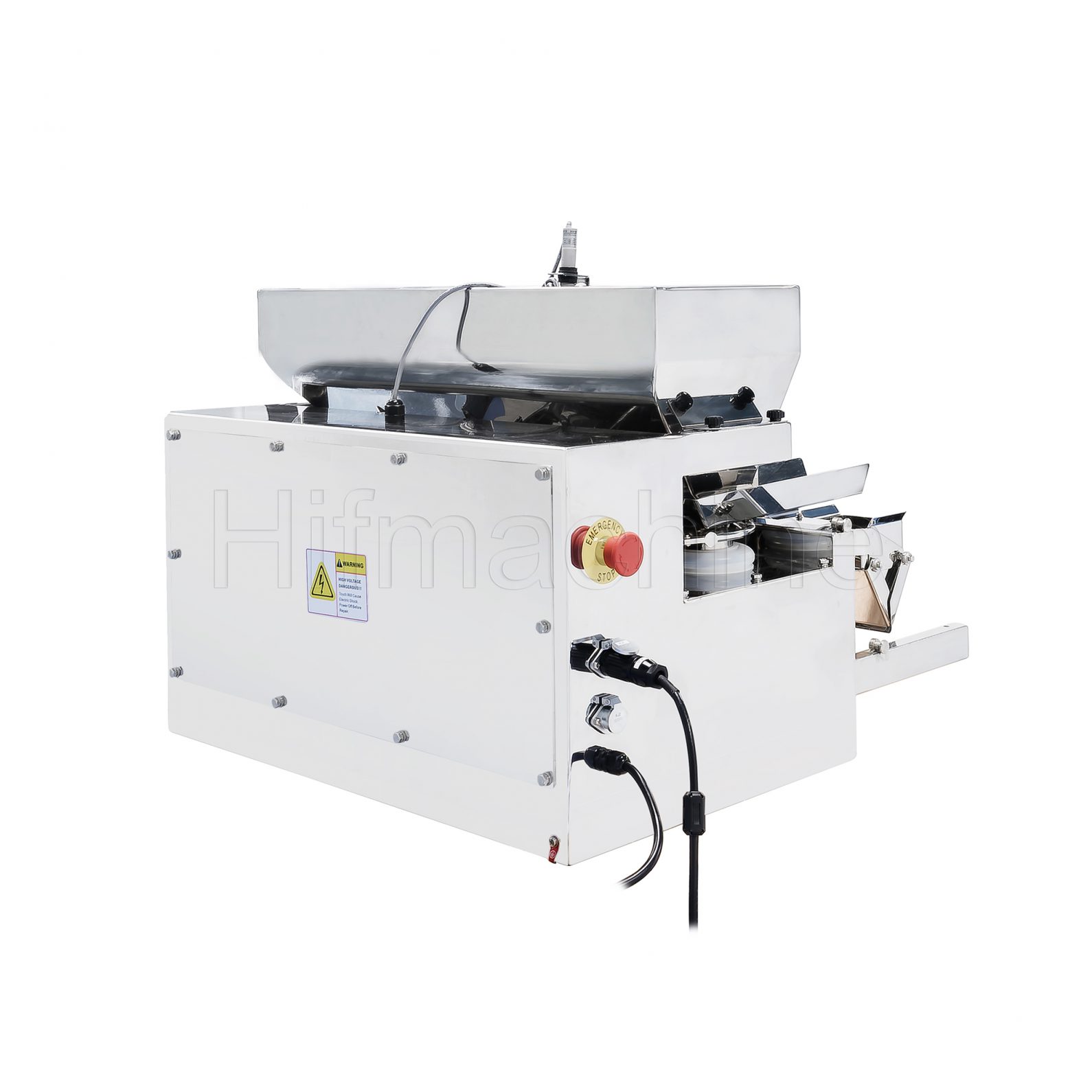

Multi- Heads Linear Weigher
Multi- Heads Linear Weigher
Measure and dispense products with great accuracy and speed with linear scales,Capable of weighing a wide range of dry products, from granular powders to small pieces of irregular shapes and sizes
Remarks
- Complete high-precision automatic weighing system
- Adaptable: Integrates with automatic packaging & processing machinery or operates as a standalone system for semiautomatic applications
- Accurate: Smart weight algorithm and quality weigh cells for precise product measurement
- Versatile: Capable of weighing and dispensing a wide variety of product types
- Quick: Fast flow design for optimal product movement
Model | CN-AX1-2-1 | CN-X2-2-1 | CN-XM2-2-1 | CN-X4-2-1 | CN-XS4-2-1 |
---|---|---|---|---|---|
Single Weighing Range | 50-3000g | 50-3000g | 100-13000g | 10-2000g | 10-400g |
Accuracy | 1-3% depending on product size /machine speed. | 1-3% depending on product size /machine speed. | 1-3% depending on product size /machine speed. | 1-3% depending on product size /machine speed. | 1-3% depending on product size /machine speed. |
Max Output | 20pills/min | 32pills/min | 18pills/min | 50pills/min | 70pills/min |
Hopper Volume | 4.5L | 4.5L | 15L | 3L | 0.5L |
Parameters Press No. | 20 | 20 | 20 | 20 | 20 |
Max Mixing Products | 1 | 2 | 2 | 4 | 4 |
Power | 500W | 800W | 800W | 1000W | 1000W |
Voltage | 220V/50/60Hz/2.5A | 220V/50/60Hz/4A | 220V/50/60Hz/4A | 220V/50/60Hz/5A | 220V/50/60Hz/5A |
Packing Dimension(mm) | 792(L)*470(W)*1006(H) | 685(L)*814(W)*971(H) | 1053(L)*1063(W)*1160(H) | 805(L)*800(W)*1049(H) | 684(L)*684(W)*738(H) |
Weight | 60kg | 130kg | 240kg | 160kg | 140kg |
