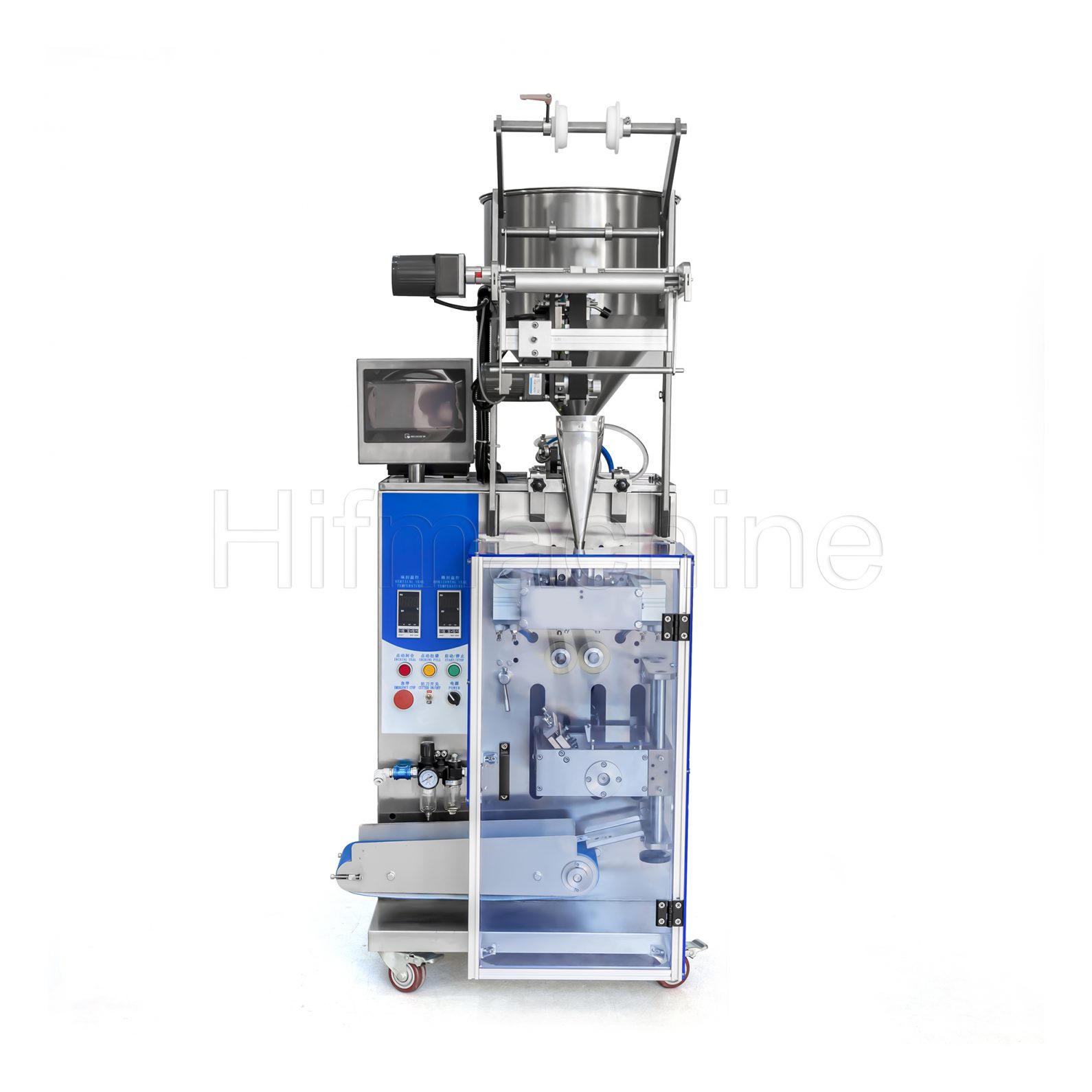

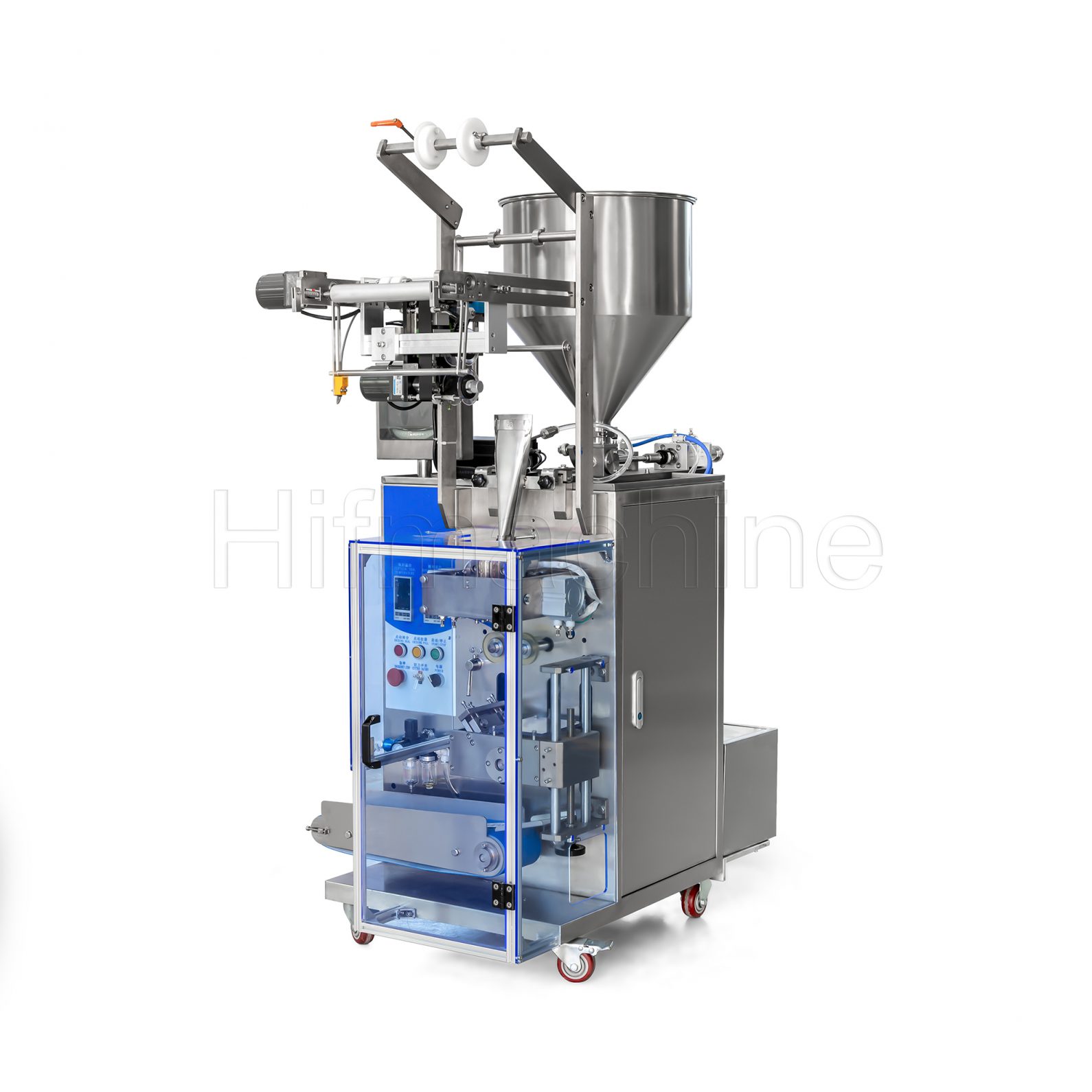

Automatic Single-Row Liquid Packaging Machine CBZ-50YS

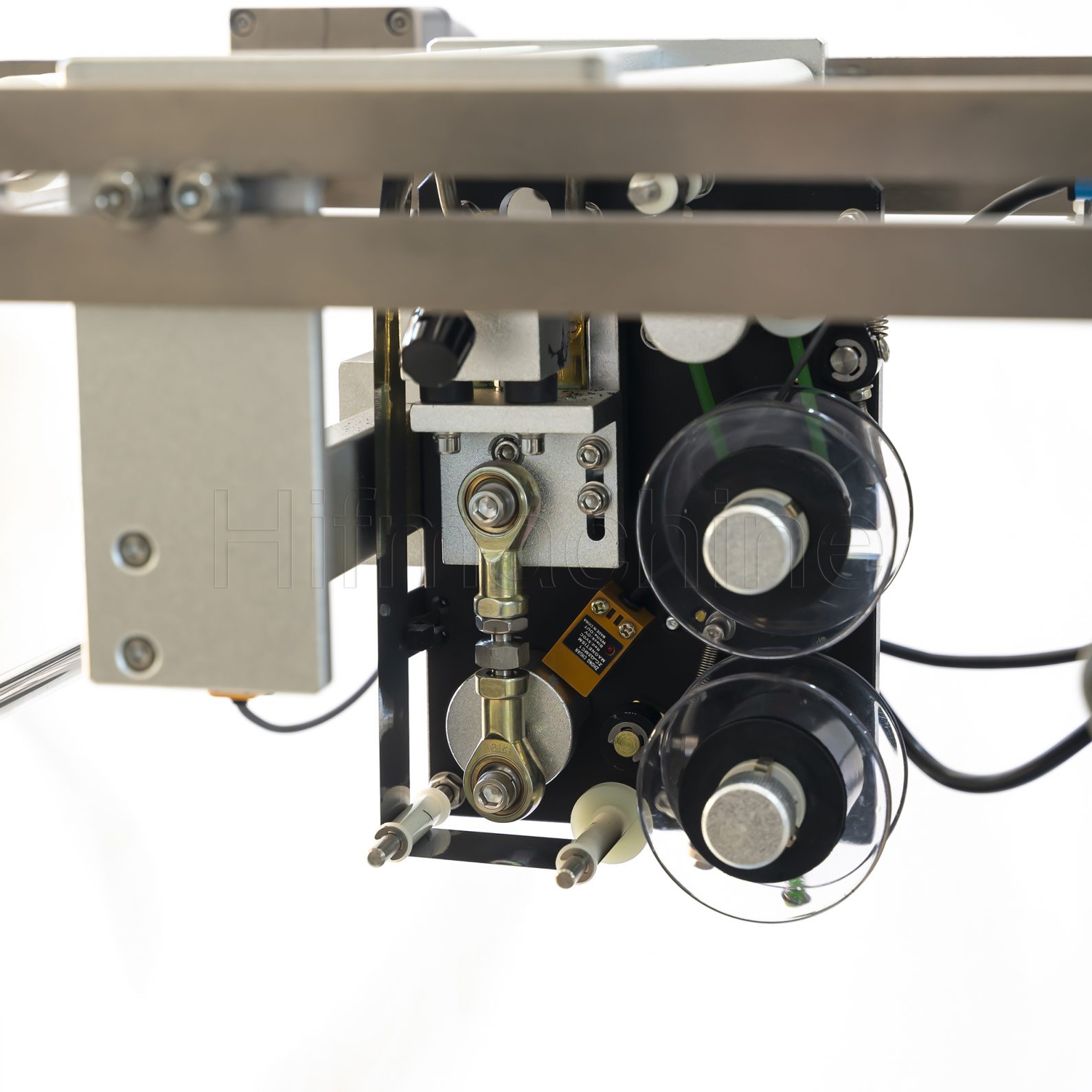

CBZ-50YS fully automatic single-channel liquid packaging machine is specially designed for the automatic packaging of various liquid or semi-liquid materials (such as shampoo, lotion, ketchup, soy sauce, etc.). The machine adopts advanced PLC control system and electronic induction detection system, which can realize one-stop automatic operation from bag making, filling, sealing, cutting to date printing, and has fault detection and alarm functions to ensure efficient and stable production process.

Automatic Single-Row Liquid Packaging Machine CBZ-50YS

The CBZ-50YS is a highly integrated, fully automatic packaging solution that not only integrates high-quality bag making, filling, sealing and cutting functions, but is also equipped with a photoelectric eye to identify the color markings on the packaging material to ensure the integrity and aesthetics of the bag.

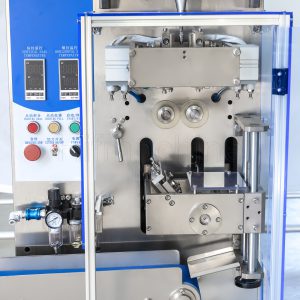

In addition, the equipment has a user-friendly operating interface, including a touch screen control panel, which allows users to easily set various parameters and monitor production progress. To ensure optimal working conditions, the machine needs to be connected to a stable pressure source and placed on a sturdy, vibration-free platform during installation. At the same time, detailed maintenance guides and solutions to common problems are provided to help users keep the machine running well.

Request for Quote

Feature

  • Fully automated: no human intervention is required for the entire process from bag making to finished product output.
  • High precision: the photoelectric eye accurately identifies the color mark on the packaging film to ensure the accurate position of each bag.
  • Versatility: suitable for a variety of packaging materials, such as paper/PE, PET/AL foil/PE, PET/PE, NYLON/PE, etc.
  • Safe and reliable: built-in multiple safety measures, such as emergency stop button, grounding protection wire and design to avoid contact with high-temperature components.
  • Easy to use: intuitive operation panel and HMI human-machine interface, easy for users to get started quickly.
  • Regular maintenance reminder: remind users to add lubricating oil regularly and check fasteners to ensure that the machine is in the best working condition.
  • Perfect after-sales service: provide a one-year warranty and lifetime technical service support, and respond to customer feedback in a timely manner.

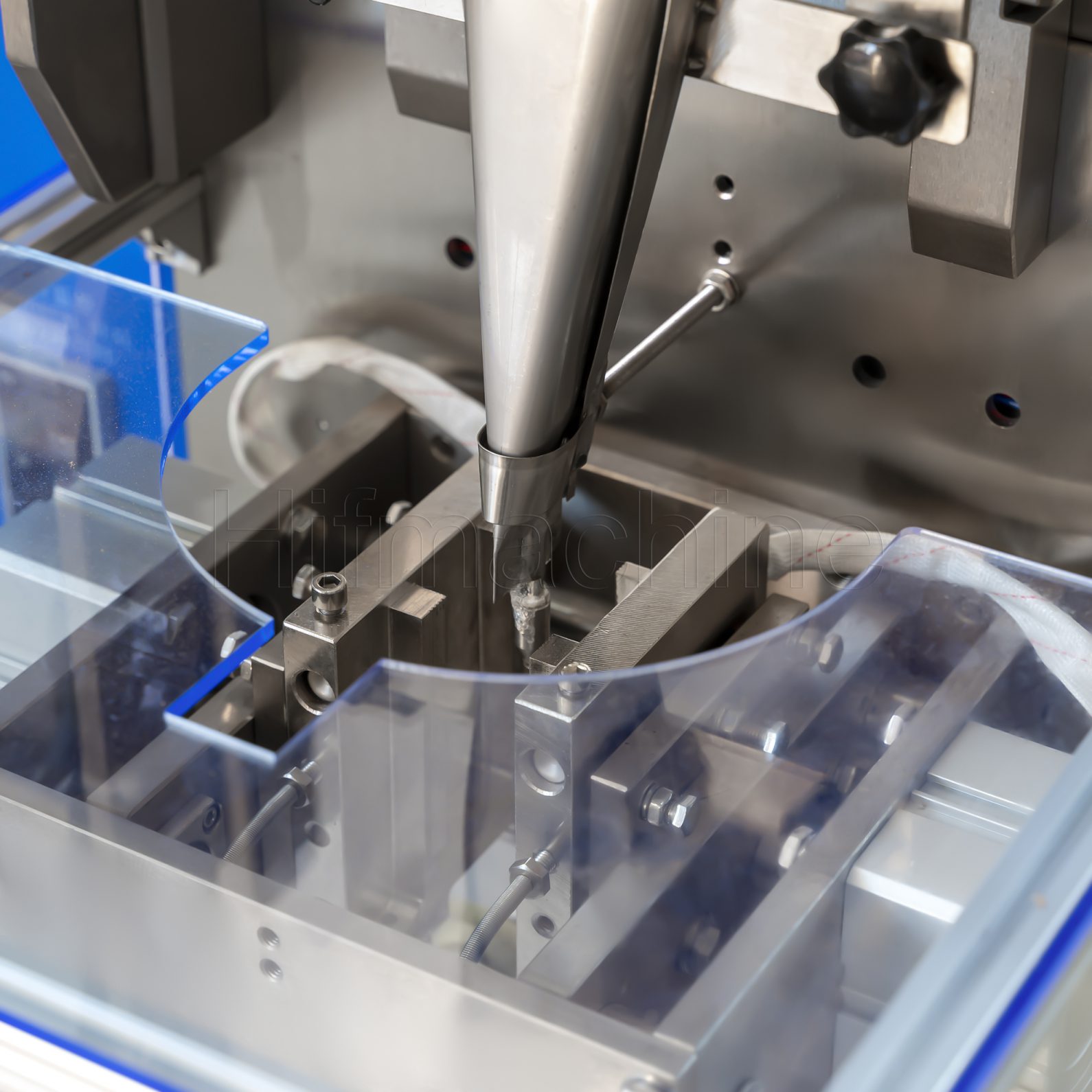

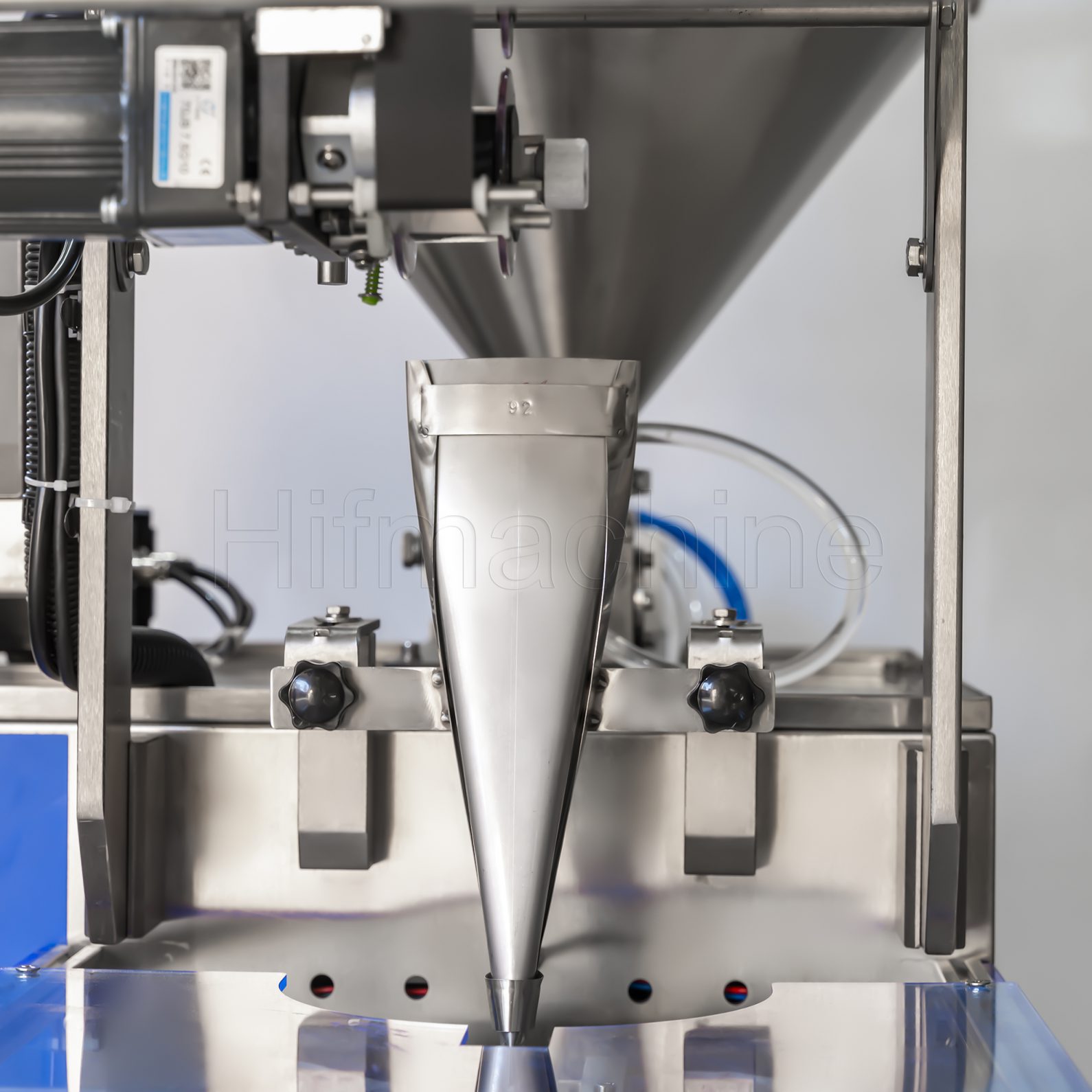

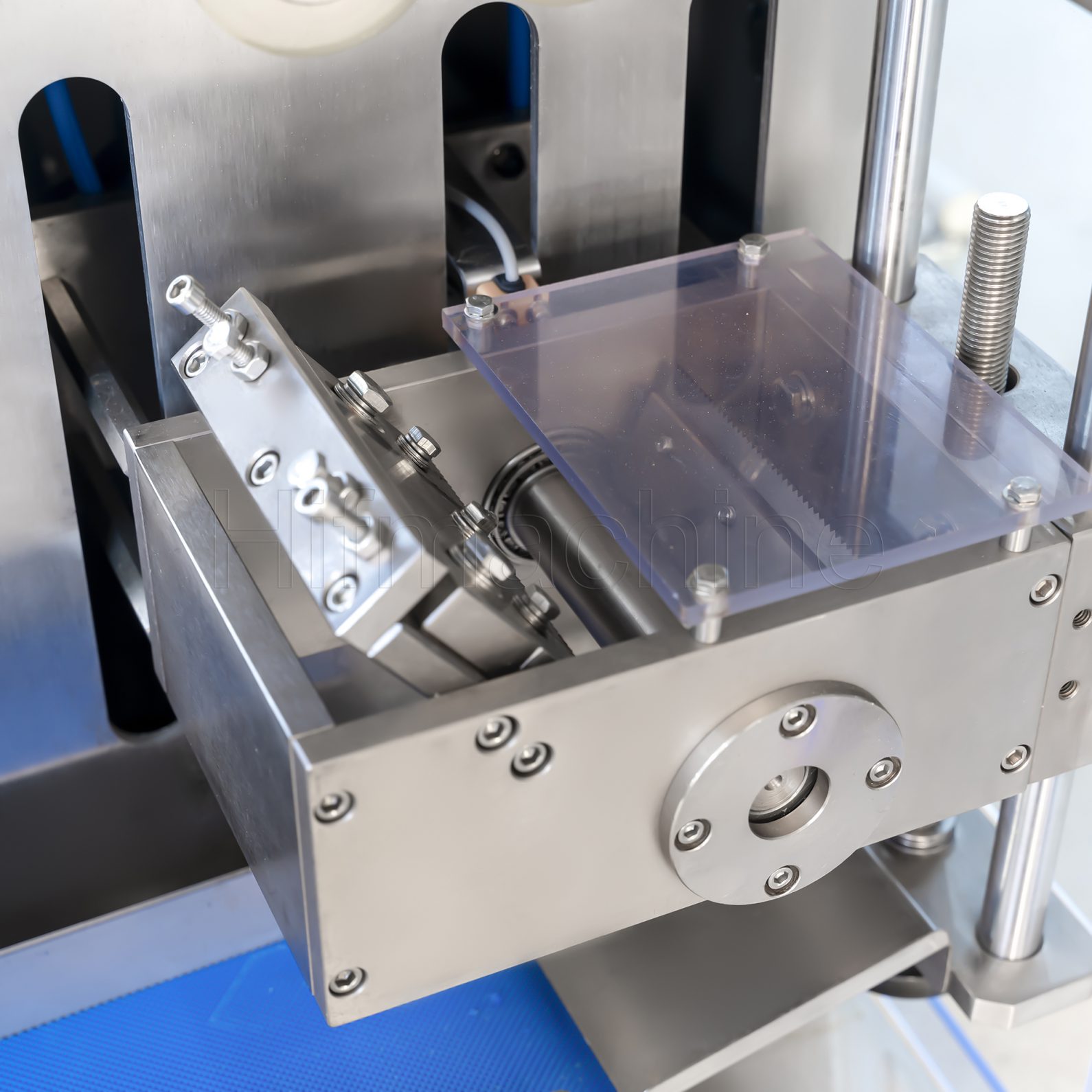

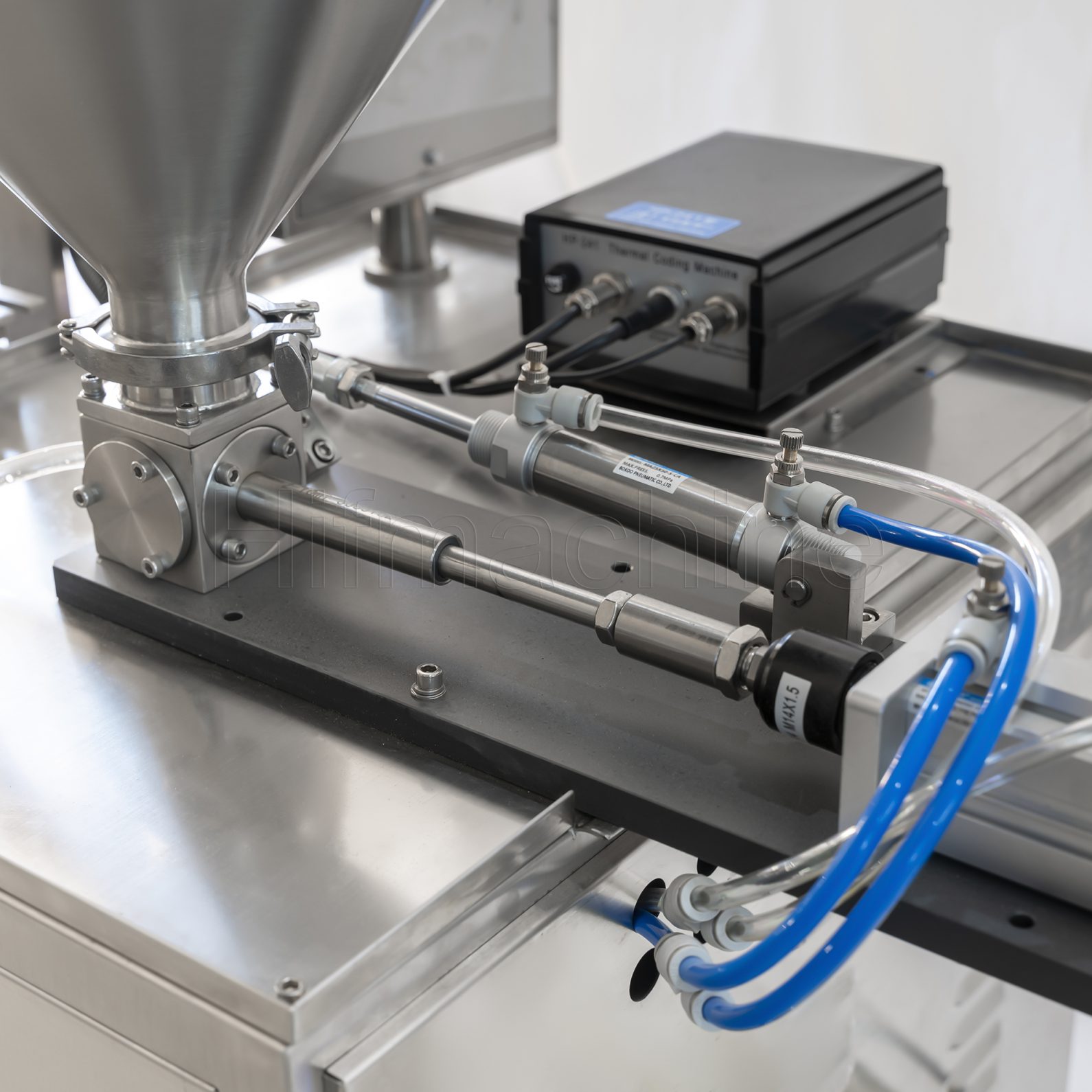

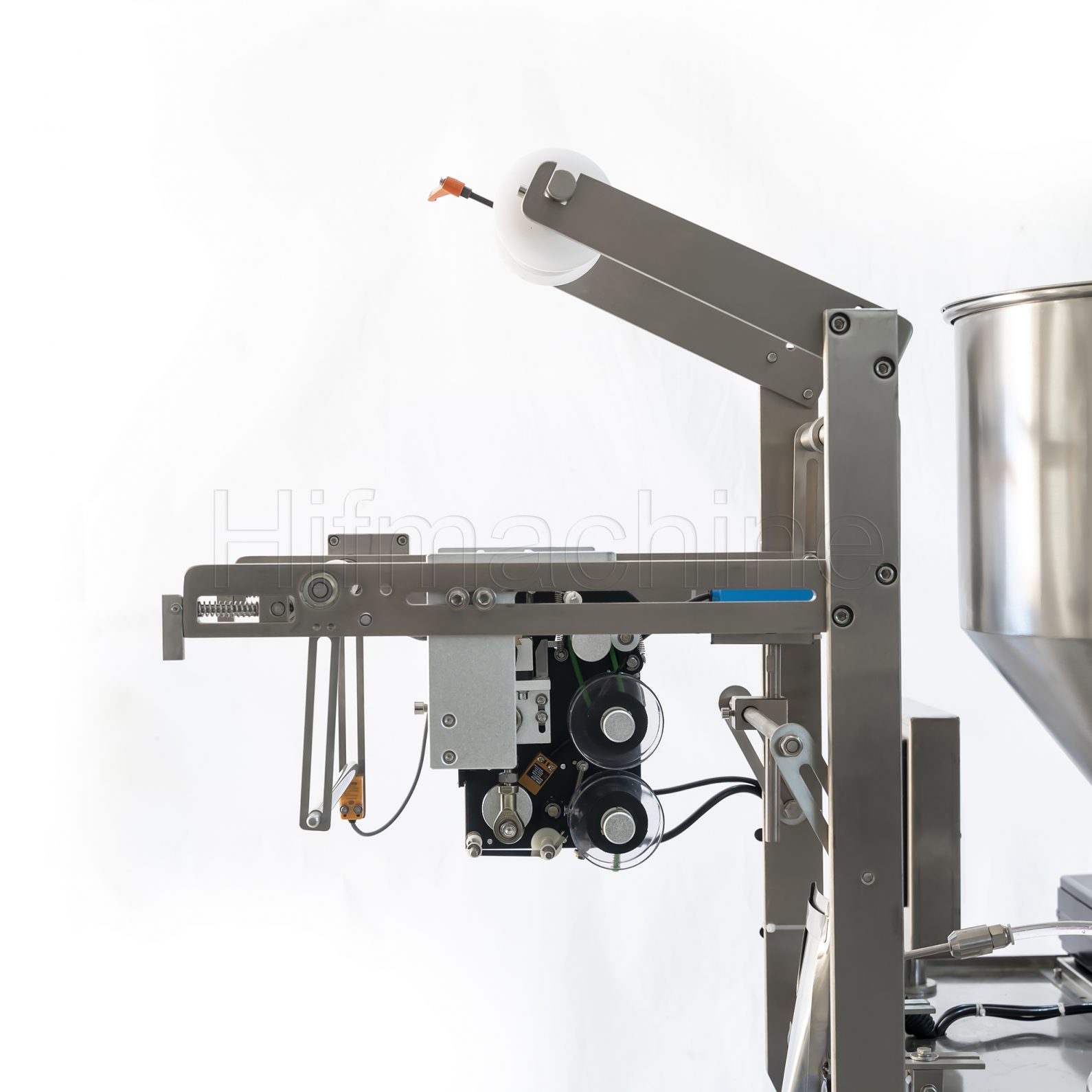

Detial Image



Model CBZ-50YS
Capacity(bags/min) 35-50
Range of measurement(mL) 1-12
Bag size(mm) (L)30-150, (W)40-100
Power(W) 800
Source voltage 220V/50-60Hz
Packing material Paper /PE, PET/AL foil/PE, PET/PE, NYLON/PE, paper /PE etc.
Net weight(kg) 260kg
Overall dimensions 850X1250X1650mm(L*W*H)
