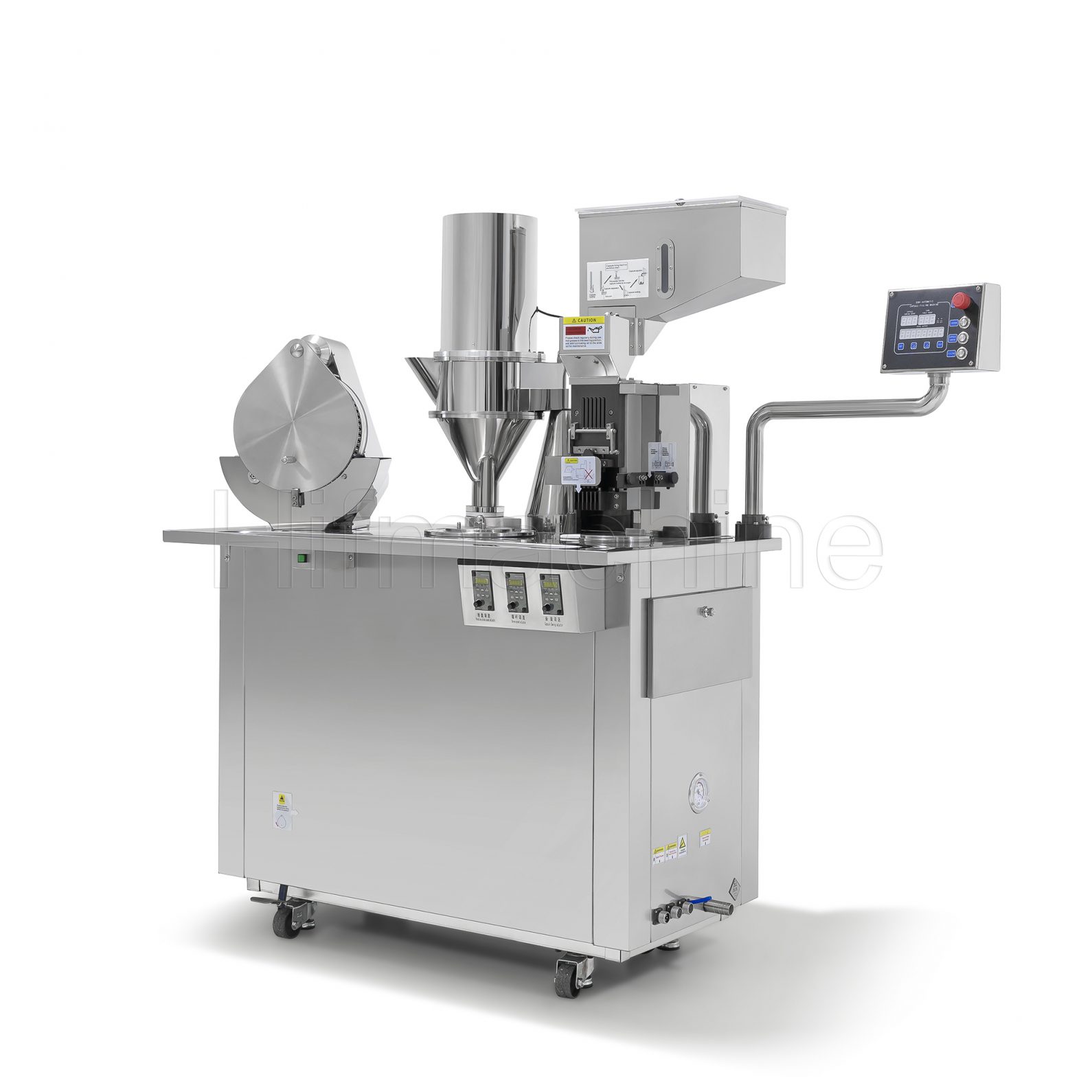

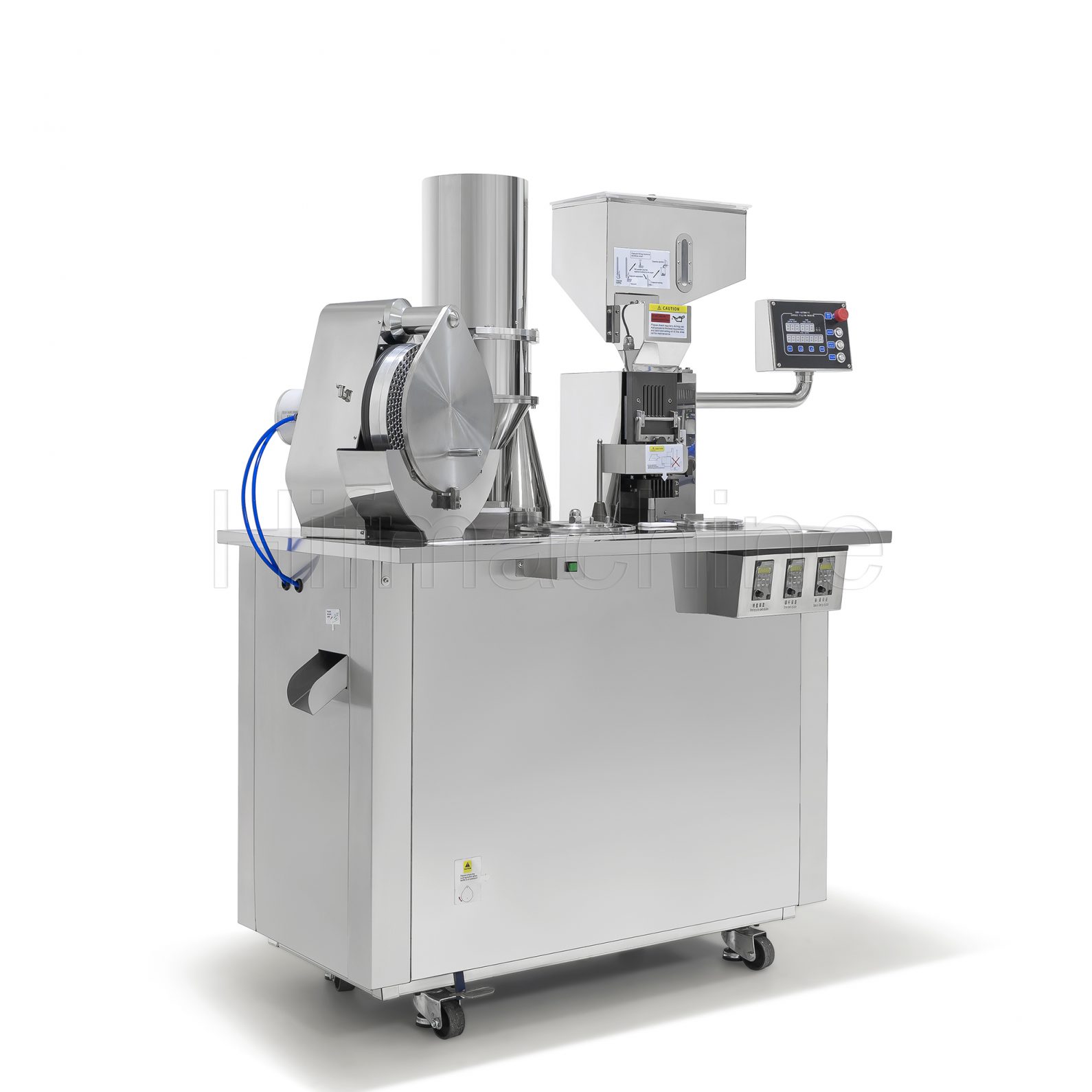

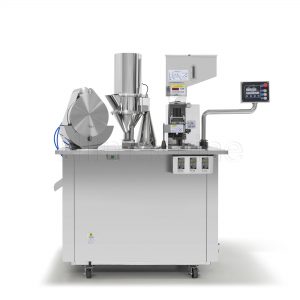

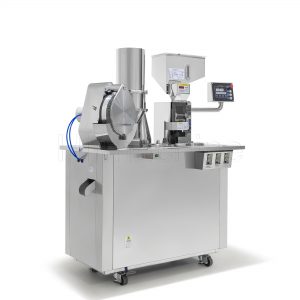

Semi-Automatic Capsule Filling Machine JTJ-V Vertical Type
Semi-Automatic Capsule Filling Machine JTJ-V Vertical Type
The updated semi-auto capsule filling machine JTJ-V vertical type results in faster production, meeting G.M.P. requirements, more accurate filling, a safer operation, simple maintenance. It operate without noise and cleaning is simple.

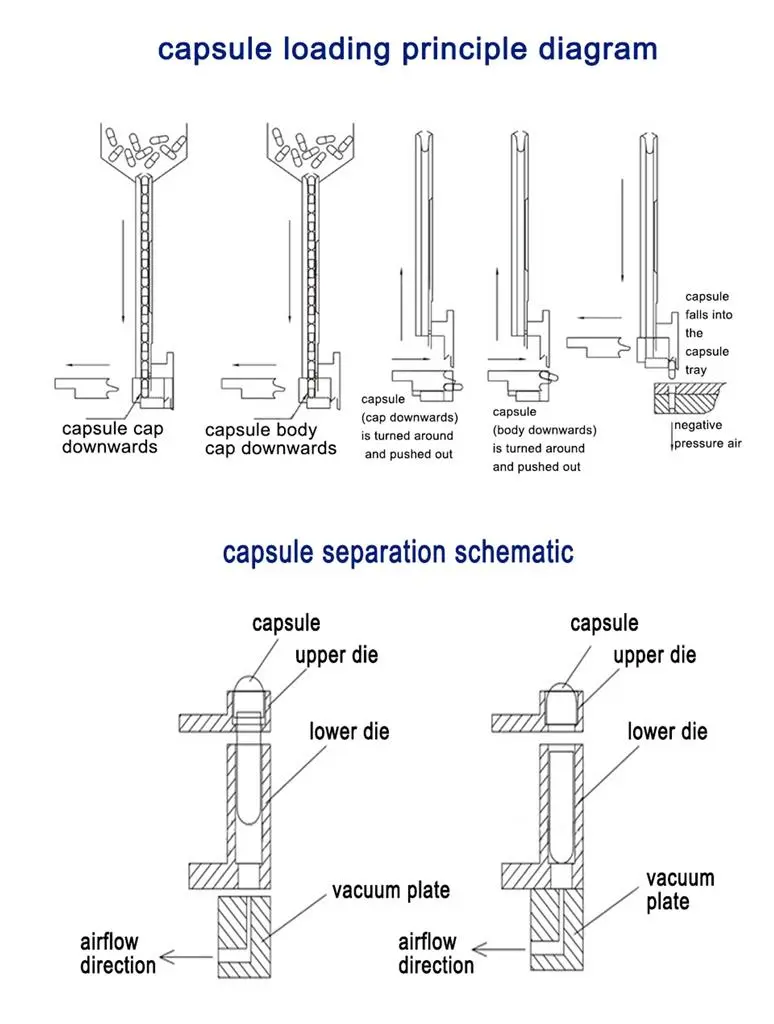

The functions of first station include capsule feeding, aligning and insertion into bores of holding ring. Also, vacuum is used for separating capsule cap and body in first station. After orientation of capsule, capsule cap can stay in upper holding ring and capsule body can stay in lower holding ring.
A special design allows for changing mold for different size capsules within 10 minutes easily, simply, precisely.
Remarks
- All stainless shells, hoppers, machine table.etc… meet G.M.P. requirements.
- Variable speed for filling capsules with independent power and fix point filling that result in accurate dosage.
- No paint finish on the machine surface to avoid strip off and contamination.
- Simple structure and low malfunction, easy to maintain and clean. Simple operation, only one operator required.
| Model | JTJ-V |
|---|---|
| Capsule Size | 000#, 00L#, 00#, 0L#, 0#, 1#, 2#, 3#, 4# |
| Capacity | About 7000 capsules/h (The output depends on the capsule size.) |
| Electrical Supply | As electrical facilities vary from country to country, please provide your specifications at time of order so that the correct motors are supplied with your machine |
| Vacuum Pump | 40m3/h |
| Compressed Air | 0.03m³/min,0.7MPa |
| Overall Dimensions | Length: 1140mm Width: 700mm Height: 1630mm Weight: 380kg |
| Package Size | Length: 1650mm Width: 800mm Height: 1750mm Weight: 500kg |
