Powder Mixer Ribbon Mixer WLDH1000-4000
Powder Mixer Ribbon Mixer WLDH1000-4000

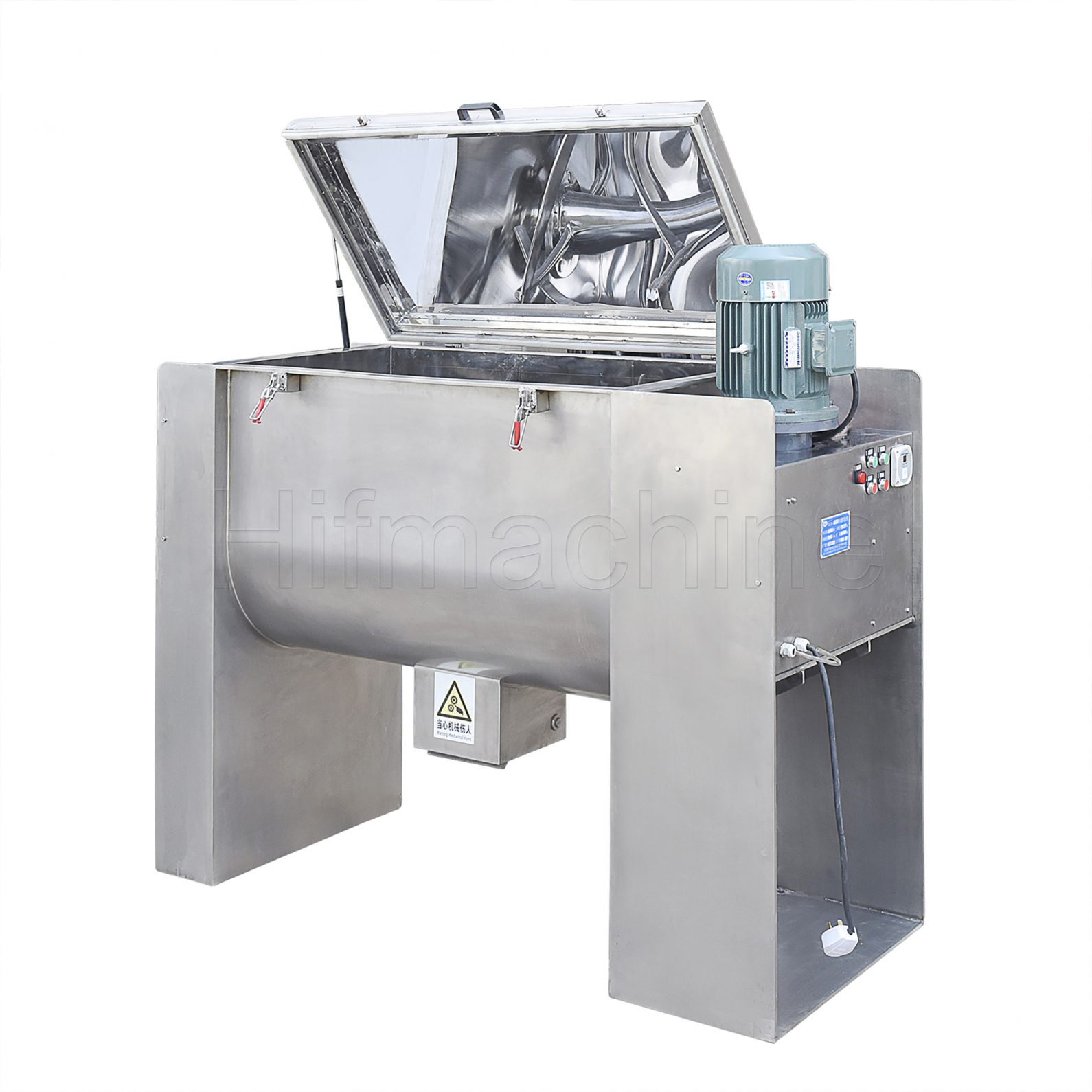

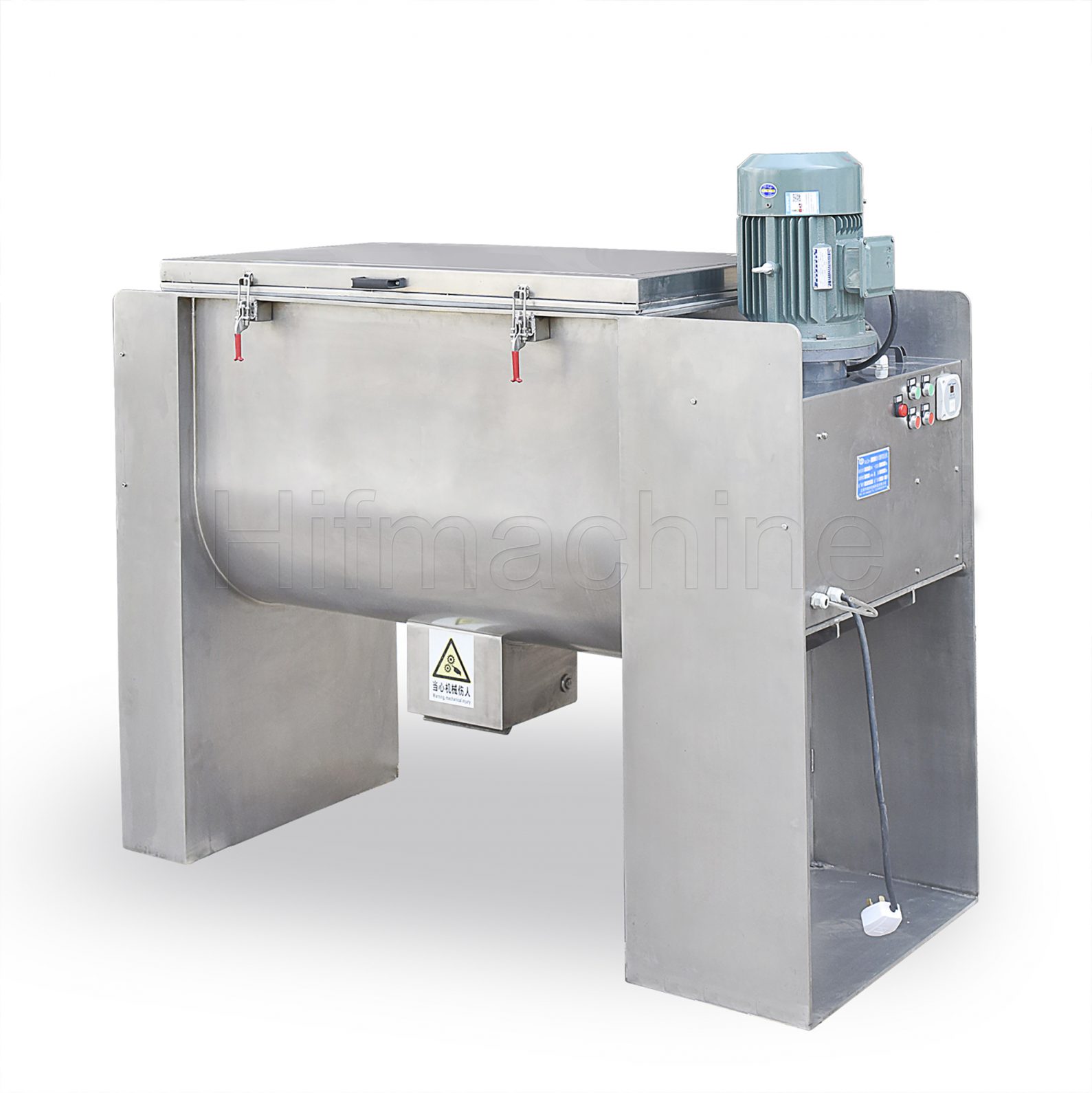

Ribbon Blenders consist of a U-shaped horizontal trough, transmission parts and ribbon agitating blades which usually have double or triple layers with outside screw gathering the material from sides to center and inside screw transmitting the material from center to sides to form convection mix and a specially fabricated ribbon agitator.
The outer ribbon moves materials in one direction and the inner ribbon moves the materials in the opposite direction. The ribbons rotate at approx. 300 fpm moves materials both radially and laterally to insure thorough blends in short cycle times.
Ribbon blenders are commonly used in nutraceutical, chemical, food and related industries. It is excellent for mixing both wet and dry products
Remarks
- The machine is fully integrated and flexible.
- The stainless steel vessel is non- corrosive and allows dense liquids to turn freely and mix thoroughly without fading.
- Materials are poured manually.
- Operator- friendly.
| Model | Total Volume(L) | Load Coefficient | Power(kW) | Dimensions(mm) | Weight (kg) |
|---|---|---|---|---|---|
| WLDH-100 | 100 | 0.4-0.6 | 3 | 1190x740x770 | 380 |
| WLDH-300 | 300 | 0.4-0.6 | 4 | 2320x730x1130 | 560 |
| WLDH-500 | 500 | 0.4-0.6 | 7.5 | 2800x920x1320 | 680 |
| WLDH-1000 | 1000 | 0.4-0.6 | 11 | 3180x1020x1550 | 1200 |
| WLDH-1500 | 1500 | 0.4-0.6 | 11 | 3310x1120x1640 | 1600 |
| WLDH-2000 | 2000 | 0.4-0.6 | 15 | 3750x1290x1820 | 2200 |
| WLDH-3000 | 3000 | 0.4-0.6 | 18.5 | 4220x1400x1990 | 3300 |
| WLDH-4000 | 4000 | 0.4-0.6 | 22 | 4220x1500x2100 | 3800 |
| WLDH-5000 | 5000 | 0.4-0.6 | 22 | 4420x1610x2260 | 4300 |
| WLDH-6000 | 6000 | 0.4-0.6 | 30 | 4700x2150x2470 | 5500 |
| WLDH-8000 | 8000 | 0.4-0.6 | 37 | 5520x2360x2720 | 6800 |
| WLDH-10000 | 10000 | 0.4-0.6 | 45 | 5720x2520x2740 | 7900 |
