Tablet Sieving Machine Tablet Deduster SWS-137
Tablet Sieving Machine Tablet Deduster SWS-137

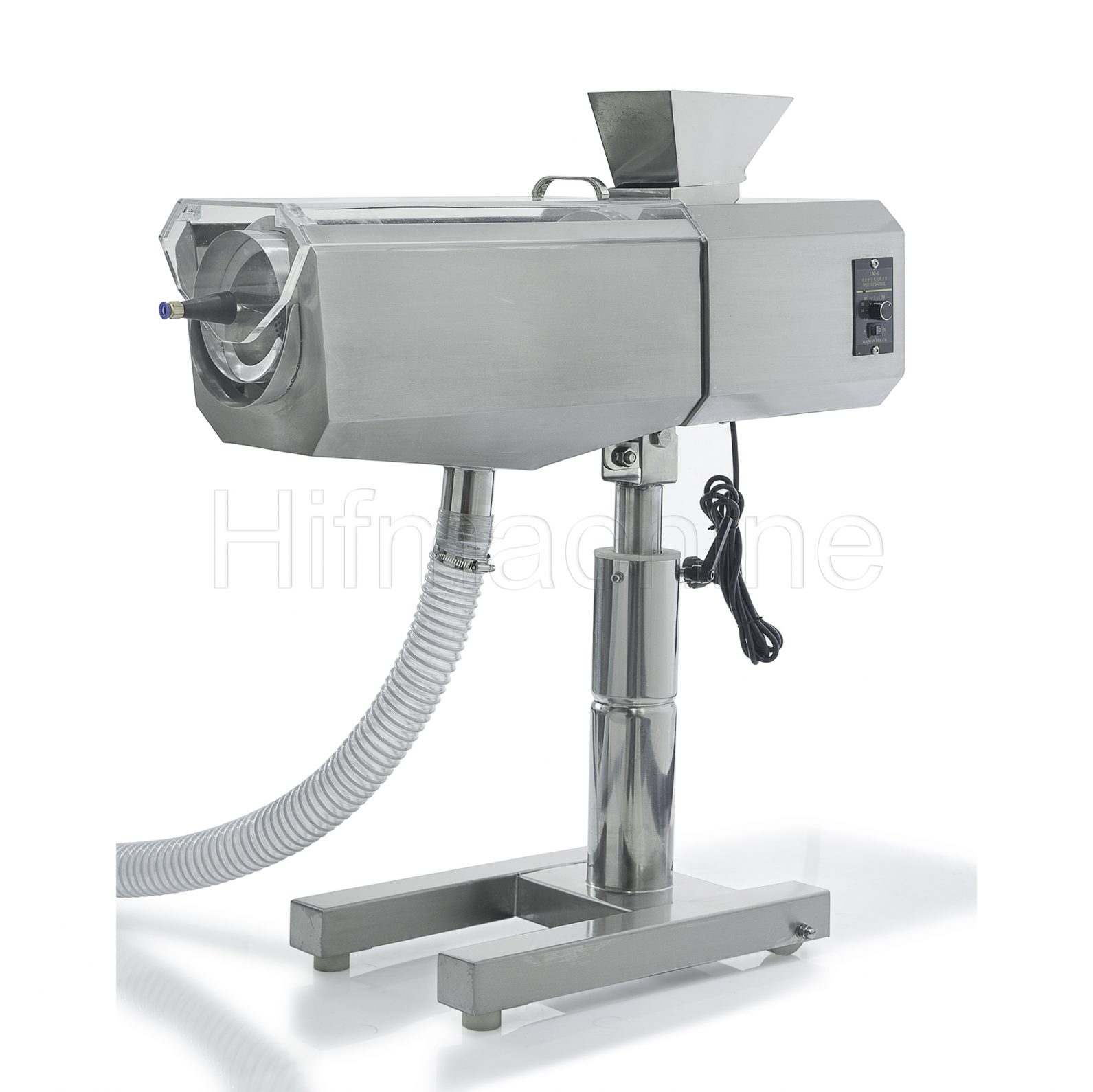

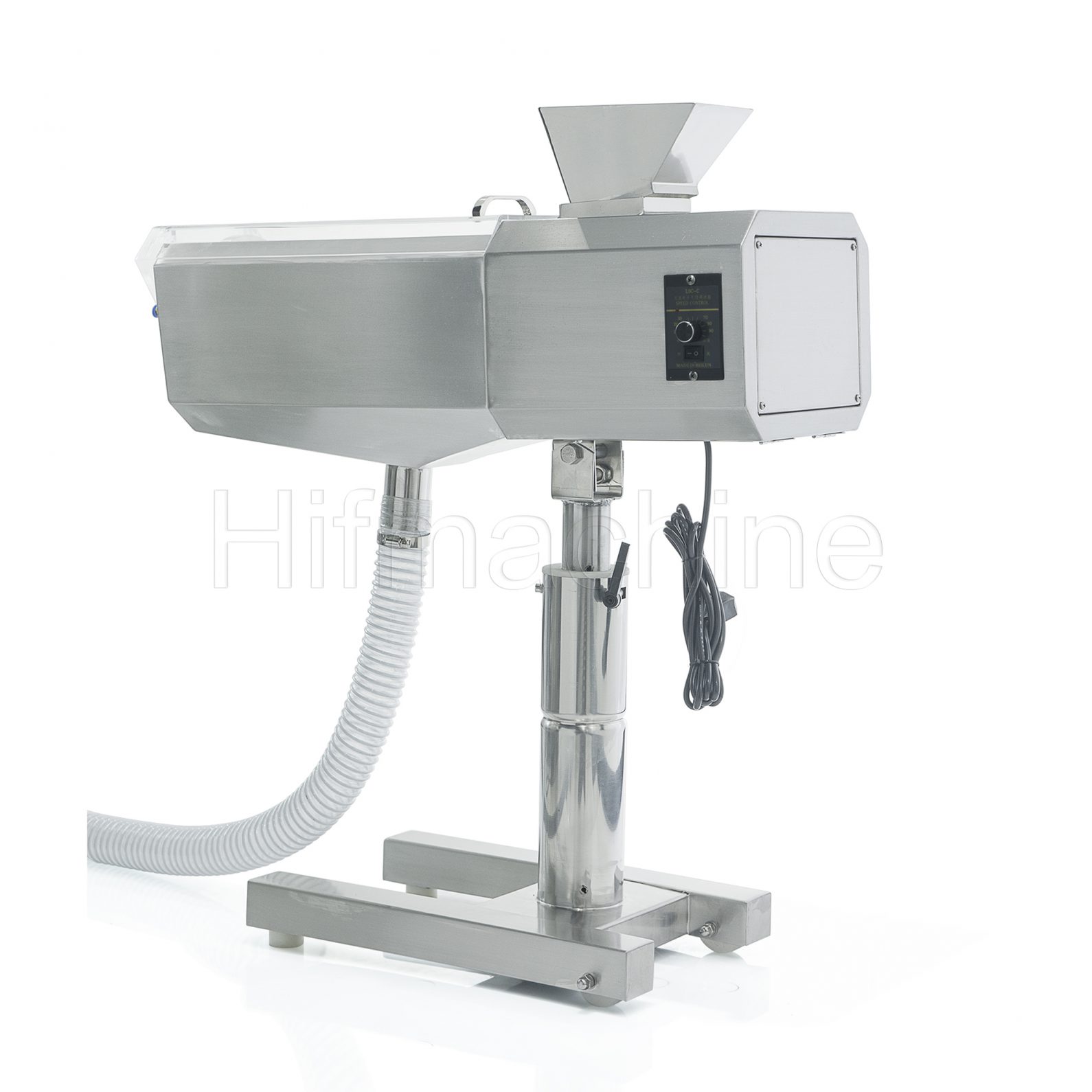

The SWS-137 high-speed tablet sieving machine adopts compressed air for scavenging, centrifugal dust removing and roller edge grinding principle to eliminate dust on the tablet surfaces and edge burrs, so as to make the tablet surfaces clean and the edges neat.
The tablet sieving and conveying process is completed inside a sieving box with a closed structure.
When it works, the sieving box and material inlet and outlet are under negative pressure status without dust emission.
The sieving box and power box are totally isolated from each other.
The quick disassembled structure makes it convenient to disassemble, install and clean the machine.
The parts that contact the medicine are all made of stainless steel, meeting the requirements for pharmaceutical equipment in GMP..
Remarks

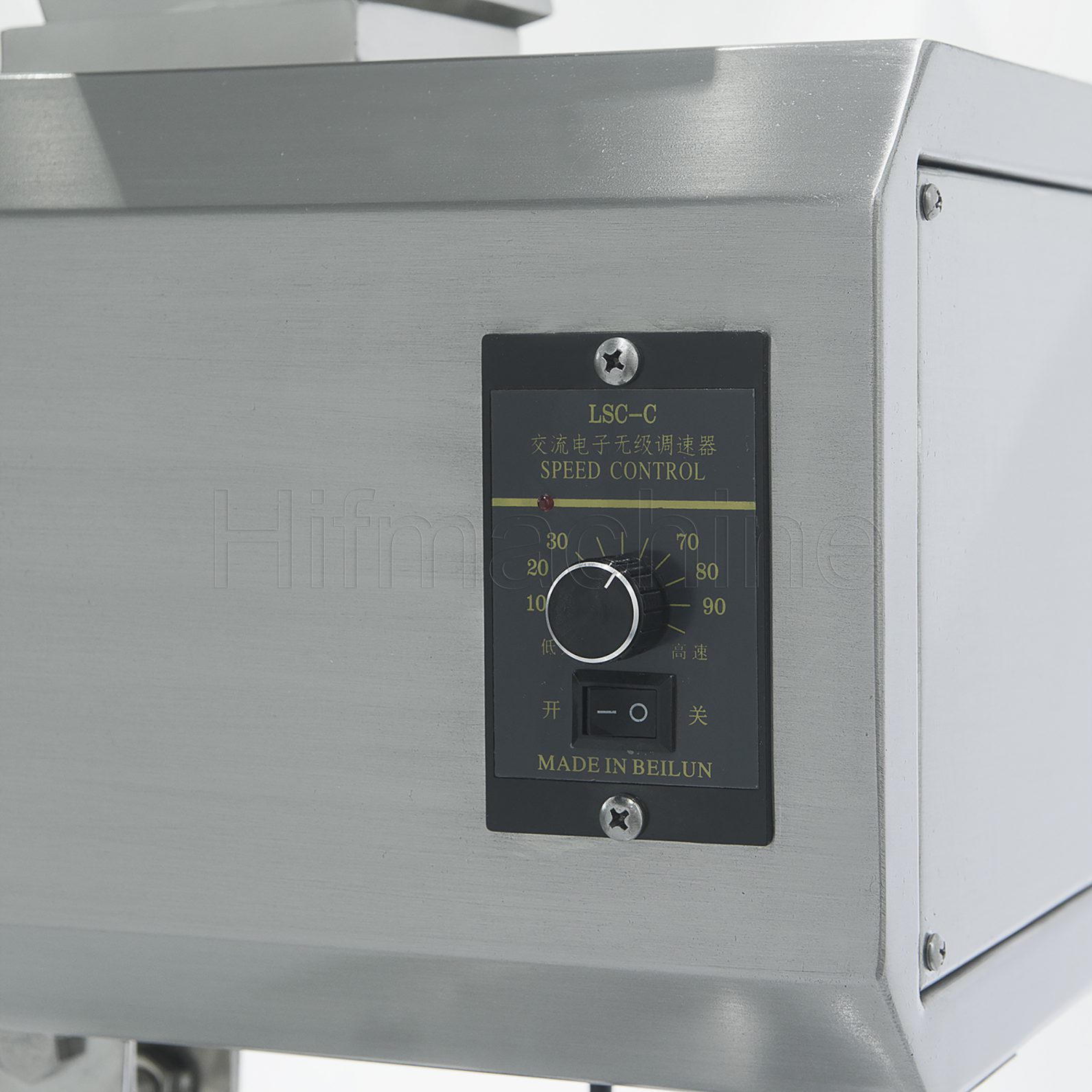

- The machine adopts AC brushless motor to realize stepless speed adjustment, meeting dust removing requirements of different outputs and different medicines.
- The material inlet and outlet height and angle can be freely adjusted within a certain range to meet different working requirements.
- Castors are installed at the bottom of the base to make it convenient to move the machine to the working place.
- The working height and angle of the material inlet and outlet of the machine can be adjusted through the lifting rod and locking handle.
- The vacuum cleaner is necessary when using this machine.
| Model | SWS-137 |
|---|---|
| Capacity | 7000pcs/min |

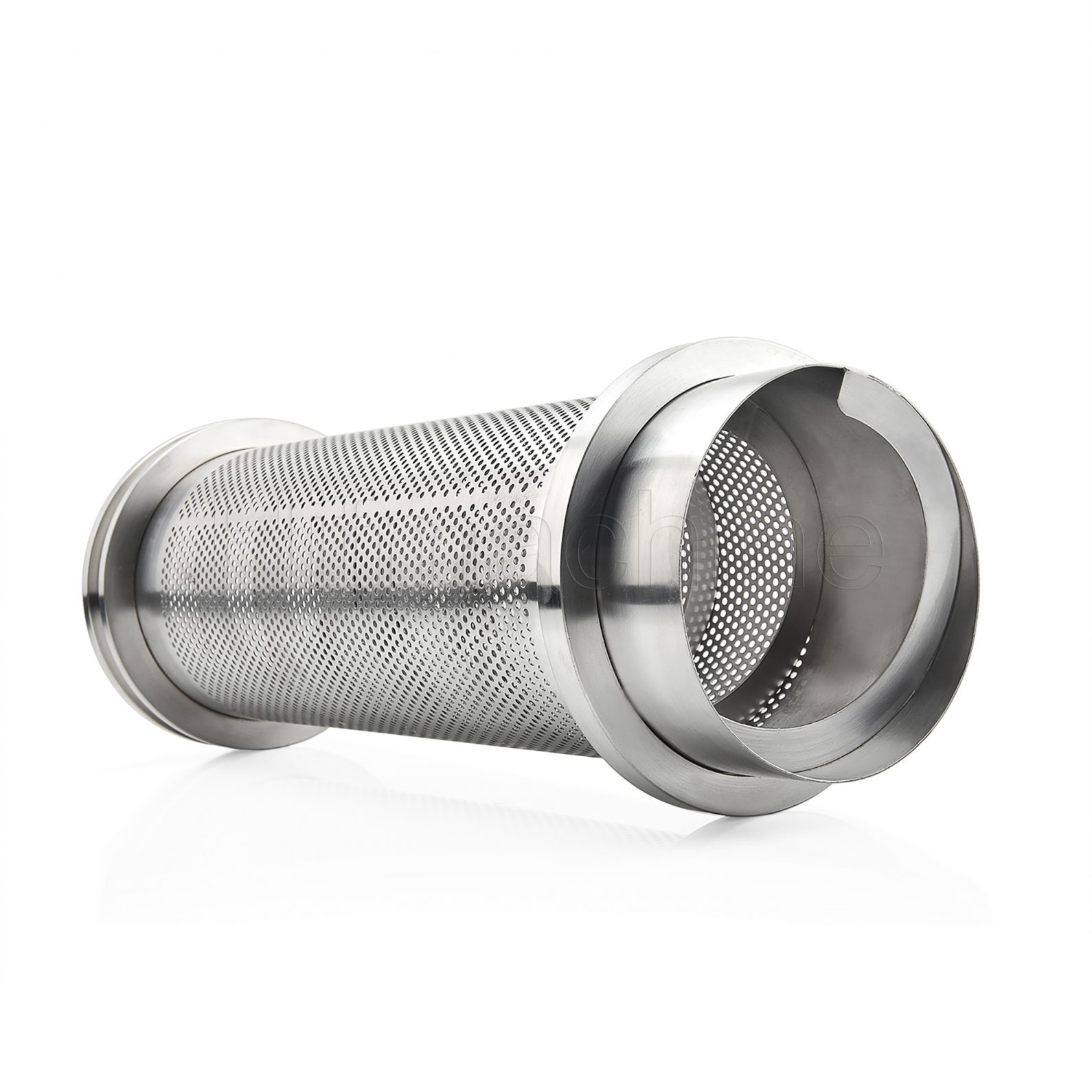

| Sieving cylinder diameter | 130mm |
| Sieving cylinder rotation speed | 0-30r/min |
| Power | 60W |
| Power supply | 110V 60Hz/220V 50Hz |
| Dimensions | 750*320*1030mm |
| Weight | 37kg |
