Electric Rotary Tablet Press Machine ZP-9B Enhanced Type
Electric Rotary Tablet Press Machine ZP-9B Enhanced Type
$5,999.00 USD

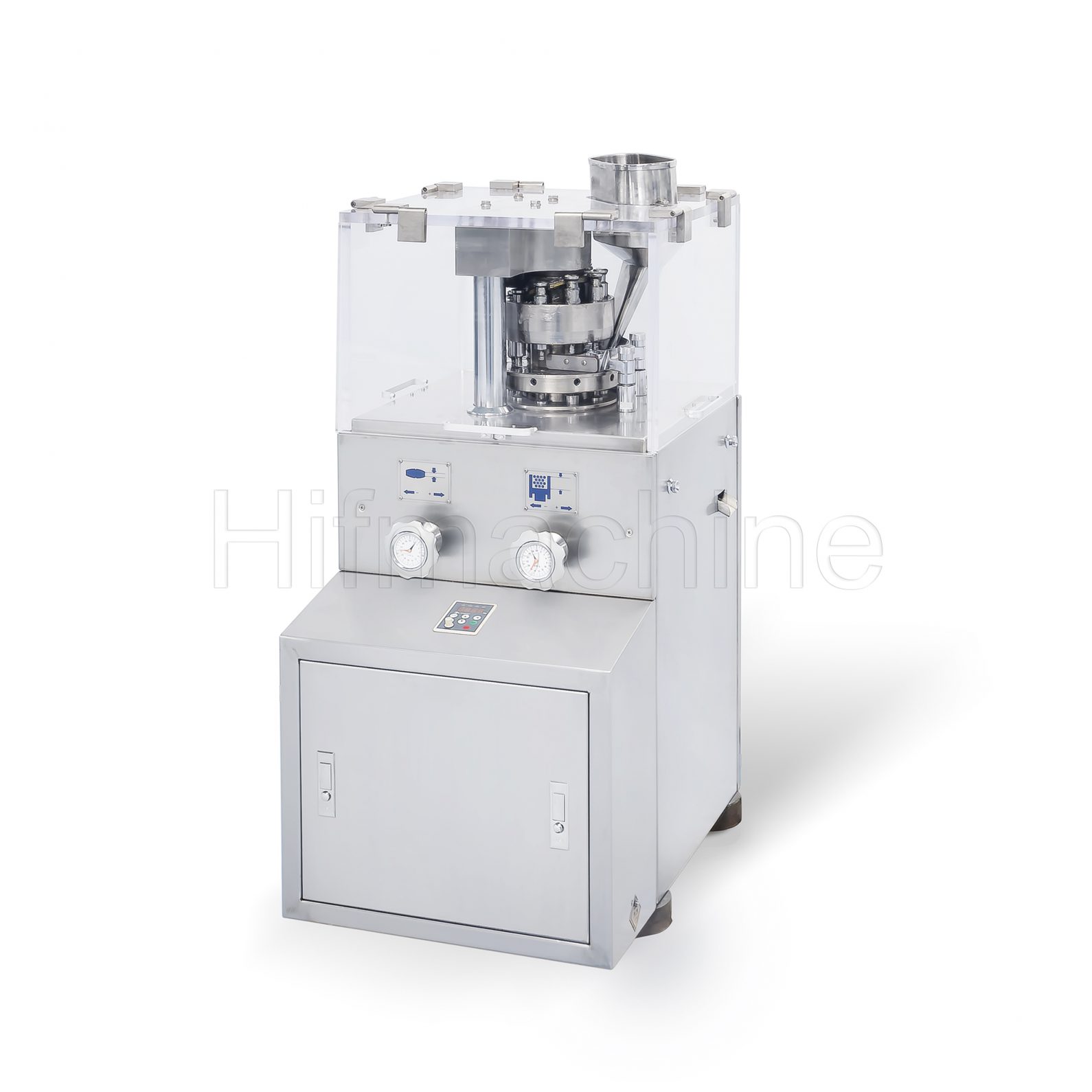

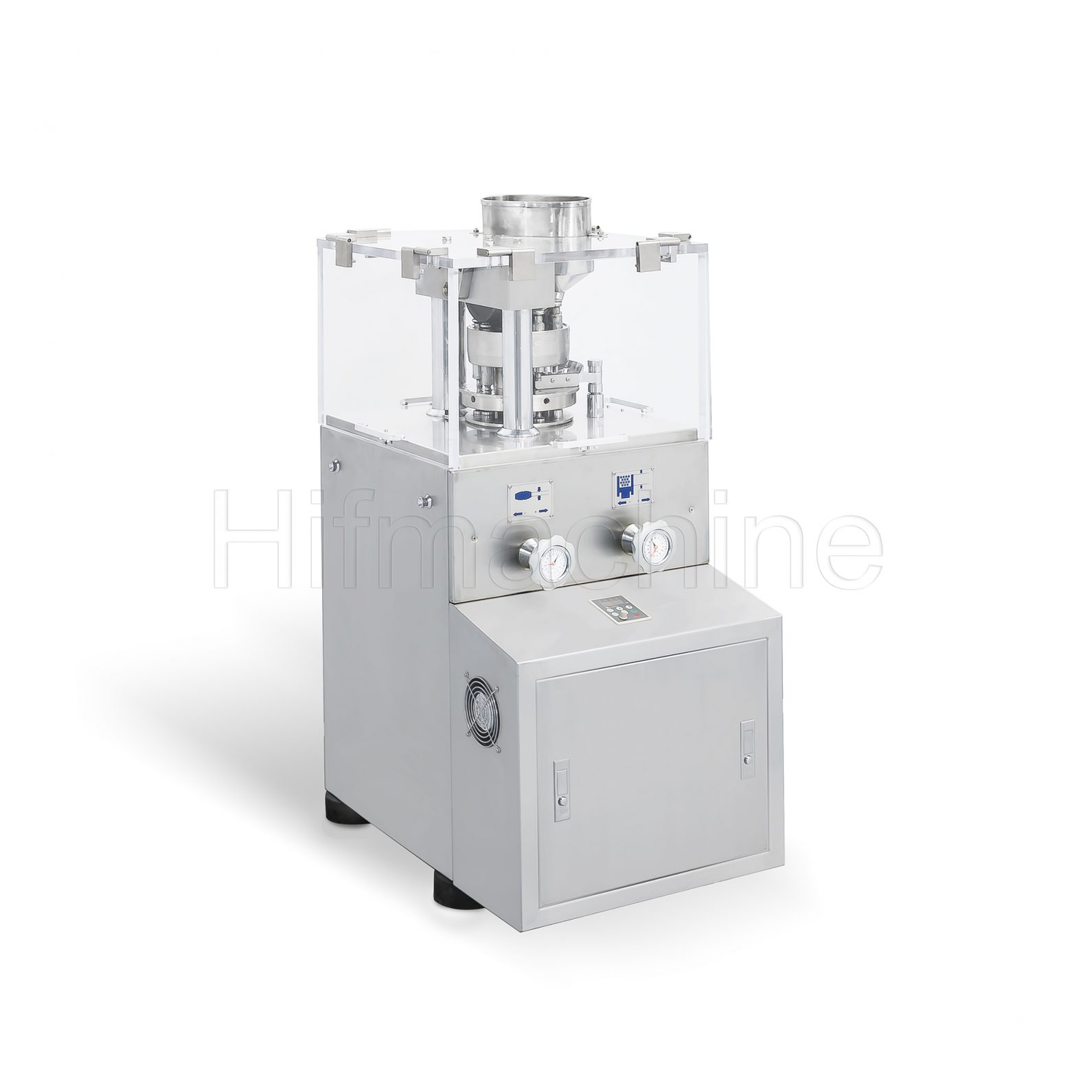

The electric rotary tablet press machine ZP-9B enhanced type is a single press type automatic rotary continuous tablet press machine used for the compression of special-shaped and round tablets, which is suitable for laboratory, small-scale product processing or small-scale production industries, etc.
Remarks
- The overall structure of the equipment is reasonable, with the advantages of beautiful appearance, small floor space, high production efficiency, low energy consumption, easy operation, etc.
- The rack is made of stainless anti-corrosion materials and the surface is specially polished to prevent cross-infection, which complies with GMP standards.

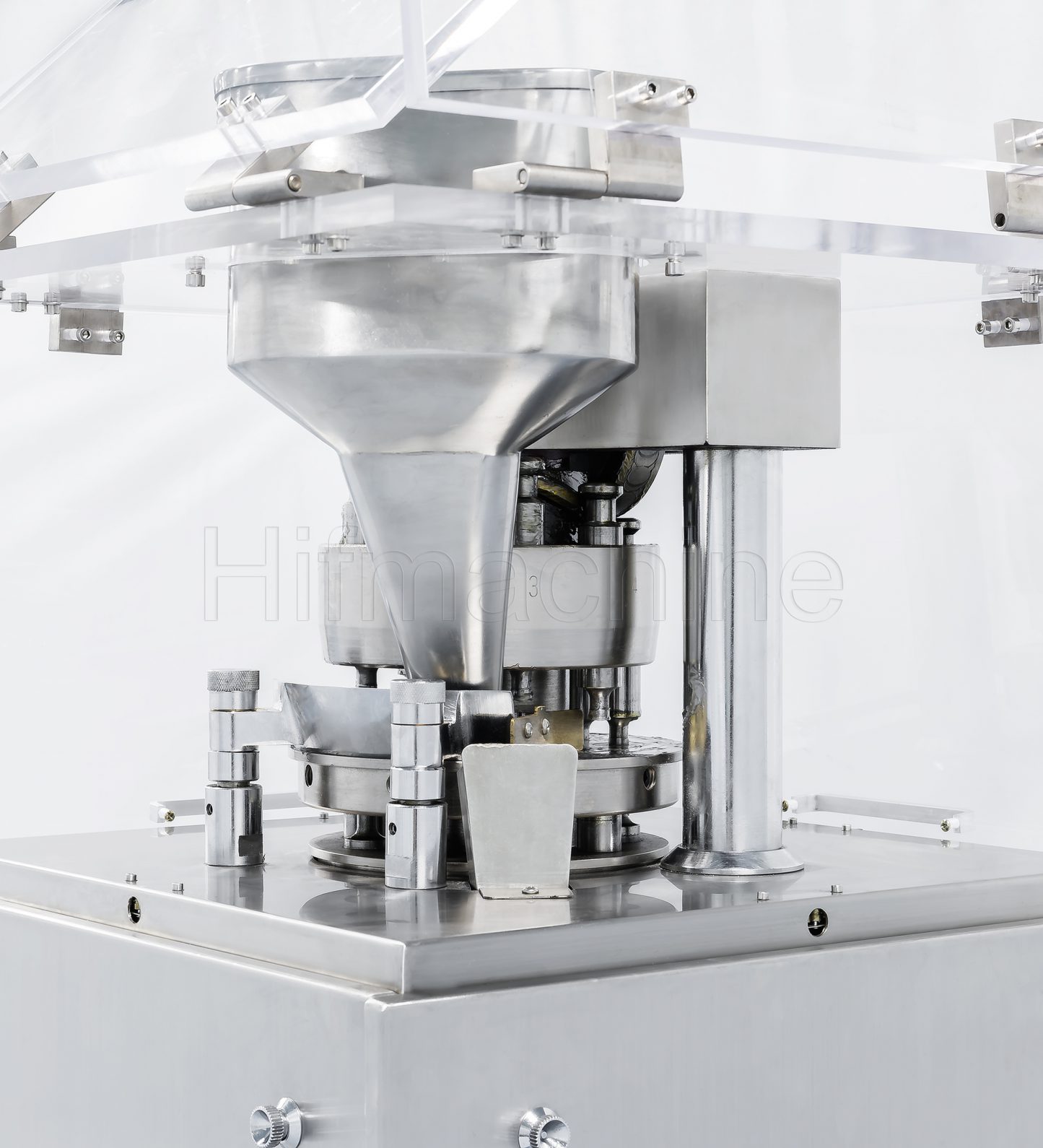

- Through the organic transparent feeder window, the operation process of the tablet can be observed at any time. The window can be opened for easy cleaning and maintenance.
- There is overload protection to ensure the safety of the equipment.
| Model | ZP-5B | ZP-7B | ZP-9B |
|---|---|---|---|
| Number of turret dies (pairs) | 5 | 7 | 9 |
| Maximum tablet output (tablets/h) | 10,000 | 12,000 | 14,000 |
| Maximum working pressure (kN) | 60 | ||
| Maximum tablet diameter (mm) | 20 | ||
| Maximum tablet thickness (mm) | 6 | ||
| Maximum filling depth (mm) | 15 | ||
| Turret working diameter (mm) | 200 | ||
| Turret speed (r/min ) | 0-30 | ||
| Middle die diameter (mm) | 26 | ||
| Middle die height (mm) | 22 | ||
| Upper and lower punch diameter (mm) | 22 | ||
| Upper and lower punch length (mm) | 115 | ||
| Overall dimensions (mm) | 480*635*1100 | ||
| Machine weight (kg) | 330 | ||
| Motor power (kW) | 2.2 | ||
| Voltage (V) | 220 | ||
