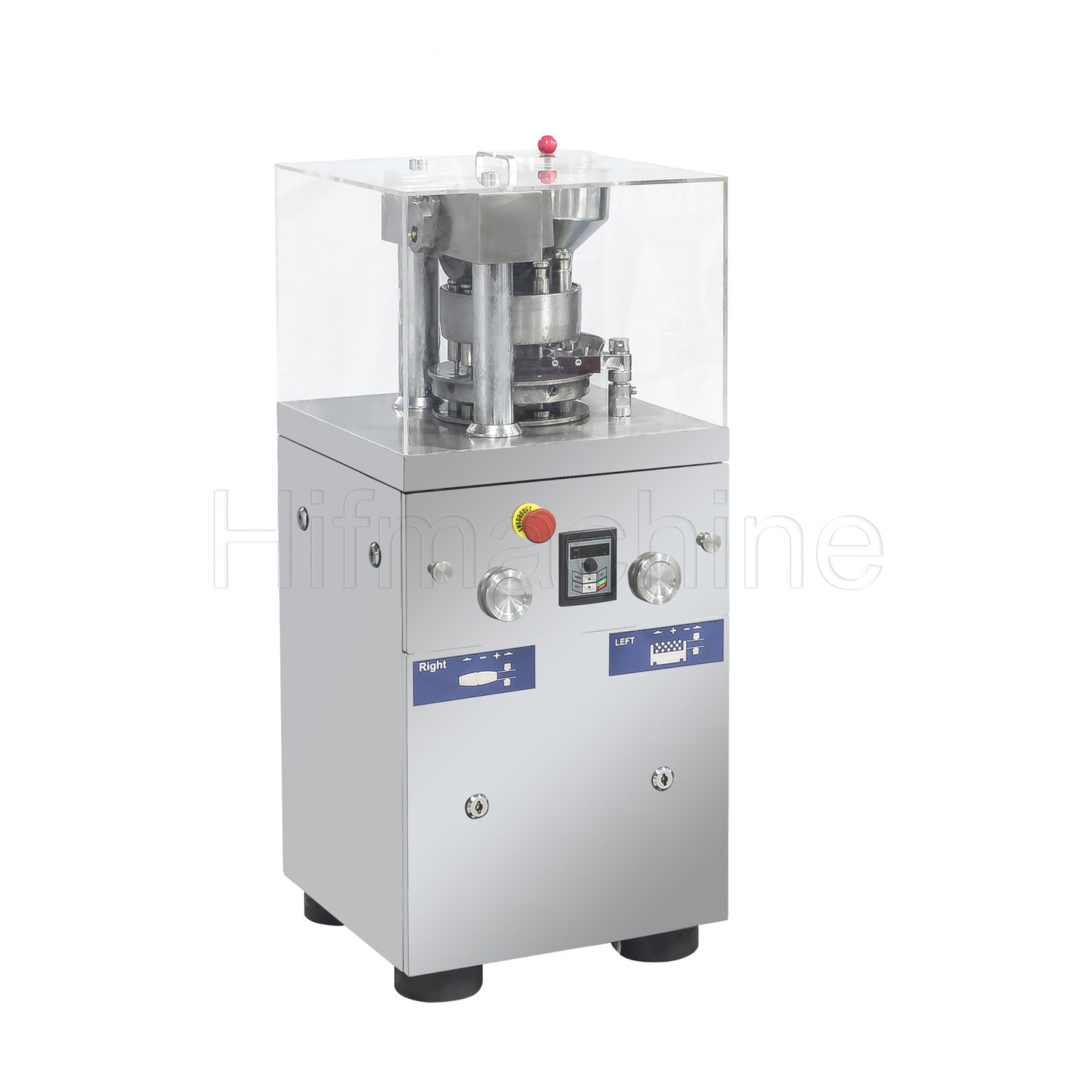

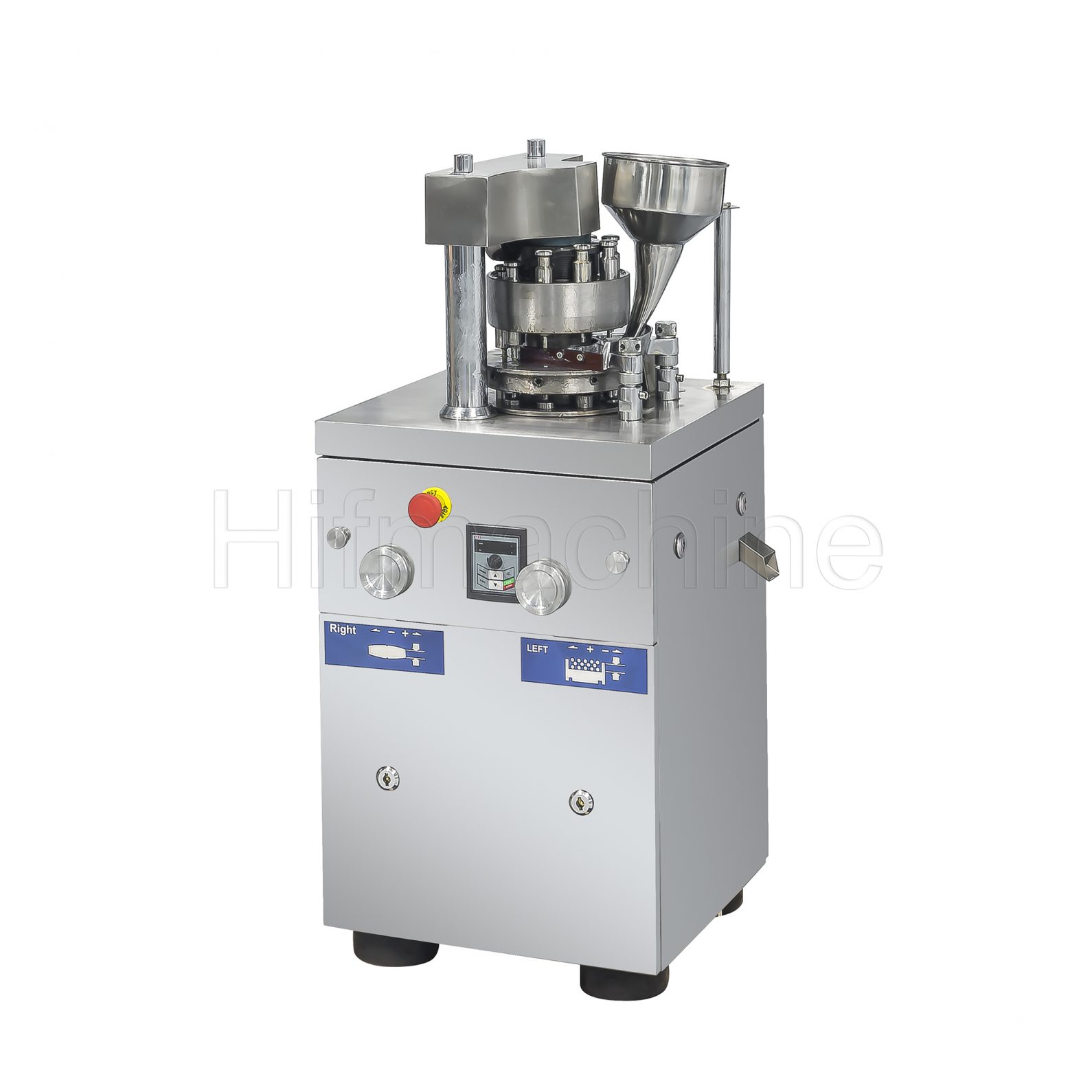

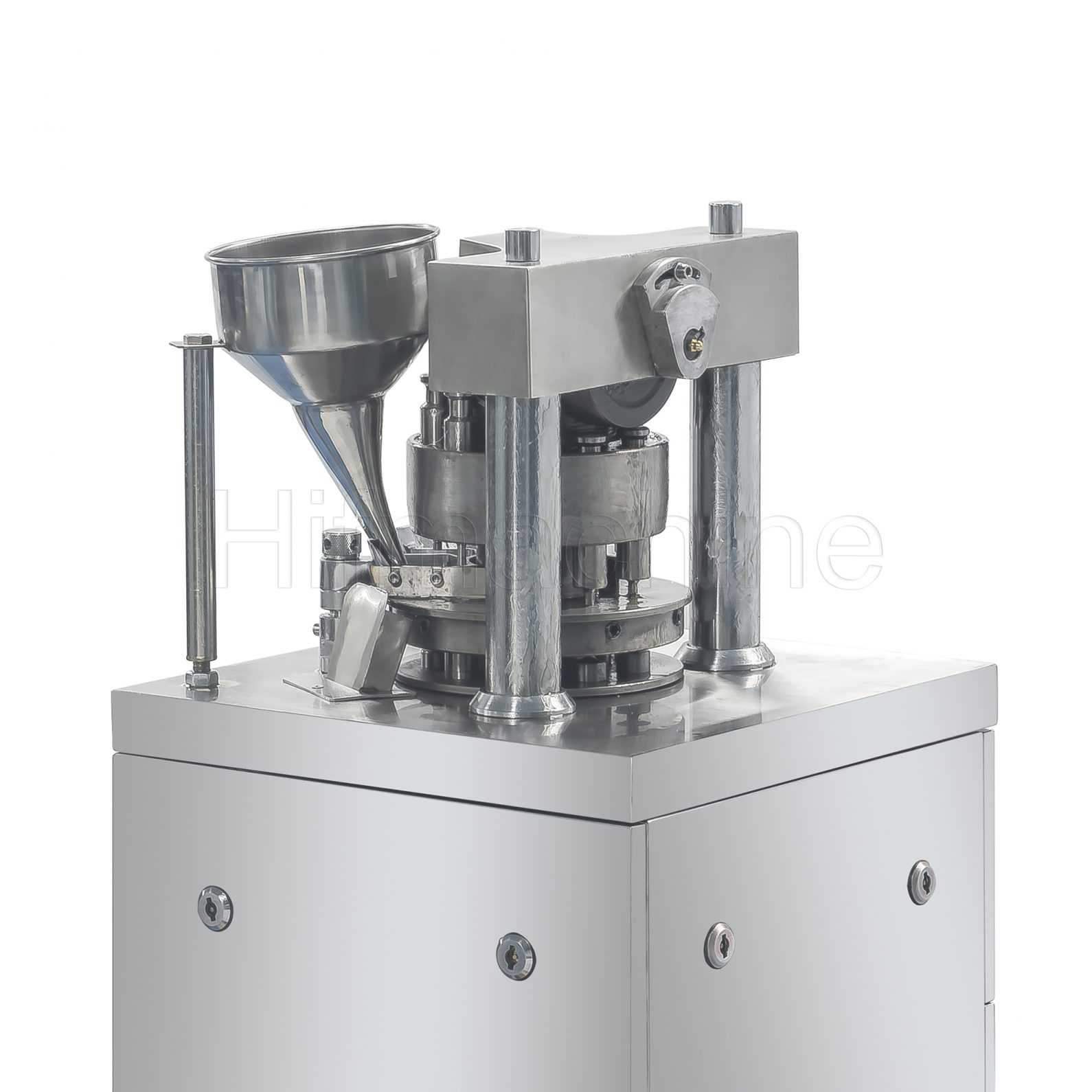

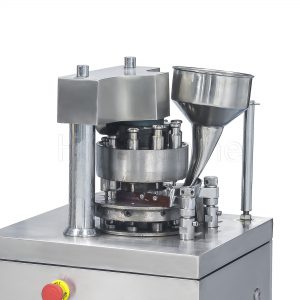

Rotary Tablet Press ZP-9
Rotary Tablet Press ZP-9
$3,499.00 USD
This machine is a small tablet pressing machine for small batch production. It is the first choice to judge whether granular raw materials can be pressed into tablets.
Within the pressure range of the machine, it can press the granular raw materials with powder content less than 10% into round, special-shaped and lettering tablets of 4~12 mm.
It is mainly used for the manufacture of tablets in pharmaceutical, and it also can be applied in the chemical, food, electronic and other industries.
Remarks
- This machine is applicable (within the scope of the pressure of the machine) to granular raw materials with the contents of powder (with the size being above 100 mesh) not to be more than 10%.
- This machine is applicable to pressing engraved or non-engraved round tablets with the diameter being between 4 and 12mm.
- This machine is not applicable to semi solids, wet granules, raw materials with a low melting point or easy to get wet or non-granular powder.
- It is mainly used for the production of tablet in pharmaceutical industry.
| Punch quantity (set) | 9 | 7 | 5 |
|---|---|---|---|
| Max. tablet pressure (kN) | 40 | 40 | 40 |
| Max. tablet diameter (mm) | 12 | 12 | 12 |
| Max. tablet thickness (mm) | 6 | 6 | 6 |
| Max. filling depth (mm) | 15 | 15 | 15 |
| Max. production capacity (pills/h) | 16,200 | 12,600 | 9,000 |
| Turntable working diameter (mm) | 200 | 200 | 200 |
| Turntable speed (r/min) | 0~40 | 0~40 | 0~40 |
| Diameter of middle punch (mm) | 26 | 26 | 26 |
| Height of middle punch (mm) | 22 | 22 | 22 |
| Diameter of upper and lower punch (mm) | 22 | 22 | 22 |
| Length of upper and lower punch (mm) | 115 | 115 | 115 |
| Motor power (kW) | 1.5 | 1.5 | 1.5 |
| Voltage (V) | 220 | 220 | 220 |
| Overall dimension (mm) | 475*465*1030 | 475*465*1030 | 475*465*1030 |
| Machine weight (kg) | 230 | 230 | 230 |
