Rotary Tablet Press ZPW-15D/17D/19D
Rotary Tablet Press ZPW-15D/17D/19D

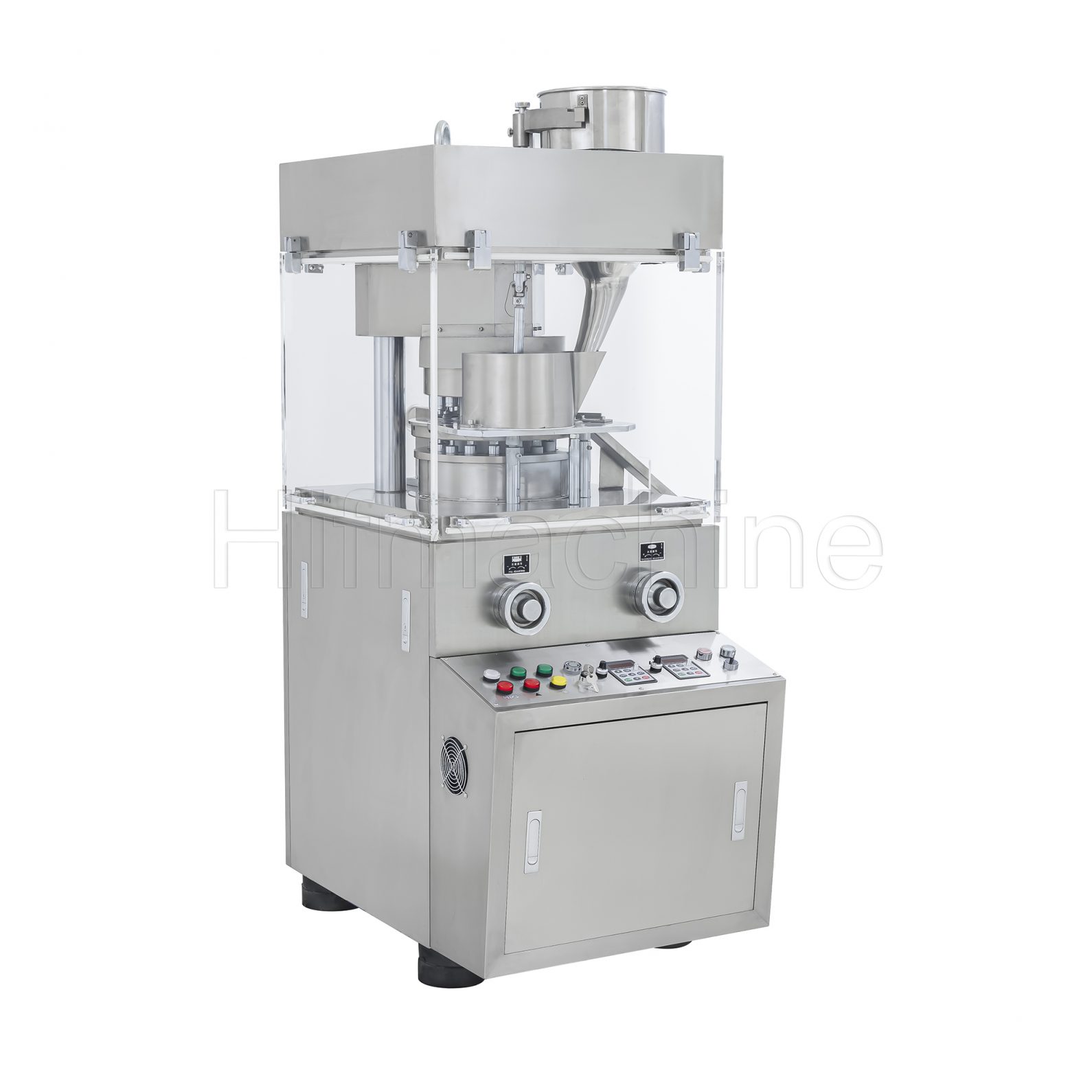

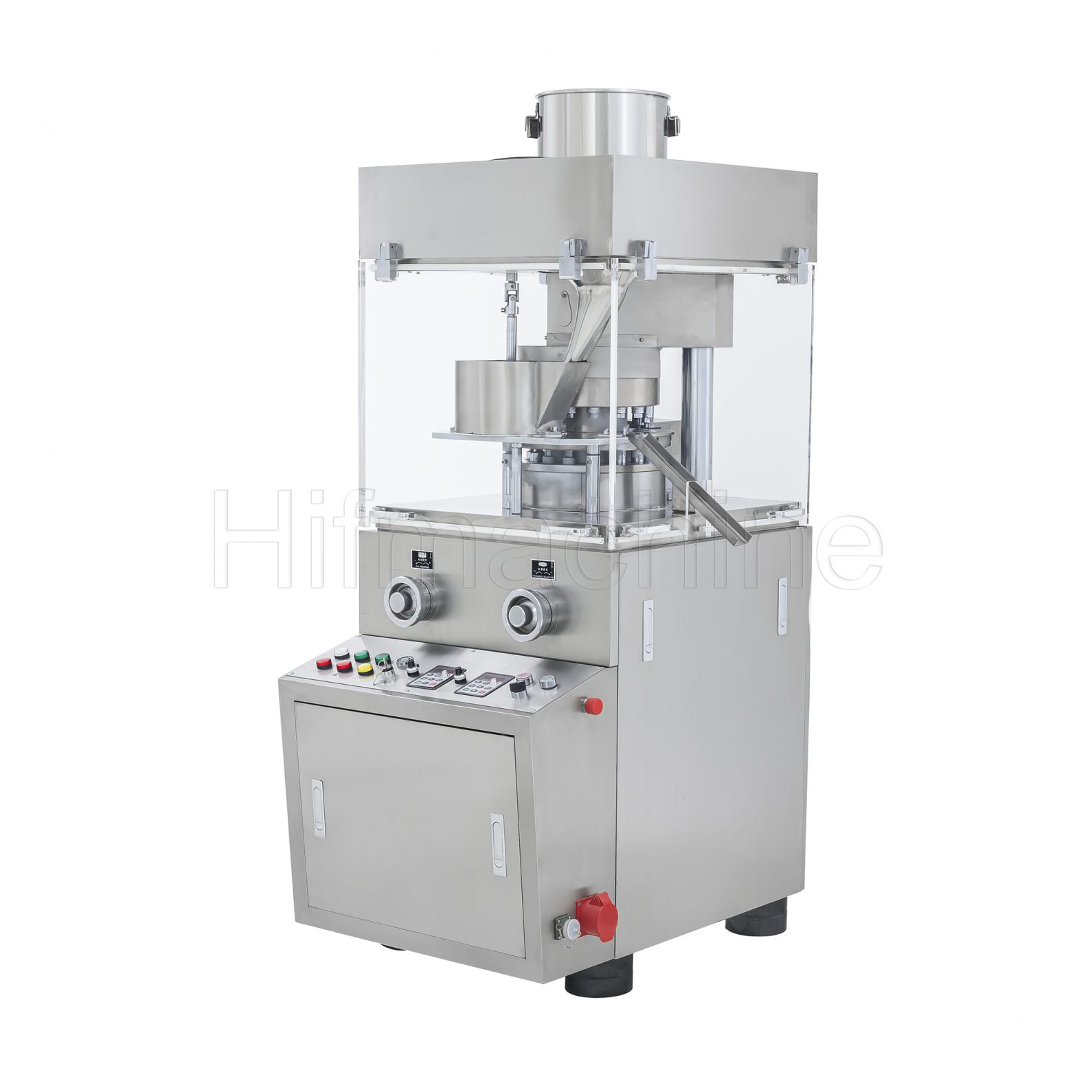

Rotary Tablet Press ZPW-15D is a tablet pressing machine with automatic rotation and continuous tablet pressing. It can press all kinds of granular raw materials into tablets, but not suitable for pressing semi-solid, moist powder or non-granular superfine powder. It is mainly used in pharmaceutical, chemical, ceramic, food, electronic, plastic and powder metallurgy industries.
Remarks
- The upper and lower pressing wheels adopt the rolling friction, which helps reduce the working resistance and the power loss.
- The adjustment and control mechanisms of filling amount, tablet thickness and rotation speed are all under centralized control, which makes operation easy.
- This machine adopts enclosed oil-immersed worm gear drive to reduce power loss and prolong the service life of worm gear.
- The peripheral cover is a fully-enclosed structure and the sealed pressing chamber and driving mechanism are completely separated, which can prevent dust from flying and avoid cross contamination of oil.
- This machine is equipped with an independent vacuum cleaner, whose high efficiency in dust collection ensures the normal operation of the machine.
| Model | ZPW-15D | ZPW-17D | ZPW-19D |
|---|---|---|---|
| Punch quantity (set) | 15 | 17 | 19 |
| Max. tablet pressure (kN) | 60 | 60 | 60 |
| Max. tablet diameter (mm) | 22 | 20 | 13 |
| Max. tablet thickness (mm) | 6 | 6 | 6 |
| Max. filling depth (mm) | 15 | 15 | 15 |
| Max. production capacity (pills/h) | 35,000 | 40000 | 42000 |
| Depth of middle punch (mm) | 22 | 22 | 22 |
| Diameter of middle punch (mm) | 34 | 30 | 26 |
| Diameter of upper and lower punch (mm) | 26 | 22 | 22 |
| Length of upper punch (mm) | 115 | 115 | 115 |
| Length of lower punch (mm) | 115 | 115 | 115 |
| Machine’s coverage area (mm) | 615*890 | 615*890 | 615*890 |
| Machine height (mm) | 1,415 | 1,415 | 1,415 |
| Machine weight (kg) | 1,000 | 1,000 | 1,000 |
