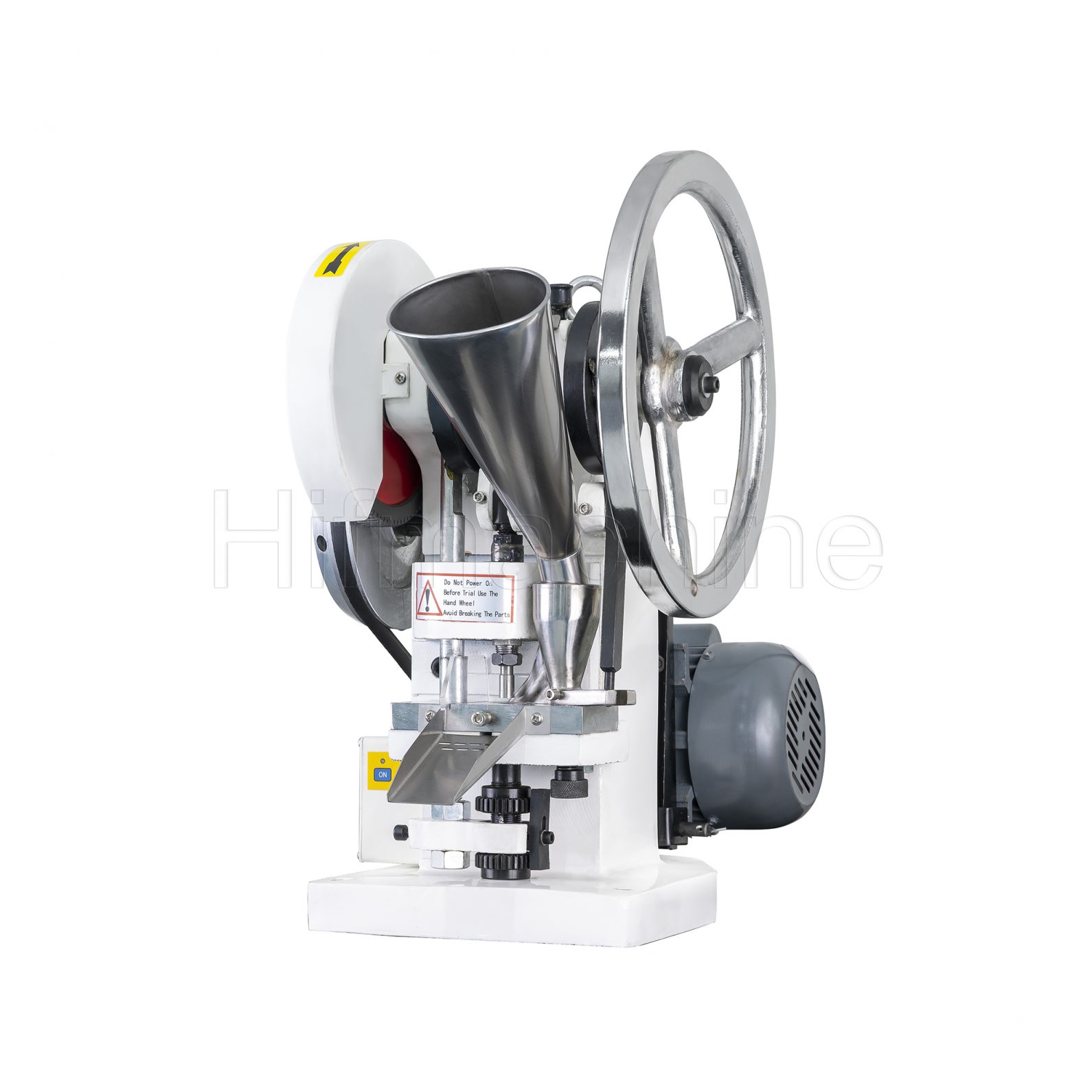

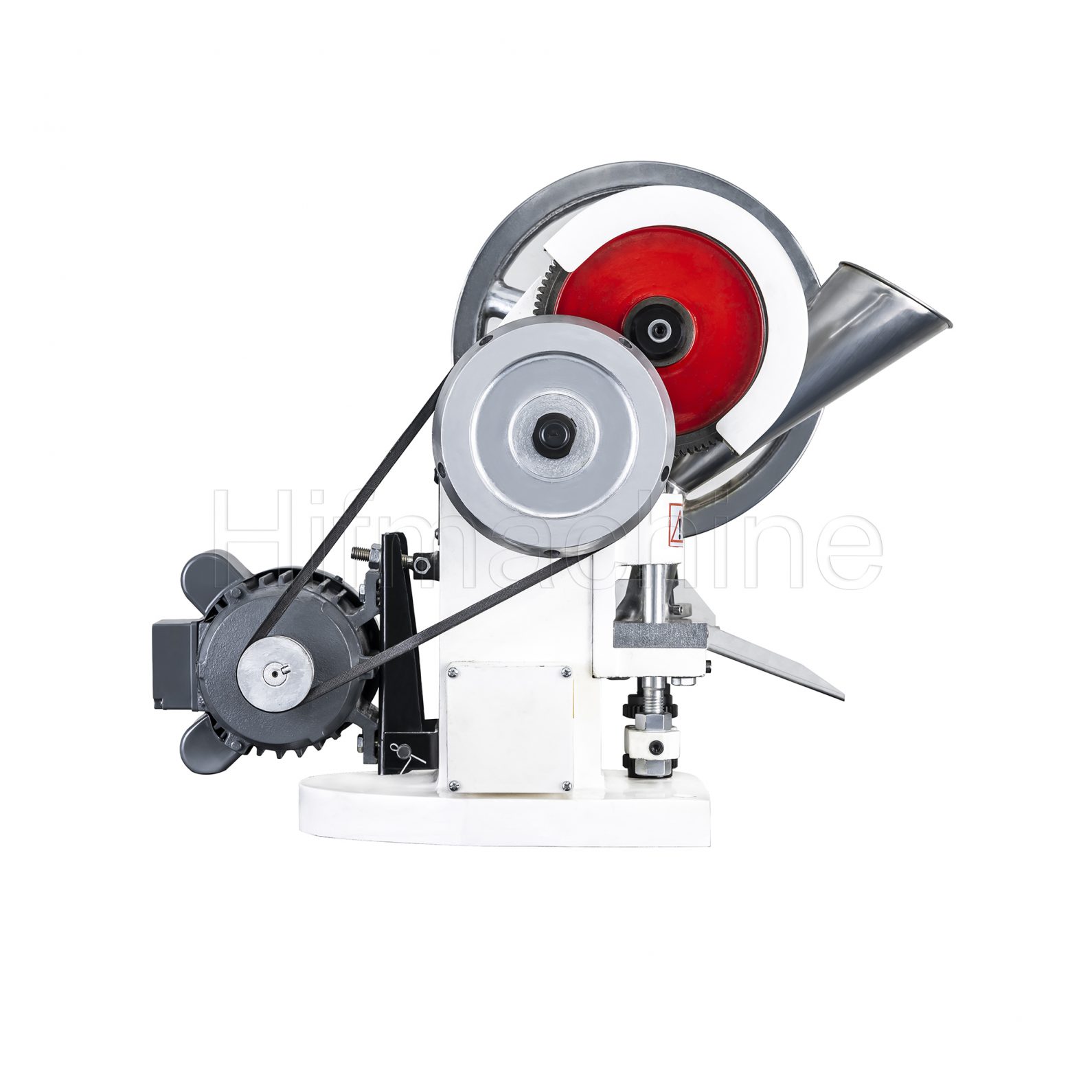

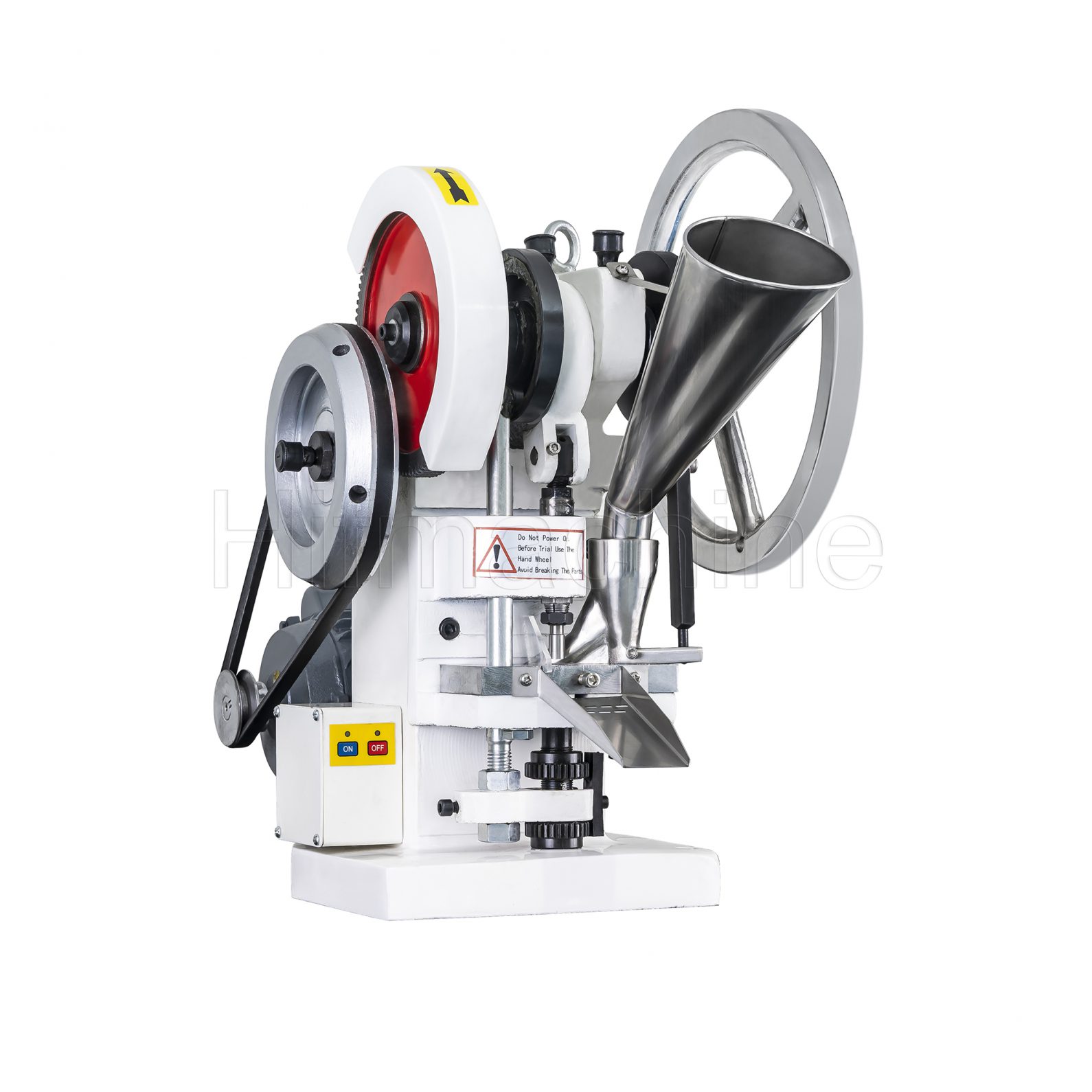

TDP Series Single Punch Tablet Press Machine
TDP Series Single Punch Tablet Press Machine
TDP series single punch tablet press machine, used for pressing different kinds of materials into tablets, can be widely used in pharmacy, chemical, food, hospitals, scientific research units, lab trial production and small batch production. It is suitable for small batch production of tablet making.
This machine has top-of-the-line performance record. It is sturdy, adjustable, operator friendly, easy to maintain, compact and light weight.
Remarks
- This machine comes with a set of round no-logo punch dies. If you want to make other logo, we also provide customized service.
- Read instructions carefully before setting up the machine for the first time.
- This machine must only run towards one direction. Reverse the direction will damage accessories.
- When connecting electricity, the upper punch needs to be at its highest position to protect from damaging to the machine.
| Model | TDP-1.5
|
TDP-5
|
TDP-6
|
|---|---|---|---|
| Max. pressure (kN) | 15 | 50 | 60 |
| Max. dia. of tablet(mm) | 12 | 20 | 25 |
| Max. depth of filling(mm) | 12 | 15 | 18 |
| Capacity (tablets/h) | 5000 | 4500 | 3000 |
| Rotational speed (r/min) | 1400 | 1400 | 1400 |
| Power(W) | 110V 60Hz / 220V 50Hz 0.4kW | 110V 60Hz / 220V 50Hz 0.75kW | 110V 60Hz / 220V 50Hz 1.1kW |
| Weight | 78kg | 120kg | 165kg |
| Dimensions | 570X380X630mm | 650x440x650mm | 750x380x695mm |
