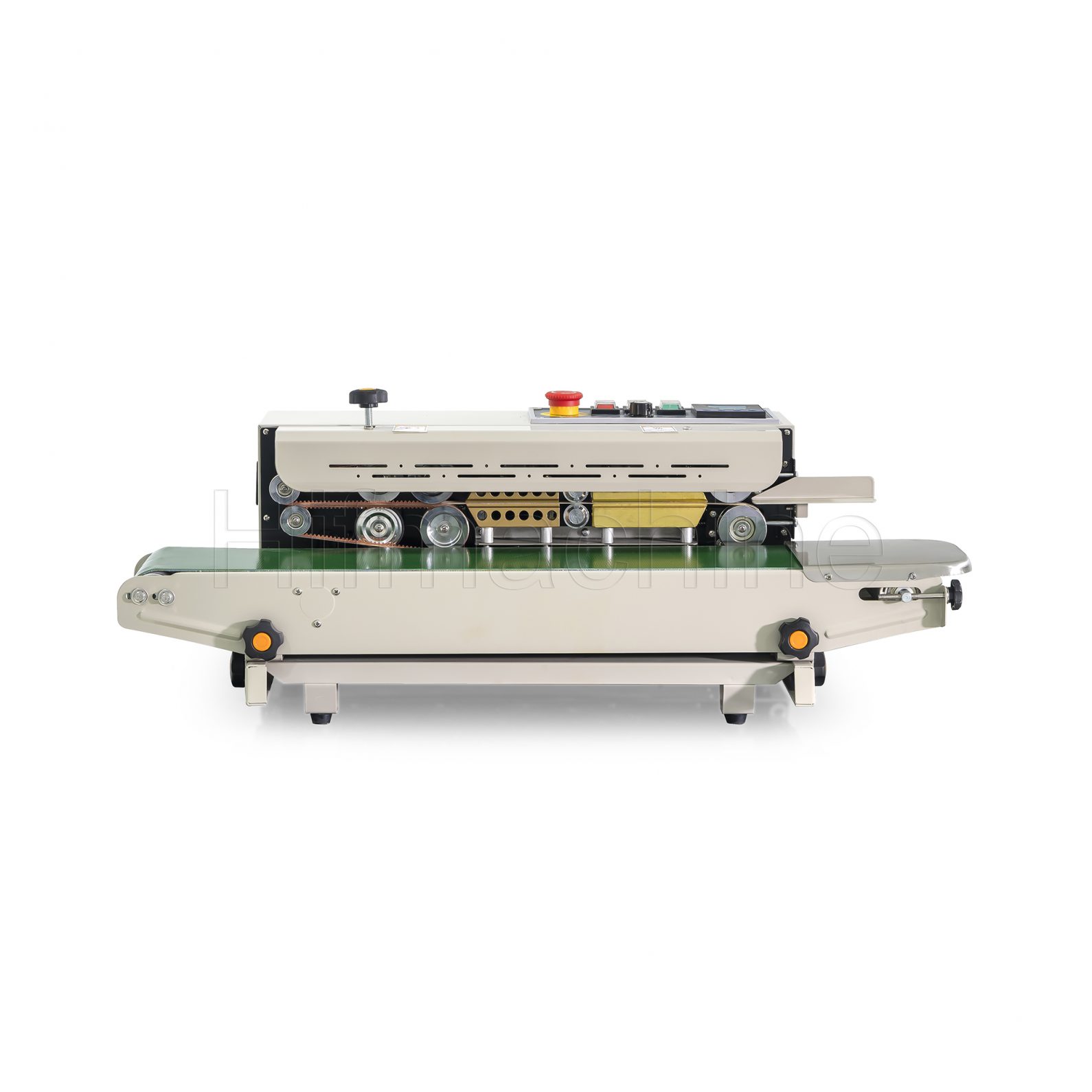

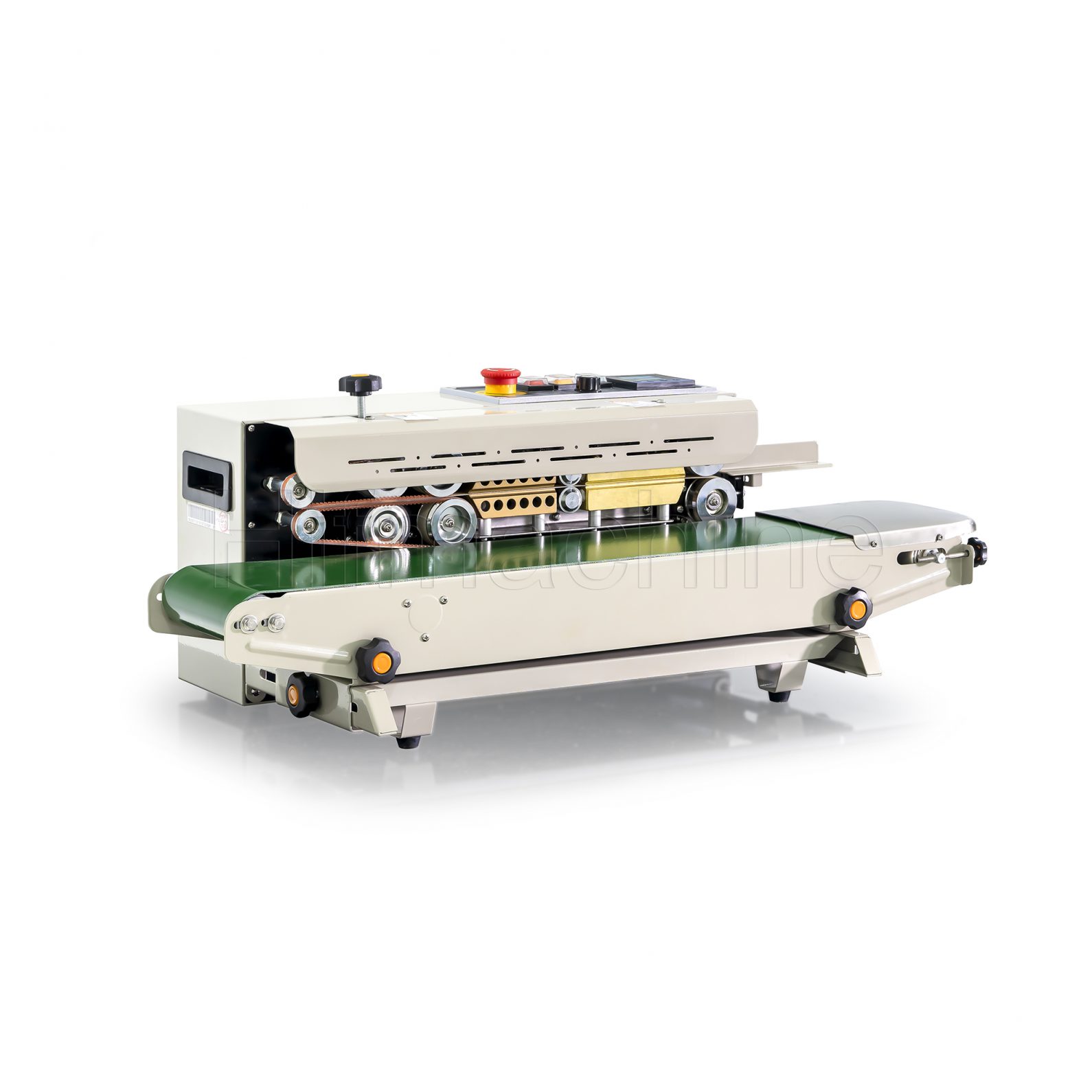

Horizontal Automatic Continuous Sealing Machine CFR-900
Horizontal Automatic Continuous Sealing Machine CFR-900
This machine works on plastic bag of Polyethylene, Polypropylene & Polyolefine Compounds in all sizes.
Electronic temperature control system and automatic transmission device,can control a variety of different shapes of plastic film bags,can be used on a variety of supporting packaging lines,sealing length unrestricted.
Sealing can be done with Production date code, save labor and improve efficiency.
For medicine,pesticide,food,cosmetic,lubricating oil and other industries of aluminum foil,plastic bags seal bags.
The machine can operate for dry food horizontal sealing,vertical operations can be applied to liquid goods packaging sealing.

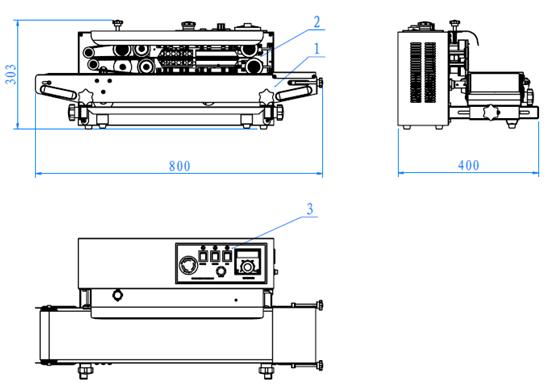

Main Structure
1.Conveyor Part 2.Machine Frame And Sealing Parts 3.Control Parts
Remarks
- Sealing belts are oriented horizontally to allow for easy access and high throughput
- Max loading weight of 3 KGS is ideal for most consumer good.
- Sealing speed and temperature adjustable with film thickness to ensure sealing quality.
- Electronic constant temperature mechanism.
- Stepless speed regulating transmission motor.
- Flexible height and wide changed with packet size.
| Model | CFR-900 |
|---|---|
| Sealing Width | 6mm-14mm |
| Sealing Length | 0~Limitless |
| Film Thickness | 0.03-0.8mm |
| Printing Words Number | 39 |
| Sealing Speed | Max. 12m/min |
| Temperature Range | 0~300°C |
| Conveyor Size | 775x140mm (L*W) |
| Conveyor Load | Max. 3kg |
| Power | 500W |
| Voltage | 220V 50Hz/110V 60Hz |
