Metal Detector T68
Metal Detector T68
$16,479.00 USD
Metal Detector T68 is a specialized metal detector that aims to detect and reject metal within tablets, capsules or granules.
Outfitted with imported control system which is of high precision, high sensitivity and high stability, this machine can be applied to detecting and removing magnetic and non-magnetic metal foreign bodies in tablets and capsules, and even small metal chips and metal wires embedded in the product.
The machine can detect 100% of running materials, reduce material loss, avoid drug pollution caused by metal foreign bodies, and keep the pollution to the lowest limit.

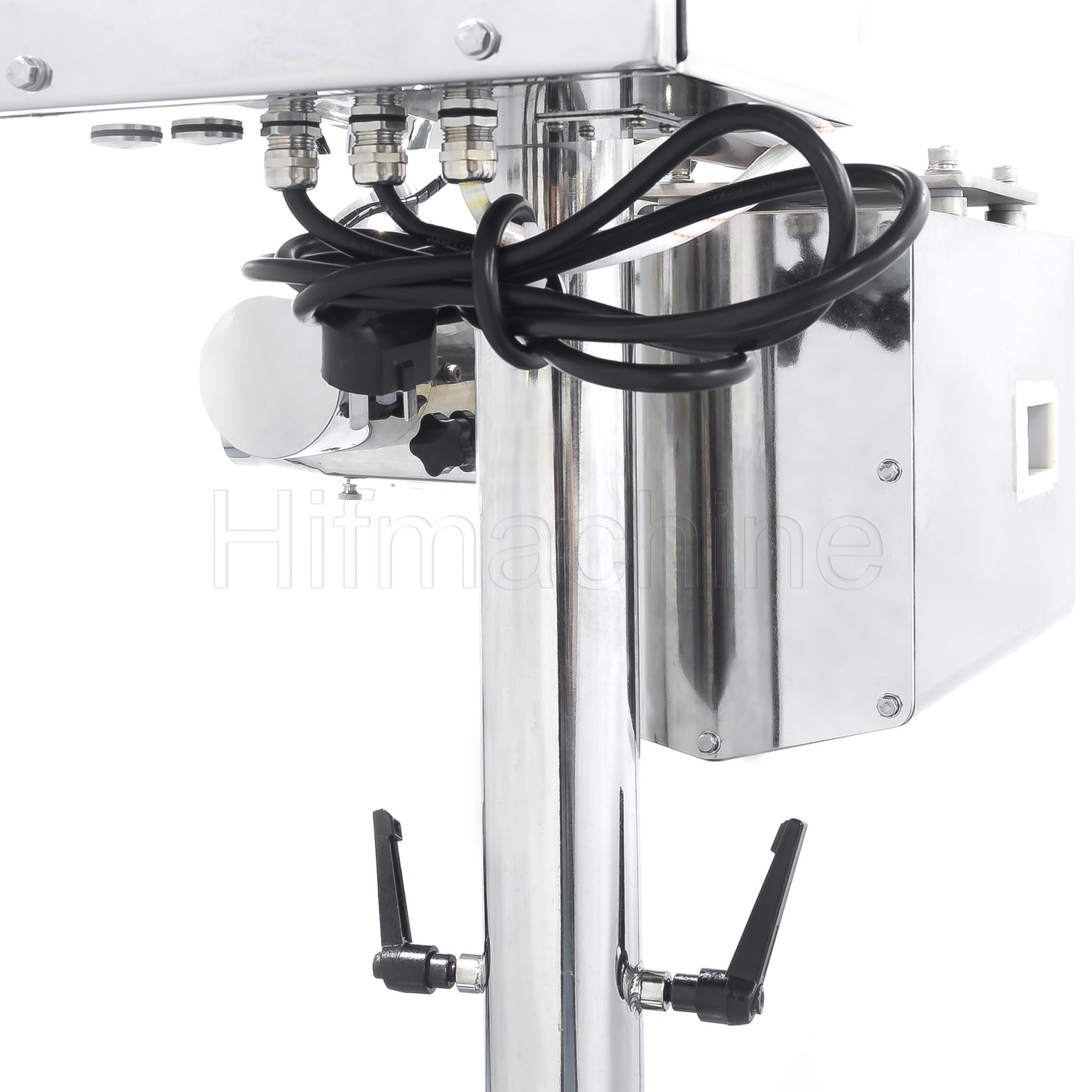

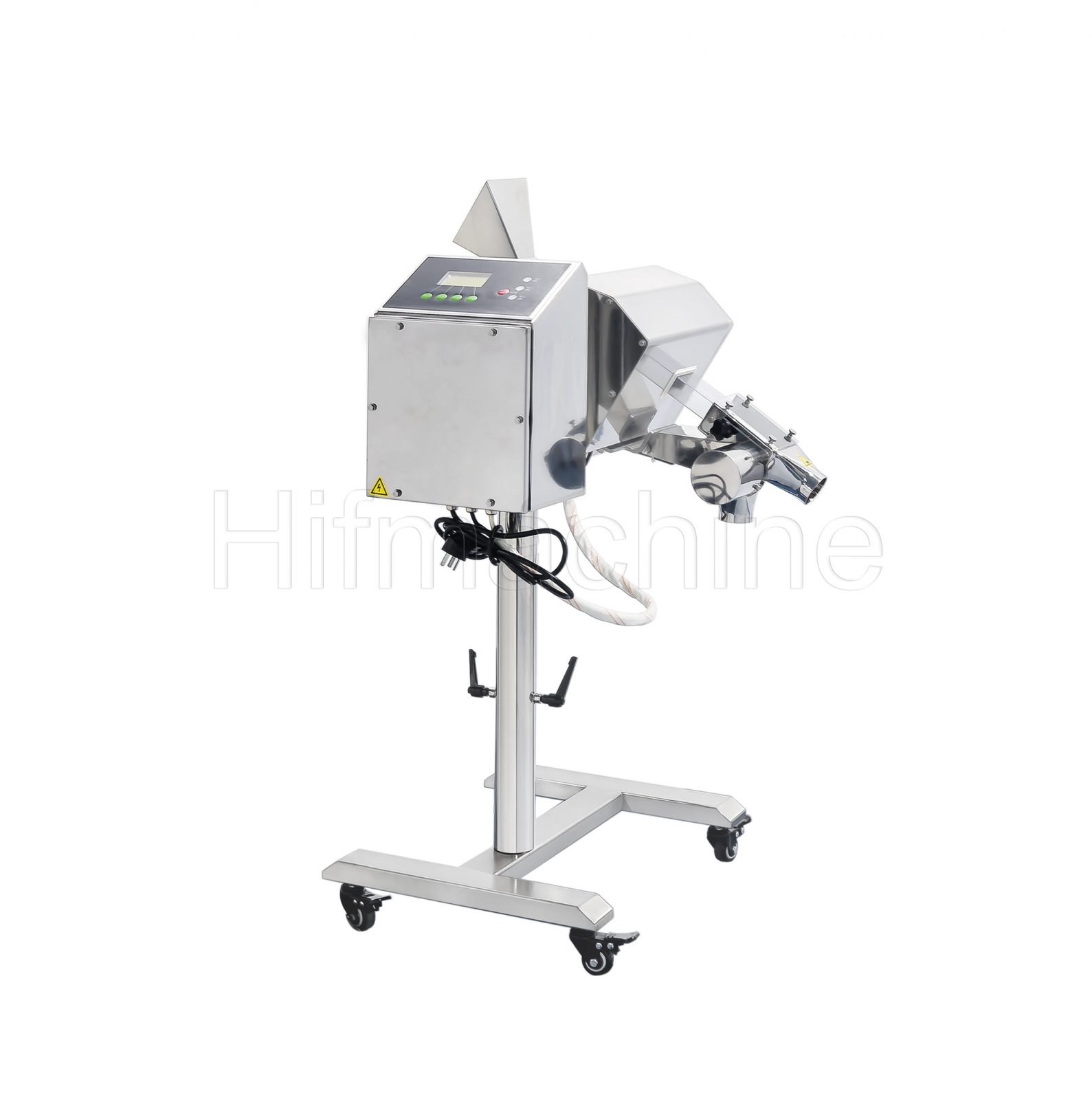

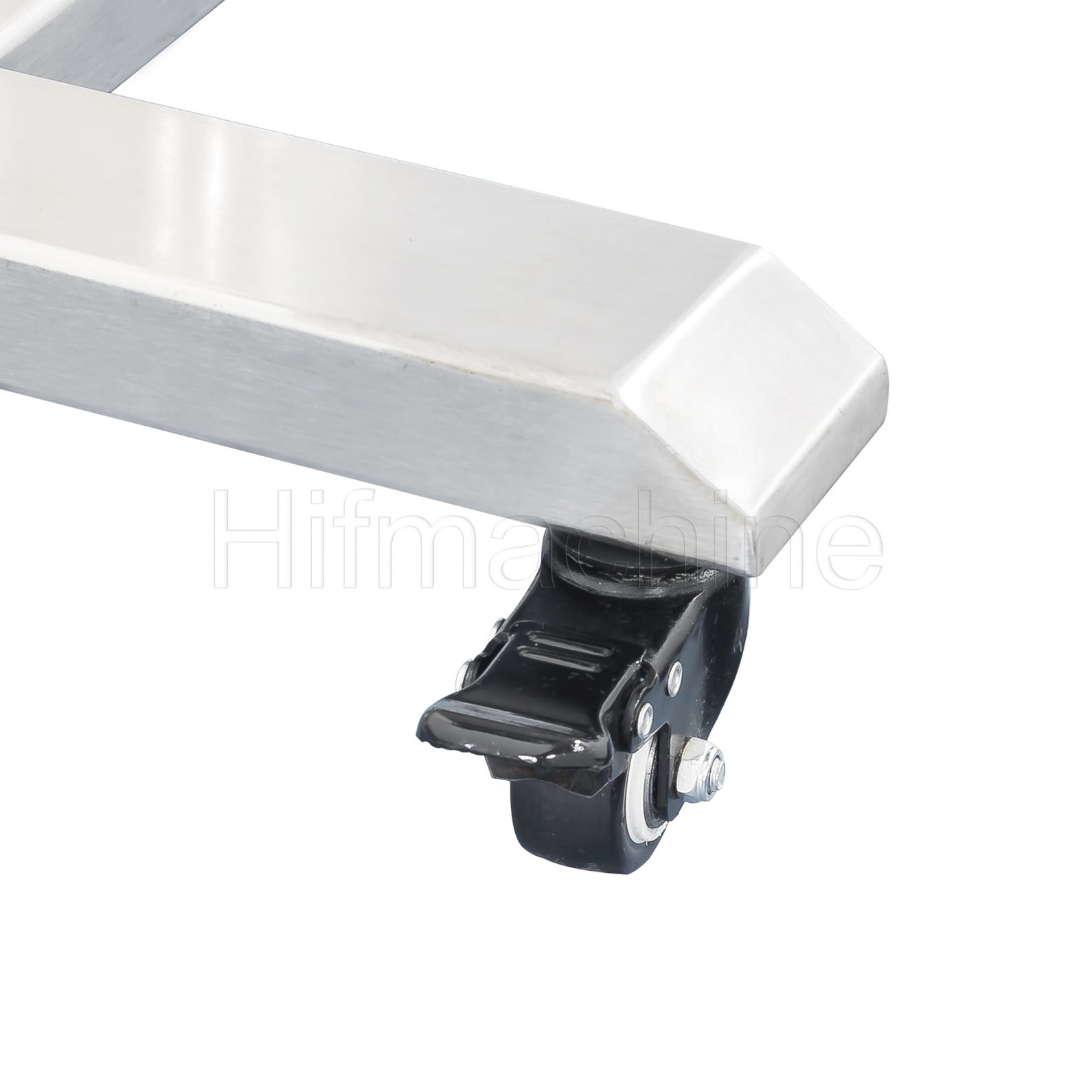

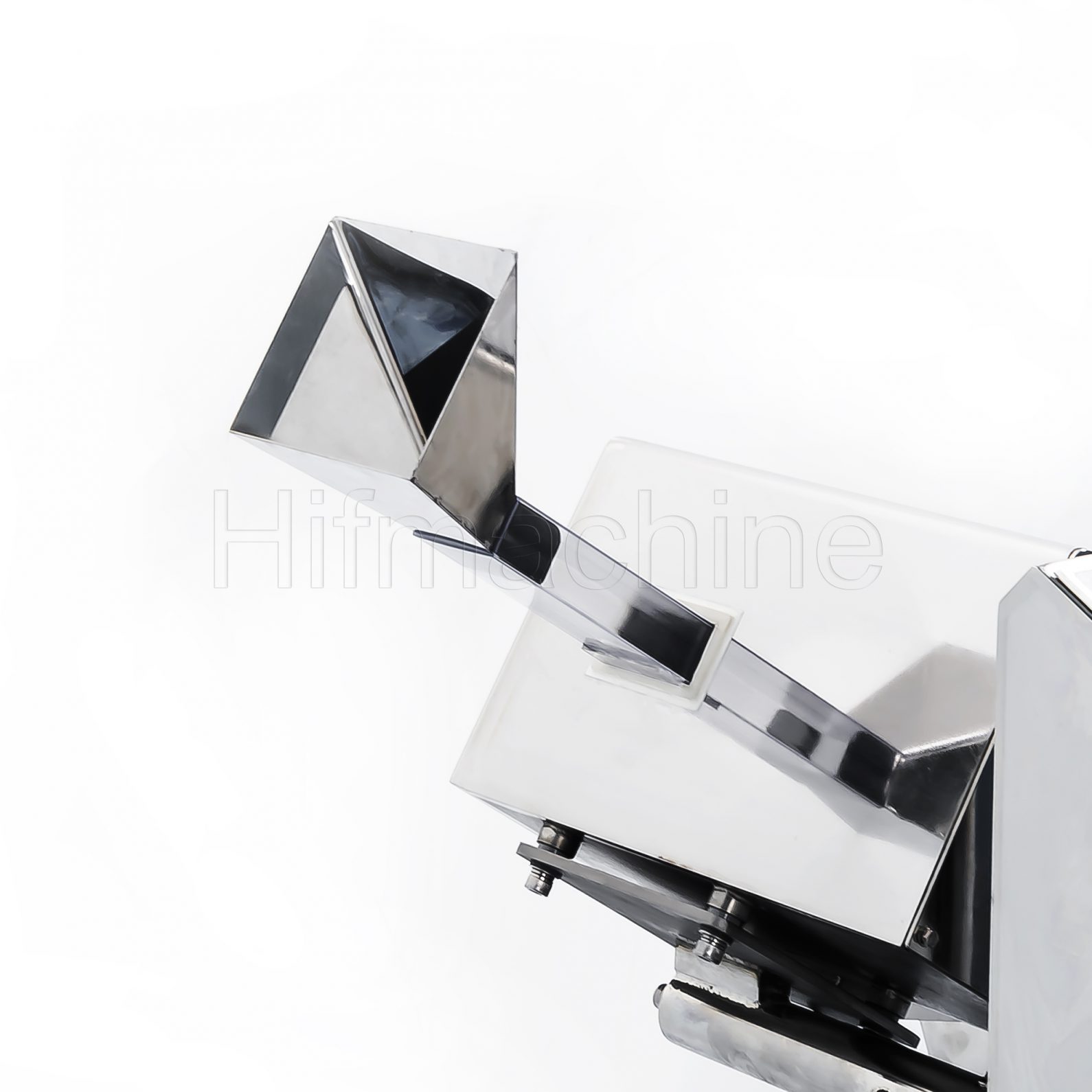

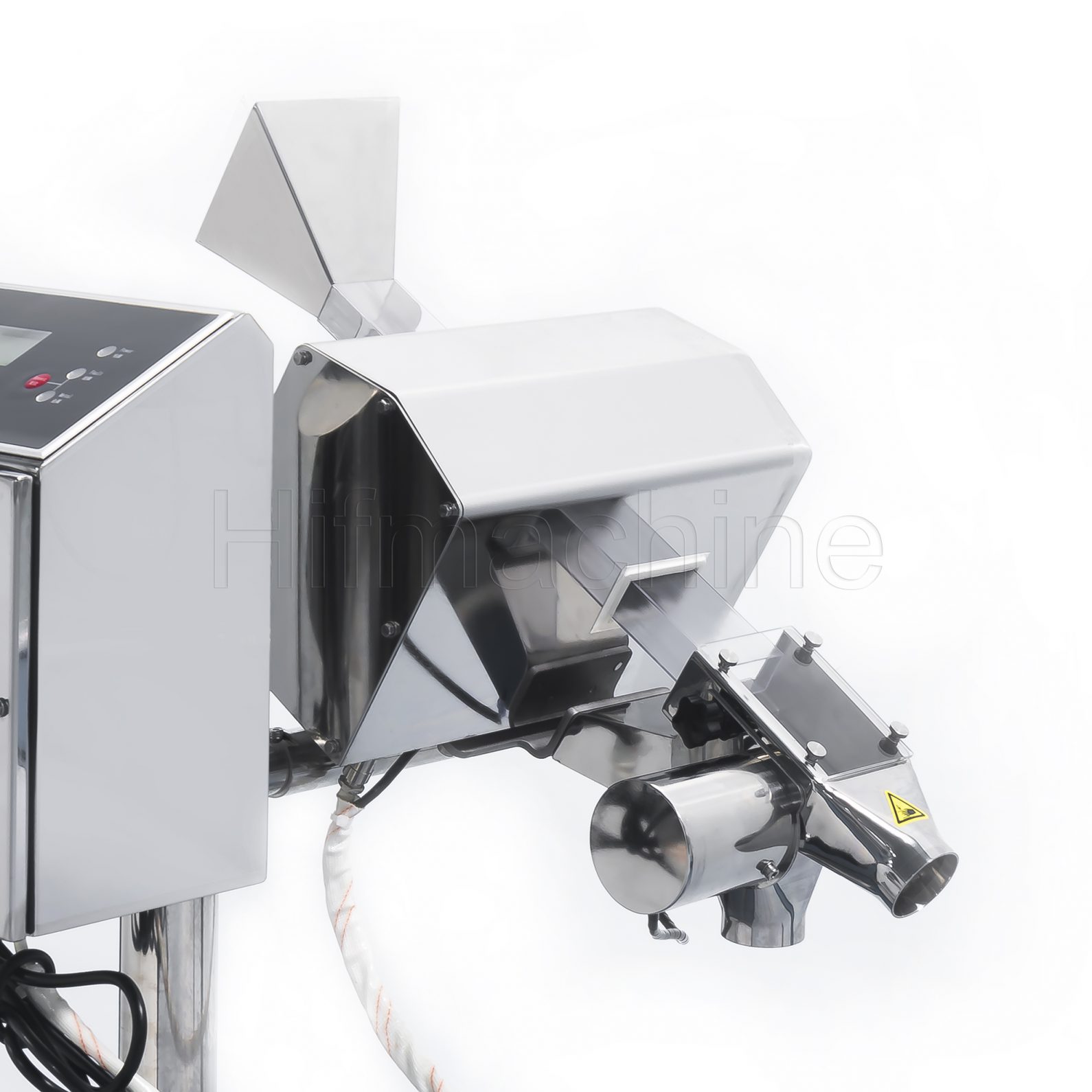

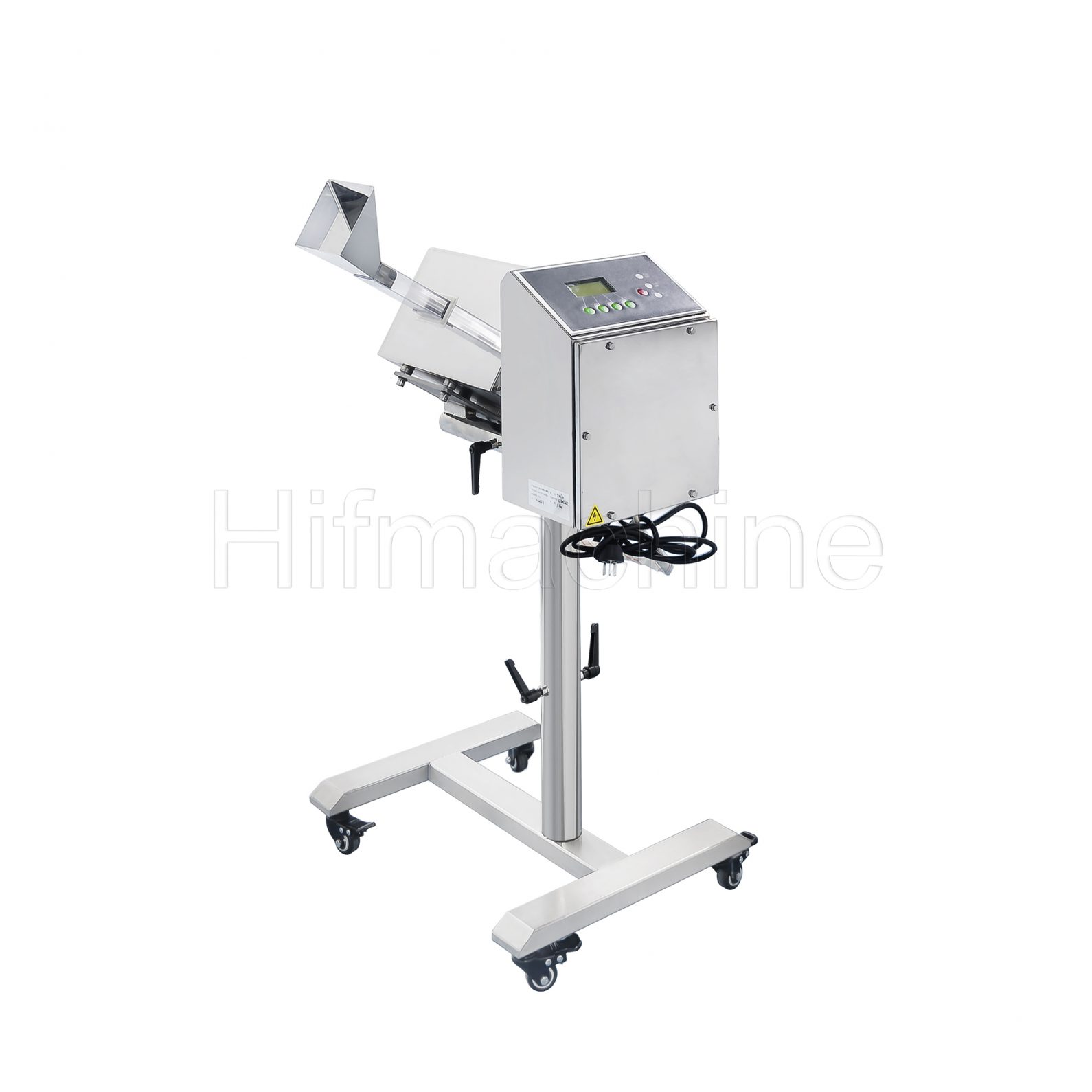

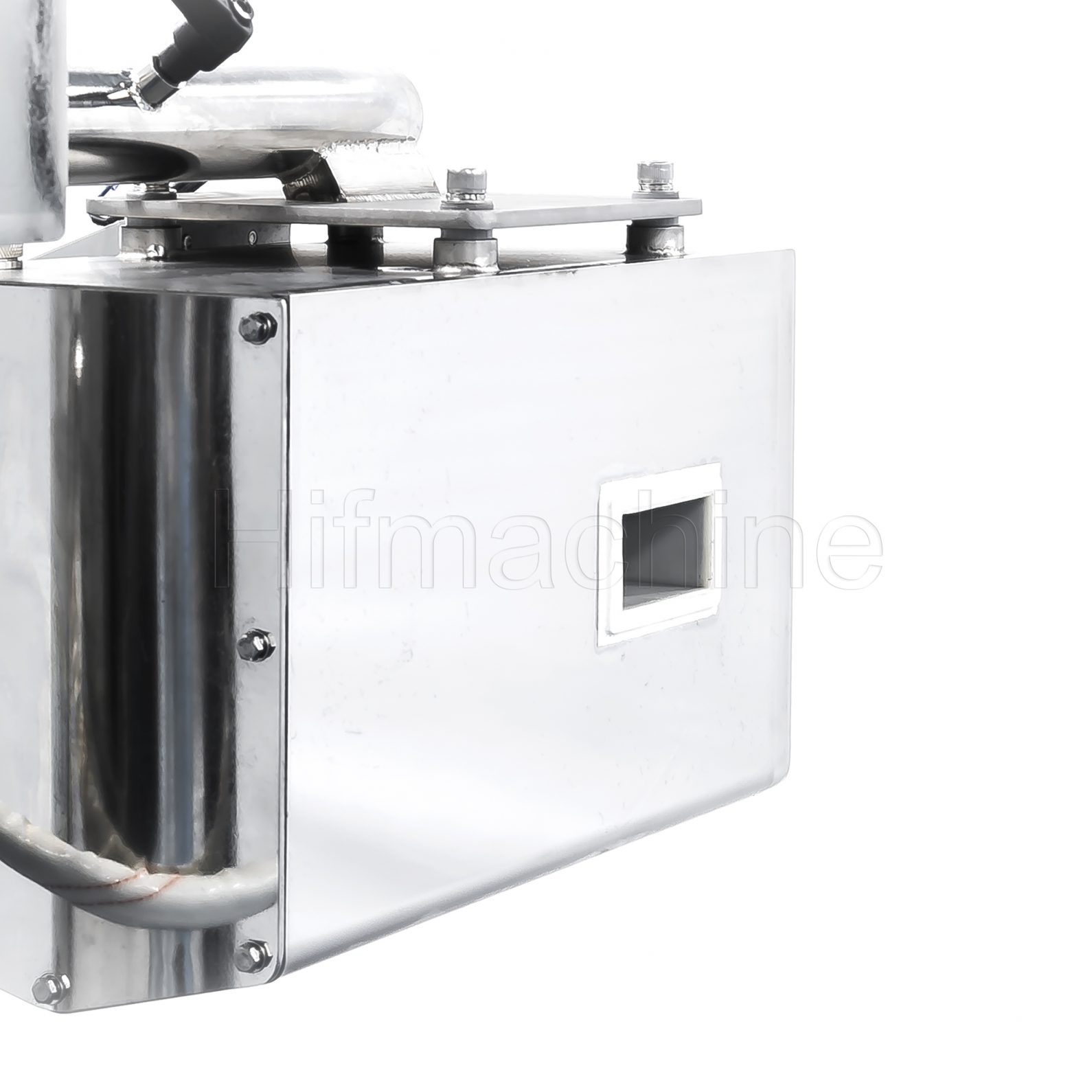

Detailed photos
Remark
- Suitable for detecting and separating magnetic and non-magnetic metals in tablets and capsules.
- It can be used with tablet press machine, capsule filling machine and tablet sieving machine, or used alone, easy to adapt to the site.

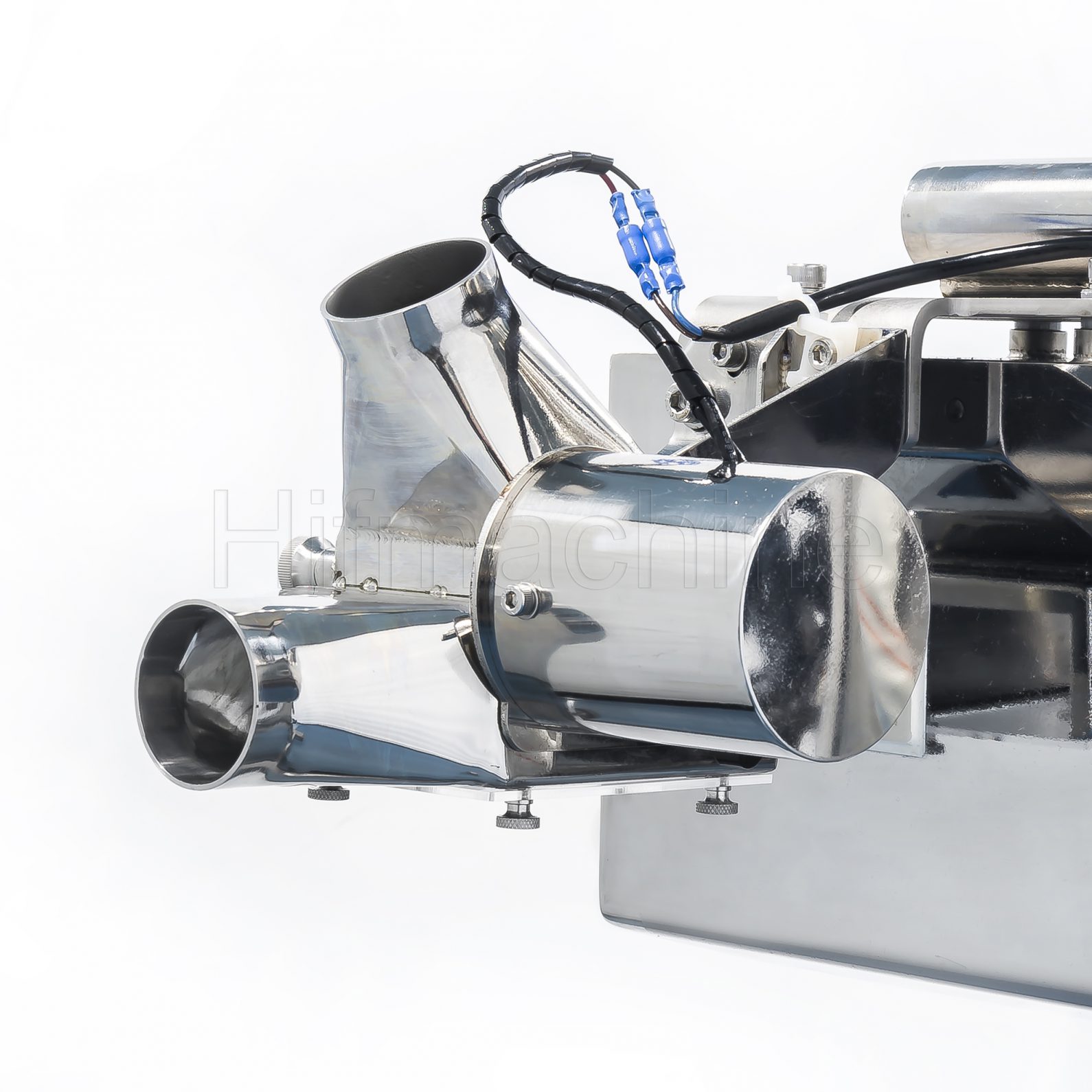

- Elimination method: minimize material loss with electromagnet control flap fast automatic elimination to keep normal production.
- The detection coil is made of stainless steel and the internal is completely sealed, for one-time pouring, permanent solid.
- Allow industrial site vibration, power supply should be separate wiring to prevent electromagnetic interference from other electrical.
- Modular structure: system control box, detection probe, eliminate structure, frame completely separated, easy replacement and maintenance.
- Use the latest microprocessor control system, with automatic learning setting function
- Meet HACCP, PDA, GMP certification requirements, comply with regulations, available certification documents and challenging test.
- Simple design, easy to clean
| Model | T68 |
|---|---|
| Capacity | 460,000 tablets/h |
| Max. sensitivity | Φ0.2 iron ball, Φ0.4 stainless steel |
| Waste rejection time: | adjustable between 0.05s and 60s |
| Sensitivity(adjustable or not) | Yes |
| Working voltage | 220V/110V, AC (+10%, -15%) |
| Weight | 34kg |
