Pharmaceutical metal detector free fall metal separator CSJ-W150/200
Pharmaceutical metal detector free fall metal separator CSJ-W150/200
The wide range of applications of metal detectors stems from their excellent performance, not only for bulk materials, but also for packaged products. It plays a key role in numerous industries, including food, medicine, plastics, chemicals, wood, textiles and more.
This equipment has excellent detection capabilities for metal impurities, whether they are magnetic or non-magnetic metals (such as iron, stainless steel, aluminum, etc.). Even if these metal impurities are hidden in product particles, they can be detected with a high degree of accuracy and Eliminate them ruthlessly by culling cells.
Companies shoulder important social responsibilities when using metal detectors. It helps implement a total quality management system (TQM) and plays an indispensable role in achieving ISO9000 international quality certification. In addition, it is also responsible for protecting subsequent machinery and equipment and ensuring product quality.

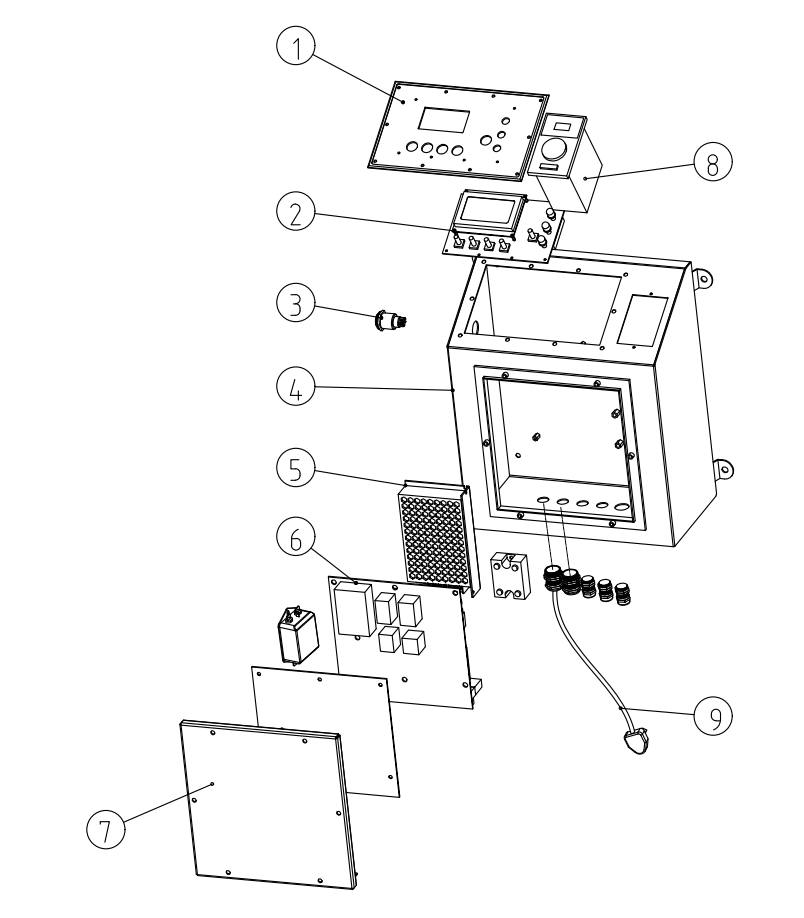

| 1.LCD screen cover | 2.Display board |
| 3.Switch | 4.Electrical control box |
| 5.Switch power supply | 6.Control board STE-M |
| 7.Electrical control box cover | 8.Motor controller |
| 9.Power wire | 10.Measurement board AWE-M |

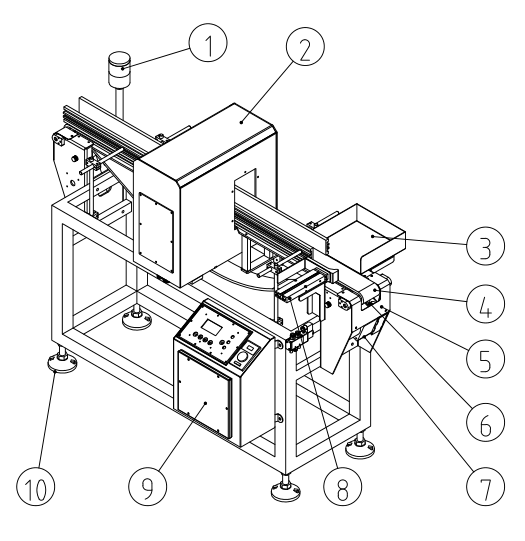

| 1.Alarm light | 2.Detection head |
| 3.Reject mechanism – temporary storage platform | 4.Chain conveyor belt |
| 5.Synchronous belt | 6.Synchronous wheel |
| 7.Motor | 8.Reject mechanism – cylinder |
| 9.Electrical control box | 10.Foot cup |
Maintenance
Before any maintenance and cleaning work, disconnect the power supply to the equipment, shut off the compressed air supply, and disconnect the air exhaust hose. Always adhere to safety precautions.
At appropriate intervals (e.g., weekly or monthly):
- Visually inspect all components disconnected from the product, such as belts, detection pipes, rejecters, drive components, etc., to ensure they are in normal condition.
- Replace worn parts to ensure the proper functioning of the equipment.
- Check all screws and nuts for tightness when necessary.
- Clean the channels regularly to ensure there are no metal impurities, as this could lead to false alarms.
Remark
- Regular inspection of the metal detector is crucial for ensuring safe operation.
- Use appropriate metal test balls to test the metal detector. If the metal detector is operating normally, it will emit a metal detection signal.
- It is recommended to perform a performance check every two weeks.
| Model | CSJ-W150/200 |
|---|---|
| Channel diameter | 200*150mm |
| Effective caliber | 120*170mm |
| Protection level | IP65 |
| Power supply requirements | Good stable voltage, power supply should be wired separately to prevent electromagnetic interference from other electrical appliances, energy consumption is 0.2 kilowatts |
| Detection accuracy | Fe 0.7mm SUS 1.0mm NonFe 0.8mm |
| Equipment net weight | 120kg |
