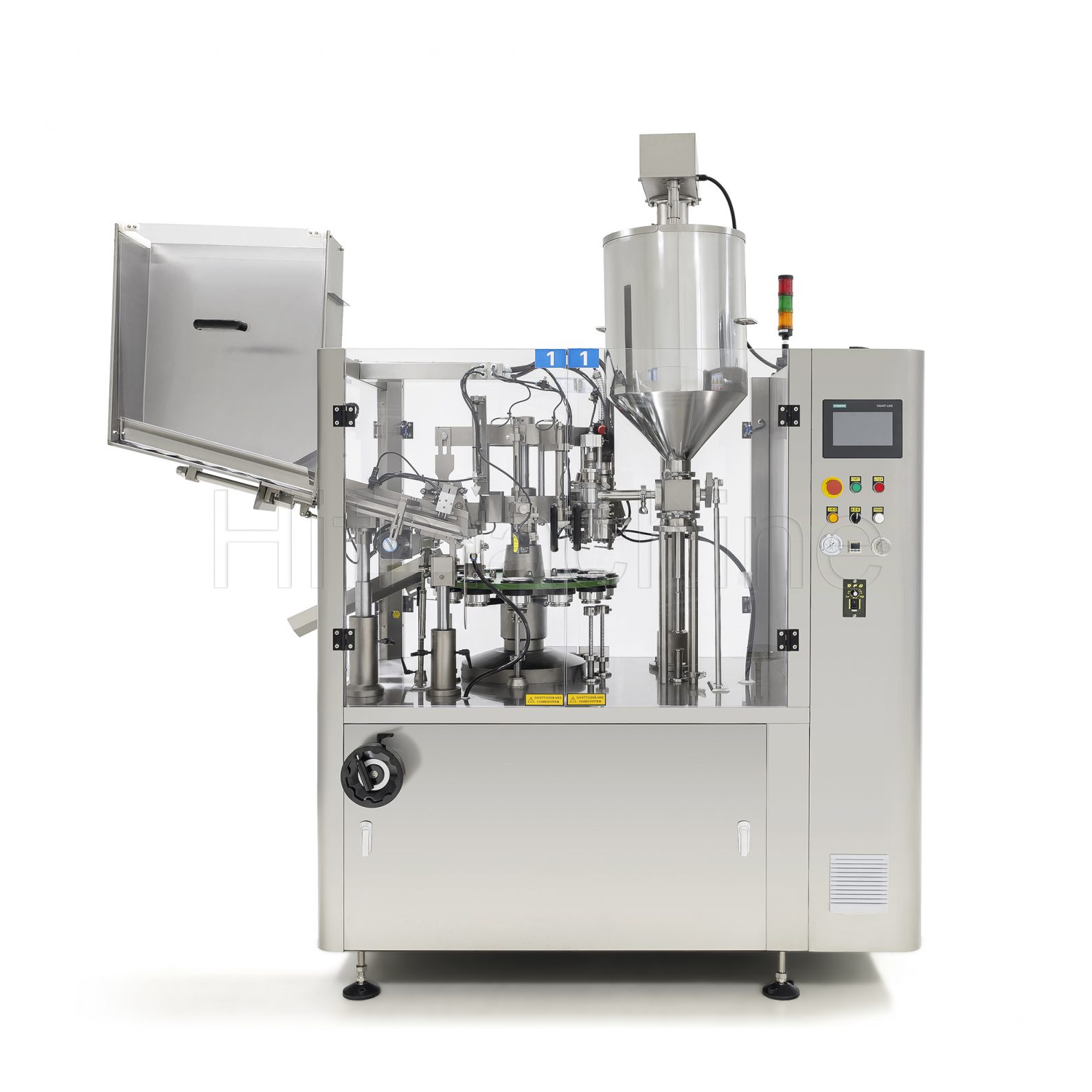

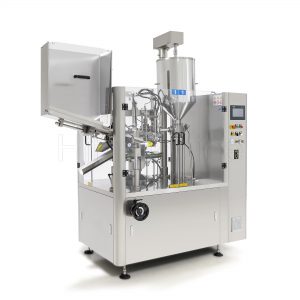

Automatic Plastic Tube Filling Sealing Machine CNF-80A
Automatic Plastic Tube Filling Sealing Machine CNF-80A
The CNF-80A Automatic Tube Filling and Sealing Machine is designed for filling and sealing plastic tubes, composite tubes, and aluminum-plastic tubes. It boasts a production speed of 50-80 tubes per minute, a filling range of 3-250 ml per tube, and a filling accuracy of ≤±1%. The machine features a compact structure, compliance with pharmaceutical machinery industry standards, and components made of high-quality materials like stainless steel and 316L stainless steel. It is suitable for industries such as pharmaceuticals, food, and daily chemicals.
Feature
- To avoid contamination and facilitate cleaning, the surface of the machine is made of stainless steel and steel (non-toxic nickel plating).
- Parts directly in contact with materials are made of 316L stainless steel, corrosion-resistant, weakly acidic, and weakly alkaline.
- The body of the machine is made of high-quality steel.
- High-quality products are selected for the machine’s connecting components.
- No filling without tubes.
- Automatic batch coding, automatic tube ejection.
- Automatic tube feeding and automatic color mark alignment.
- Automatic filling with tail-cutting function for viscous materials.
Rmark
- Adequate power supply and air pressure must be maintained for optimal performance.

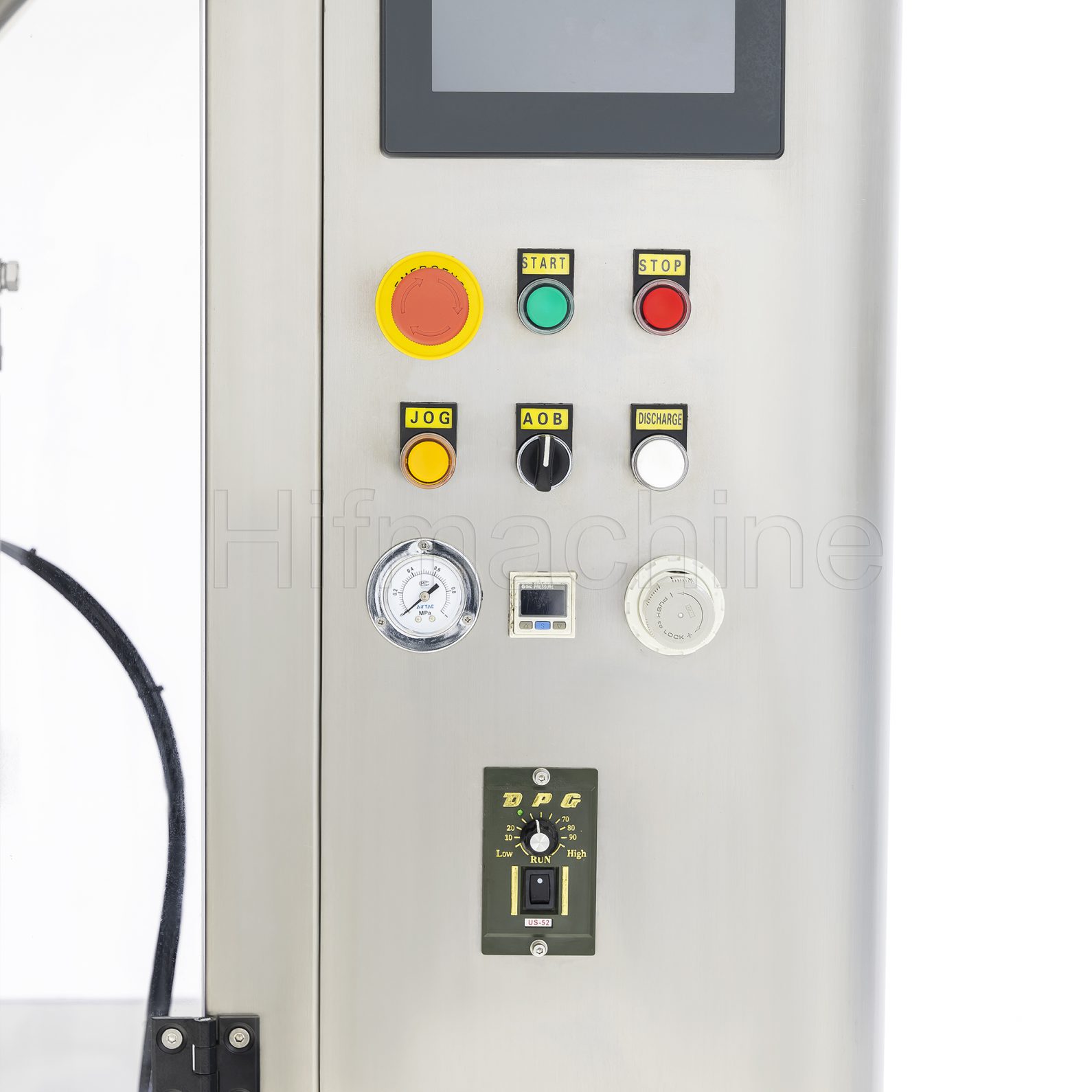

- Safety features such as emergency stop buttons, door interlock devices, and overload limit devices should be understood and utilized correctly.
- Proper adjustment of various components like the tube slot, filling nozzle, and measurement piston is crucial for efficient operation.
- Regular maintenance and cleaning of components like the material barrel, injection port, filling valve, and plunger are necessary for machine longevity and performance.
| Model | CNF-80A |
|---|---|
| Production Speed | 50-80 tubes/min |
| Filling Range | 3-250 mL/tube |
| Filling Accuracy | ≤±1% |
| Room Temperature | 18-26℃ |
| Matching Motor | 1.5 kW |
| Dimensions | 2.4×1.1×2.4 (m) |
| Weight | 1500 kg |
| Working Air Pressure | 0.5-0.7MPa |
